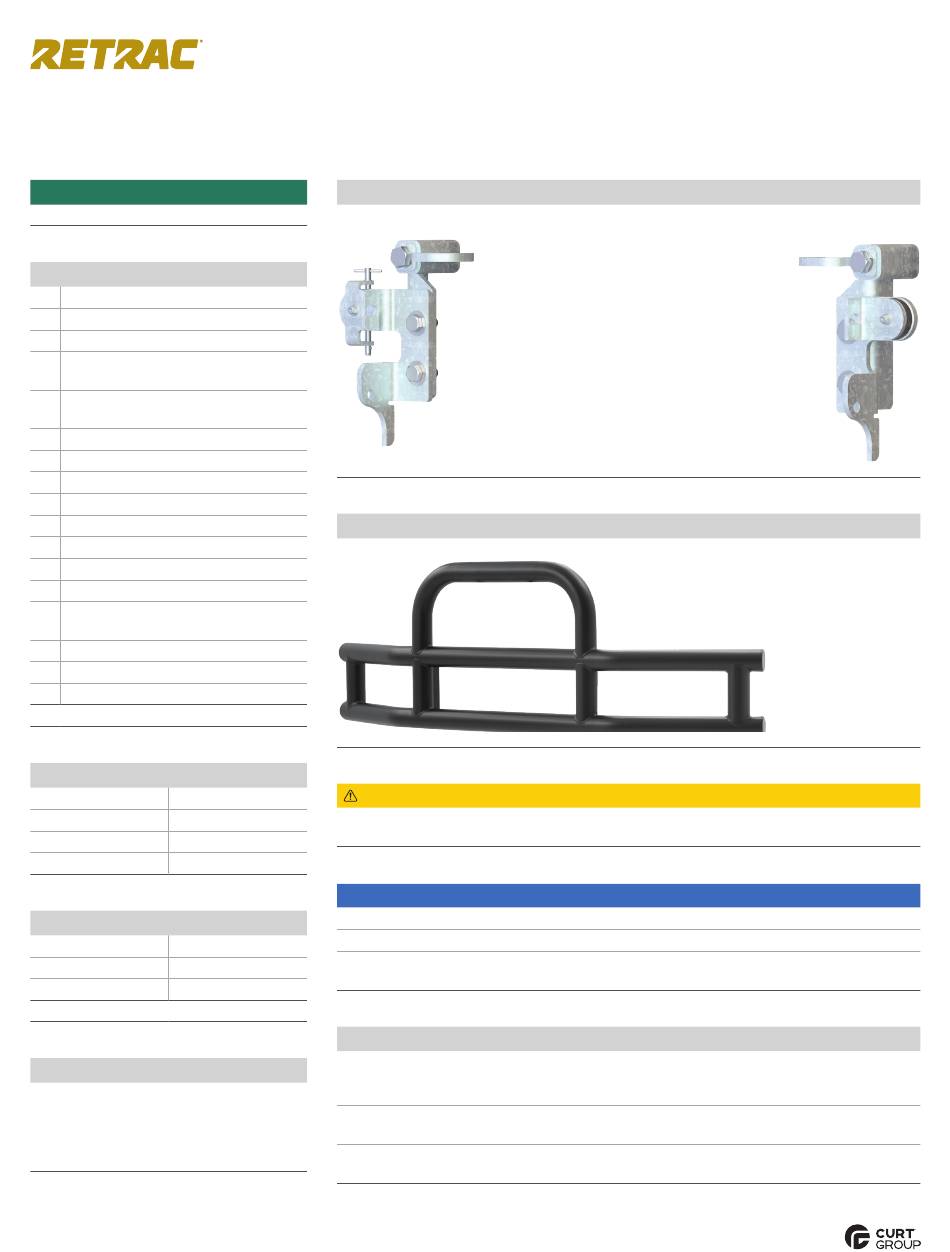

INSTALLATION MANUAL
Level of Difficulty
Easy
Parts List
1
Grille guard
1
Driver / left mounting bracket
1
Passenger / right mounting bracket
1
Driver / left adjustable
mounting bracket
1
Passenger / right
adjustable mounting bracket
2
Tow hook mounting bracket
2
Spacer, mounting bracket
2
Hex bolt, 3/4"-10 x 2"
6
Hex bolt, 5/8"-11 x 1-3/4"
2
Shoulder bolt, 5/8" x 7/8" x 1/2"-13
2
Lock washer, 3/4"
2
Flat washer, 5/8"
4
Flat washer, 9/16"
4
Belleville washer,
.63" x 1.25" x .04" x .042"
4
Flange nut, 5/8"-11
2
Nylock nut, 5/8"-11
2
Nylock nut, 1/2"-13
*Grille guard sold separately
Tools Required
Ratchet
Socket, 15/16"
Torque wrench
Socket, 1 1/8"
Wrench, 15/16"
Socket, 3/4"
Allen wrench, 5/16"
--
Torque Specifications
1/2" bolt
65 ft-lbs.
5/8" bolt
128 ft-lbs.
3/4" bolt
228 ft-lbs.
Use above torque setting unless otherwise noted
Product Registration and Warranty
CURT Group stands behind our products
with industry-leading warranties. Provide
feedback and help us to improve our
products by registering your purchase at:
warranty.curtgroup.com/surveys
RETRACMIRRORS.COM

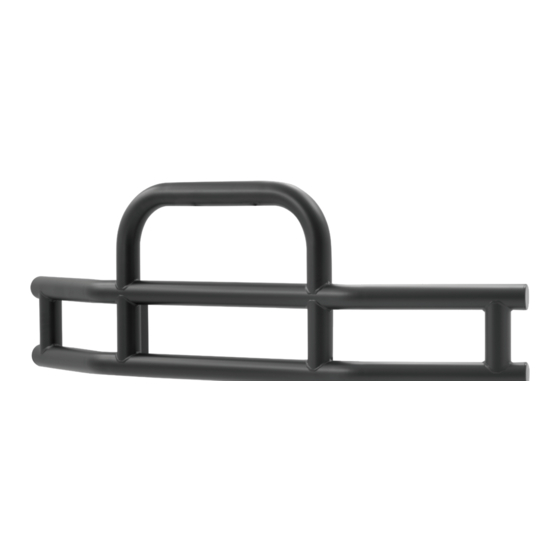

Product Photo
Tuff Guard
CAUTION
Strong magnets may produce pinch hazards and may be
harmful to pacemakers and other sensitive electronics.
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
•
PRODUCT SUPPORT: 877.287.8634
Passenger / right
mounting bracket
(sold separately)
®
•
206820-INS-RB
•
09/17/2020
Driver / left
mounting bracket
•
ECN7465
•
PAGE 1
206820
Advertisement
Table of Contents
Related Manuals for Curt Group Retrac 206820
Summary of Contents for Curt Group Retrac 206820
- Page 1 Product Registration and Warranty to add a protective layer over the finish. Do not use any type of polish or wax CURT Group stands behind our products that may contain abrasives that could damage the finish. with industry-leading warranties. Provide...
- Page 2 Step 1 Remove factory tow hook pins if installed. Insert the mounting bar into the tow hook opening and install the factory tow hook pin. Step 2 Starting on the passenger side, slide a mounting bracket over the tow hook mounting bracket and secure with a 3/4"...
- Page 3 Step 5 Use a 15/16" socket and wrench to secure the magnet bracket assemblies to the mounting brackets of the grille guard with a 5/8"–11 x 1-3/4" bolt, 5/8" flat washer and 5/8"–11 nylock nut. The safety pin bracket must be on the passenger side.
