TriStar II 3020 Scheduled Maintenance Instructions
10. Click
OK
11. A confirmation message is displayed. Click

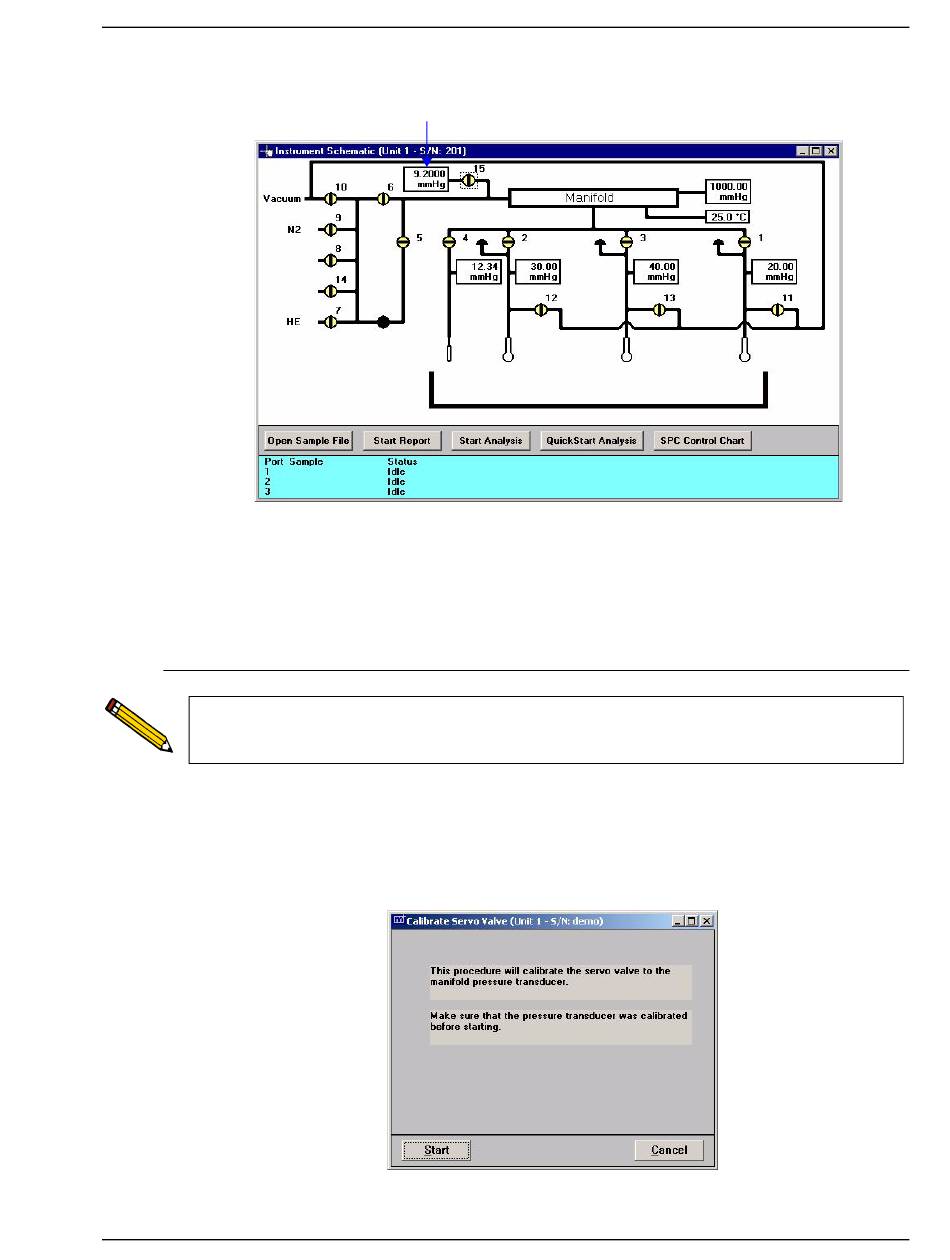

Calibrating the Servo Valve
Make sure the pressure transducer has been zeroed before performing this procedure.
1.
On the manual control screen, close valves 1, 2, and 3.
2.
Open valves 10 and 6.
3.
Select
Jun 09
10-mmHg transducer
to close the dialog.
Unit [n] > Calibration > Servo Valve
OK.
.
Calibration
21
