Removing the Printer
CAUTION!
ESD Sensitive Equipment!
Electronic boards and their components are sensitive to static electricity. Care must
be taken during all handling operations and inspections of this product in order to
ensure product integrity at all times.
Do not handle this product out of its protective enclosure while it is not used for
operations purposes unless it is otherwise protected.
Discharge your clothing before touching the assembly. Discharge tools before use.
Whenever possible, unpack or pack this product only at EOS/ESD safe workstations.
Where a safe workstation is not guaranteed, it is important for the user to be
electrically discharged before touching the product with his/her hands or tools.

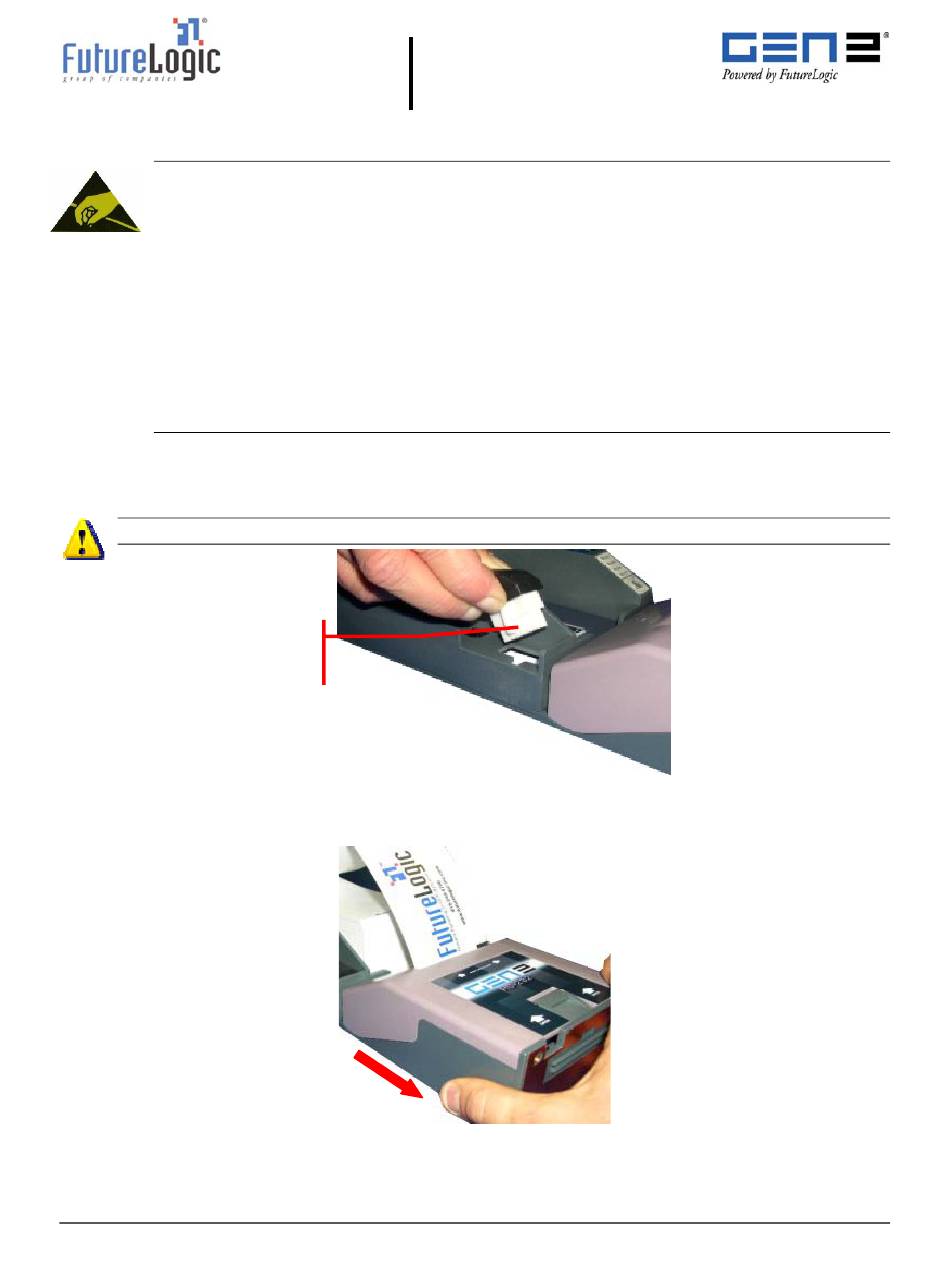

To remove the printer from the game:
1. Disconnect the power.
2. Disconnect the Coiled Cable Connector.
CAUTION! The cable is under tension.
Coiled Cable
Connector
3. Pull the printer out of the game until it locks.
© 2002 – 2007 FutureLogic, Incorporated. All Rights Reserved.
Figure 3-2
Disconnect the Coiled Cable Connector
Figure 3-3
Slide the Printer until It Locks
