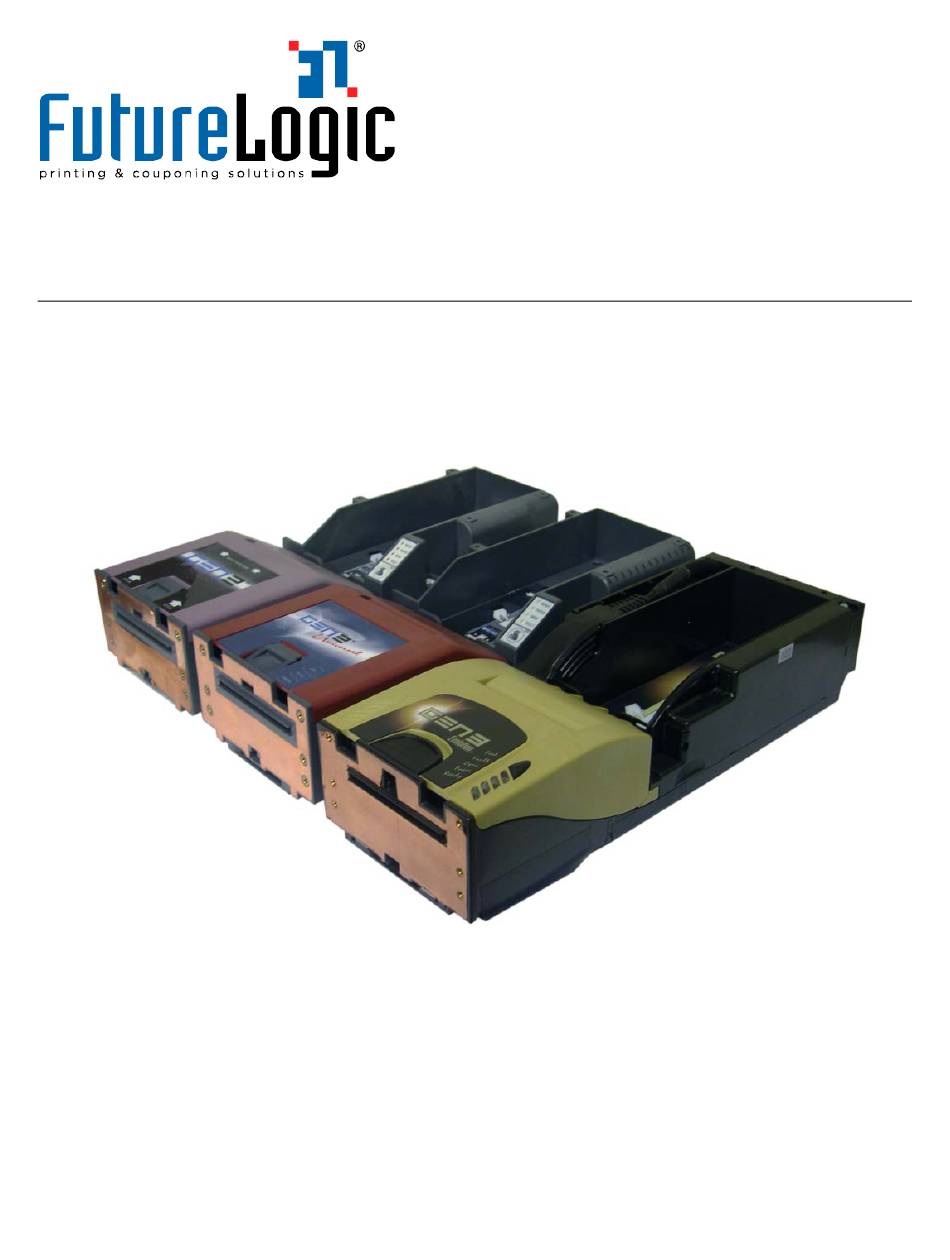

- Page 1 Printer Cleaning Guide GEN2™, GEN2 Universal™, and GEN3 Evolution® Printers GEN2: PSA-66-ST2R (RS232); PSA-66-ST2N (Netplex) GEN2 Universal: PSA-66-ST2RU (RS232/USB); PSA-66-ST2NU (Netplex/USB) GEN3 Evolution: PSA-66-ST3 English (US)
- Page 2 The information in this manual and/or software described is distributed on an “As Is” basis, without warranty. While every precaution has been taken in the preparation of this book and/or software, FutureLogic, Incorporated shall not have any liability to any person or entity with respect to any loss or damage caused or alleged to be caused directly or indirectly by the instructions and/or information contained in this manual or by the computer software and/or hardware products described in it.
-
Page 3: Table Of Contents
Cleaning and Maintenance Do’s and Don’ts ............... 2 Required Cleaning Supplies ....................2 GEN2 Universal / GEN2 Printer – Reference Points for Procedures ........3 GEN3 Evolution Printer – Reference Points for Procedures ..........3 Cleaning Card Method ...................... 4 Manual Cleaning Method .................... -
Page 4: Guide Overview
Printer Cleaning Guide (GEN2™, GEN2 Universal™, and GEN3 Evolution® Printers) 1 Guide Overview Introduction This Guide provides the procedures and instructions for cleaning FutureLogic printers as identified in the Applicability section. Intended Audience The intended audience for this Guide: Operators and Technicians. -
Page 5: Printer Cleaning
(GEN2™, GEN2 Universal™, and GEN3 Evolution® Printers) 2 Printer Cleaning Introduction This chapter covers cleaning the printer. Most illustrations show a GEN2 Universal printer. Wherever there is a difference for the GEN3 Evolution printer, additional illustrations are shown. Cleaning and Maintenance Do’s and Don’ts Do Not store spare media (tickets) stacks inside the game. -
Page 6: Gen2 Universal / Gen2 Printer - Reference Points For Procedures
Printer Cleaning Guide (GEN2™, GEN2 Universal™, and GEN3 Evolution® Printers) GEN2 Universal / GEN2 Printer – Reference Points for Procedures Pinch Roller Platen Roller Print Head Main Release Lever Presenter Rollers Printer Open Sensor Ticket Taken Sensor GEN3 Evolution Printer – Reference Points for Procedures... -
Page 7: Cleaning Card Method
Note: This custom Cleaning Card is made for the printer sensors and for feeding through the Paper Path. 5. Insert the Cleaning Card into the Paper Loading Slot. ã 2010 – 2012 FutureLogic, Incorporated. All Rights Reserved. PUBN Page 4 11/14/2012 MNL-000054 REV.D... - Page 8 The Cleaning Card advances to this position. 7. Remove the Cleaning Card. Tip: Flip over the Cleaning Card and feed through the printer for a second cleaning cycle. ã 2010 – 2012 FutureLogic, Incorporated. All Rights Reserved. PUBN Page 5 11/14/2012 MNL-000054 REV.D...
-
Page 9: Manual Cleaning Method
Paper Out (Black Index Loading Slot Mark) Sensor (not visible). The position of the compressed air nozzle is approximately 1 inch from the right side of printer. ã 2010 – 2012 FutureLogic, Incorporated. All Rights Reserved. PUBN Page 6 11/14/2012 MNL-000054 REV.D... - Page 10 13. Repeat steps 11 and 12 until both rollers Presenter Rollers are clean. 14. Use the Cleaning Wipe to wipe and clean the Upper Pinch Roller. 15. Clean the sensors. See page 8. ã 2010 – 2012 FutureLogic, Incorporated. All Rights Reserved. PUBN Page 7 11/14/2012 MNL-000054 REV.D...
-
Page 11: Sensor Cleaning (Ticket Taken, Paper Low, Lid Open)
New Style Paper Low Sensor 2. (New style Paper Low Sensor) Use the Cleaning Swab to clean the upper and lower portions. GEN3 Evolution Paper Low Sensor ã 2010 – 2012 FutureLogic, Incorporated. All Rights Reserved. PUBN Page 8 11/14/2012 MNL-000054 REV.D... - Page 12 Cleaning Wipe. Fold the Cleaning Wipe to fit; then clean all the required sensor surfaces: Ticket Taken Sensor, Printer Open Sensor, Paper Low Sensor (not shown), etc. ã 2010 – 2012 FutureLogic, Incorporated. All Rights Reserved. PUBN Page 9 11/14/2012 MNL-000054 REV.D...
- Page 13 FutureLogic, Inc. FutureLogic Europe, Ltd 425 East Colorado St., Suite 100 Unit 6, Cordwallis Industrial Estate, Clivemont Road Glendale, CA 91205 Maidenhead SL6 7BU United Kingdom Phone 818.244.4700 Tel. +44 (0) 1628 760 080 Fax 818.244.4764 Fax. +44 (0) 1628 760 089 www.futurelogic-inc.com...
