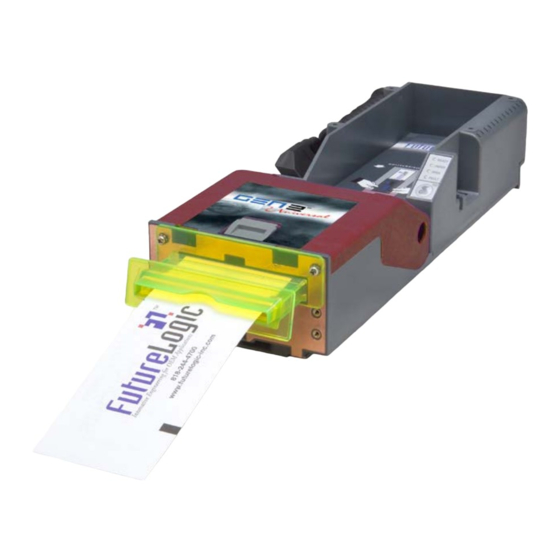

Operators and Technicians Manual
GEN2 Universal™ Printer
PSA-66-ST2RU (RS232/USB)
While PSA-66-ST2 refers to all models of the printer, this manual is primarily for the RS232/USB interface of
the GEN2 Universal printer.
English (US)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gen2 Universal PSA-66-ST2RU and is the answer not in the manual?

Questions and answers

Related Manuals for FutureLogic Gen2 Universal PSA-66-ST2RU

Summary of Contents for FutureLogic Gen2 Universal PSA-66-ST2RU

  • Page 1 Operators and Technicians Manual GEN2 Universal™ Printer PSA-66-ST2RU (RS232/USB) While PSA-66-ST2 refers to all models of the printer, this manual is primarily for the RS232/USB interface of the GEN2 Universal printer. English (US)
  • Page 2 ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. TCL Printer Language ã 1991 – 2013 FutureLogic, Incorporated. All Rights Reserved. This work is registered with the United States Copyright Office. TCL Printer Language is a proprietary, copyrighted language developed by FutureLogic, Incorporated for exclusive use with its printer products.

  • Page 3: Table Of Contents

    Appendix B Paper Specifications ................20 Appendix C Part Numbers – Printer/Spares ............21 Appendix D Schematics................... 25 Appendix E Regulatory & Compliance ..............31 Index .......................... 32 ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page i 04/29/2013 MNL-000032 REV.D...
  • Page 4 Table 5-8 Evaluation Cable DB9 RS232 Port Pin-outs............. 16 Table 5-9 GDS Adaptor Cable Connectors ..............16 Table 5-10 GDS Adaptor Cable Assembly ................. 17 ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page ii 04/29/2013 MNL-000032 REV.D...

  • Page 5: Manual Overview

    This document uses bold text to identify a field, a command selection, and an option selection. Button This document uses button text to identify a button to press. For example, Click the FEED button. ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 1 04/29/2013 MNL-000032 REV.D...

  • Page 6: Product Overview

    USB 2.0 Full Speed (Future GSA Compliant™, IGT Compliant) · RS232 Port (Backward Compatible) Warranty Information Each printer has a two-year warranty as per the manufacturer’s written warranty. ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 2 04/29/2013 MNL-000032 REV.D...

  • Page 7: Operator Interface

    The following figure illustrates the location of these indicators and controls. Status Lights and Keypad with FEED button Bezel Light Figure 3-1 Operator Indicators and Controls ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 3 04/29/2013 MNL-000032 REV.D...

  • Page 8: Keypad Status Light

    Drawer Open The Drawer Open sensor is located in the paper well. It detects when the printer is open. ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 4 04/29/2013 MNL-000032 REV.D...

  • Page 9: Printer Errors

    Paper Tray. Tip: To prevent a new paper stack from sticking together, fan out the paper after you take off the band. ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 5 04/29/2013 MNL-000032 REV.D...

  • Page 10: Feeding Paper

    To feed paper into the printer: Press the FEED button. · Additionally, press the FEED button to advance the paper to the top of the next form. ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 6 04/29/2013 MNL-000032 REV.D...

  • Page 11: Performing A Self Test

    Do not allow a screwdriver or other probing object to come in contact with the printer. This can cause permanent damage to the printer. To clear a paper jam: 1. Remove the paper from the printer. Figure 3-5 Remove the Paper ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 7 04/29/2013 MNL-000032 REV.D...

  • Page 12: Cleaning The Print Head

    5. Once you clear the jam, reverse these steps to return the printer to a ready state. 6. Load the paper. Cleaning the Print Head See MNL-000054, Printer Cleaning Guide for details. ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 8 04/29/2013 MNL-000032 REV.D...

  • Page 13: Printer Service

    Ticket Output Ground Screw Copper Grounding Clips Figure 4-1 Ground Screw and Copper Grounding Clips Location ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 9 04/29/2013 MNL-000032 REV.D...

  • Page 14: Removing The Printer

    Disconnect the Coiled Cable Connector 3. Slide the printer out until it stops in the stationary module. Figure 4-3 Slide the Printer until It Locks ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 10 04/29/2013 MNL-000032 REV.D...

  • Page 15: Figure 4-4 Remove The Paper

    After removing the printer, do not slide the printer on a tabletop or other surface. Doing so will cause damage to the copper grounding clips on the bottom of the printer. ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 11 04/29/2013...

  • Page 16: Ports And Cables

    25VDC port capable of driving up to a maximum 1.5A. Table 5-1 Front Bezel LED Control Port Pin-outs Function Switched 25VDC, 100mA Min BGND Frame (Chassis) Ground ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 12 04/29/2013 MNL-000032 REV.D...

  • Page 17: Rs232/Usb Interface Cable

    Bezel LED Control Port Connector: Molex Mini-Fit Jr. 39-01-4037 Mate: Molex Mini-Fit Jr. 39-01-4031 RS232/USB 14 Pin Cable P/N 150-00176-100 Figure 5-2 RS232/USB Interface Cable ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 13 04/29/2013 MNL-000032 REV.D...

  • Page 18: Figure 5-3 Rs232/Usb Interface Cable, Auxiliary Communications

    Please contact FutureLogic for details. Auxiliary COMM Port Connector: Molex Mini-Fit Jr. 39-01-3049 Mate: Molex Mini-Fit Jr. 39-01-3042 Function no connect Figure 5-3 RS232/USB Interface Cable, Auxiliary Communications ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 14 04/29/2013 MNL-000032 REV.D...

  • Page 19: Rs232 Evaluation Cable

    Evaluation Cable Bezel Port Pin-outs Function Modulated +24VDC No connect Note: For Bezel LED Port on cable, no Intermitted or in rush current exceeding 1.5A is allowed. ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 15 04/29/2013 MNL-000032 REV.D...

  • Page 20: Gds Adaptor Cable

    GDS Adaptor Cable Connectors From Connector To Connector Color Length J1-5 J2-3 * Black 3.0” ±0.25” J1-6 J2-4 3.0” ±0.25” * Use Grounding Terminal (Item 5) for J2-3. ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 16 04/29/2013 MNL-000032 REV.D...

  • Page 21: Firmware Upload Port

    Then plug an appropriate upgrade cable into the printer. This connection may be made while the power is on. Firmware Upload Port Connector: Molex 6717101-000 Mate: USB B Plug Figure 5-6 Firmware Upload Port ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 17 04/29/2013 MNL-000032 REV.D...

  • Page 22: Appendix A Technical Specifications

    Red on Black and Blue on Black are available. Other colors can be supported as the print media becomes available. Color selection is controlled through the TCL™ language. ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 18 04/29/2013 MNL-000032 REV.D...
  • Page 23 Maintenance Annual Print Head Cleaning Required Print Head Life 100km Min. (656,000 Tickets Based on US Currency Size) Certifications CE Certified, ISO 9001, RoHS, UL ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 19 04/29/2013 MNL-000032 REV.D...

  • Page 24: Appendix B Paper Specifications

    Ticket, 300STK, 65X156, 5M, Fanfold Ticket, 600STK, 65X156, 5M, Fanfold Ticket, 900STK, 65X156, 5M, Fanfold Note: Paper width is +0mm, –1mm. Figure B-1 Ticket Dimensional Specification ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 20 04/29/2013 MNL-000032 REV.D...

  • Page 25: Appendix C Part Numbers - Printer/Spares

    Description 370-00015-100 Base RoHS 370-00170-100 Bottom Chute RoHS 150-00176-100 Cable, USB-RS232, 14 pin RoHS 150-00013-100 Cable, Evaluation, RS232, 14 pin RoHS 150-00164-100 Cable, GDS Adaptor ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 21 04/29/2013 MNL-000032 REV.D...
  • Page 26 Hinge Pin RoHS 500-00005-100 Keypad Membrane RoHS 362-00047-107 Lid, Label RoHS 370-00020-100 Lid, Top, Red RoHS 370-00022-100 Locker RoHS 370-00023-100 Locker Base RoHS 370-00016-100 Main Bracket RoHS ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 22 04/29/2013 MNL-000032 REV.D...
  • Page 27 Print Mech, F03-66 RoHS 310-00112-100 Release Bar Bracket RoHS 310-00115-100 Release Bar Guide RoHS 460-00006-100 Roller Idler RoHS 473-00078-100 Screws (100 pack) RoHS 485-00008-100 Spring (50 pack) RoHS ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 23 04/29/2013 MNL-000032 REV.D...
  • Page 28 Star Washers (100 pack) RoHS 320-00224-101 Ticket Extension Tray, 600 Tickets RoHS 320-00224-102 Ticket Extension Tray, 900 Tickets RoHS 370-00019-100 Top Presenter RoHS 370-00291-100 Tray, Paper RoHS ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 24 04/29/2013 MNL-000032 REV.D...

  • Page 29: Appendix D Schematics

    Note: The information contained in the following schematics is copyrighted information and is the exclusive intellectual property of FutureLogic, Incorporated. All rights are reserved. No transfer or grant of rights is created by the publication of this information.
  • Page 30 Operators and Technicians Manual ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 26 04/29/2013 MNL-000032 REV.D...
  • Page 31 Operators and Technicians Manual ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 27 04/29/2013 MNL-000032 REV.D...
  • Page 32 Operators and Technicians Manual ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 28 04/29/2013 MNL-000032 REV.D...
  • Page 33 Operators and Technicians Manual ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 29 04/29/2013 MNL-000032 REV.D...
  • Page 34 Operators and Technicians Manual ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 30 04/29/2013 MNL-000032 REV.D...

  • Page 35: Appendix E Regulatory & Compliance

    (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 31 04/29/2013 MNL-000032 REV.D...

  • Page 36: Index

    Printer Open, 5 LEDs, 4 TCL Editor, 2 ticket dimensional specifications, 20 paper capacity, 2 warranty information, 2 feeding, 6 specifications, 20 paper jam, clearing, 7 ã 2006 – 2013 FutureLogic, Incorporated. All Rights Reserved. MNL Page 32 04/29/2013 MNL-000032 REV.D...
  • Page 37 FutureLogic, Inc. 425 East Colorado Street • Suite 100 Glendale, CA 91205 USA Phone 818.244.4700 • Fax 818.244.4764 www.futurelogic-inc.com info@futurelogic-inc.com •...
