Printer Service; Introduction; Figure 3-1 Ground Screw And Copper Grounding Clips Location - FutureLogic PSA-66-ST2 Technician Manual

3 Printer Service

Introduction

This chapter provides instructions on how to remove the printer to service it outside of
the game.
Note: While the printer is hot-connectable, it is still a good maintenance procedure to
turn off the power.
Important Information!
Do not remove the ground screw in the rail as it will release the internal nut!
After removing the printer, do not slide the unit on a tabletop or other surface. Doing so
will cause damage to the copper grounding clips on the bottom of the unit.
Ticket
Output
Ground Screw
© 2002 – 2007 FutureLogic, Incorporated. All Rights Reserved.
Copper Grounding Clips

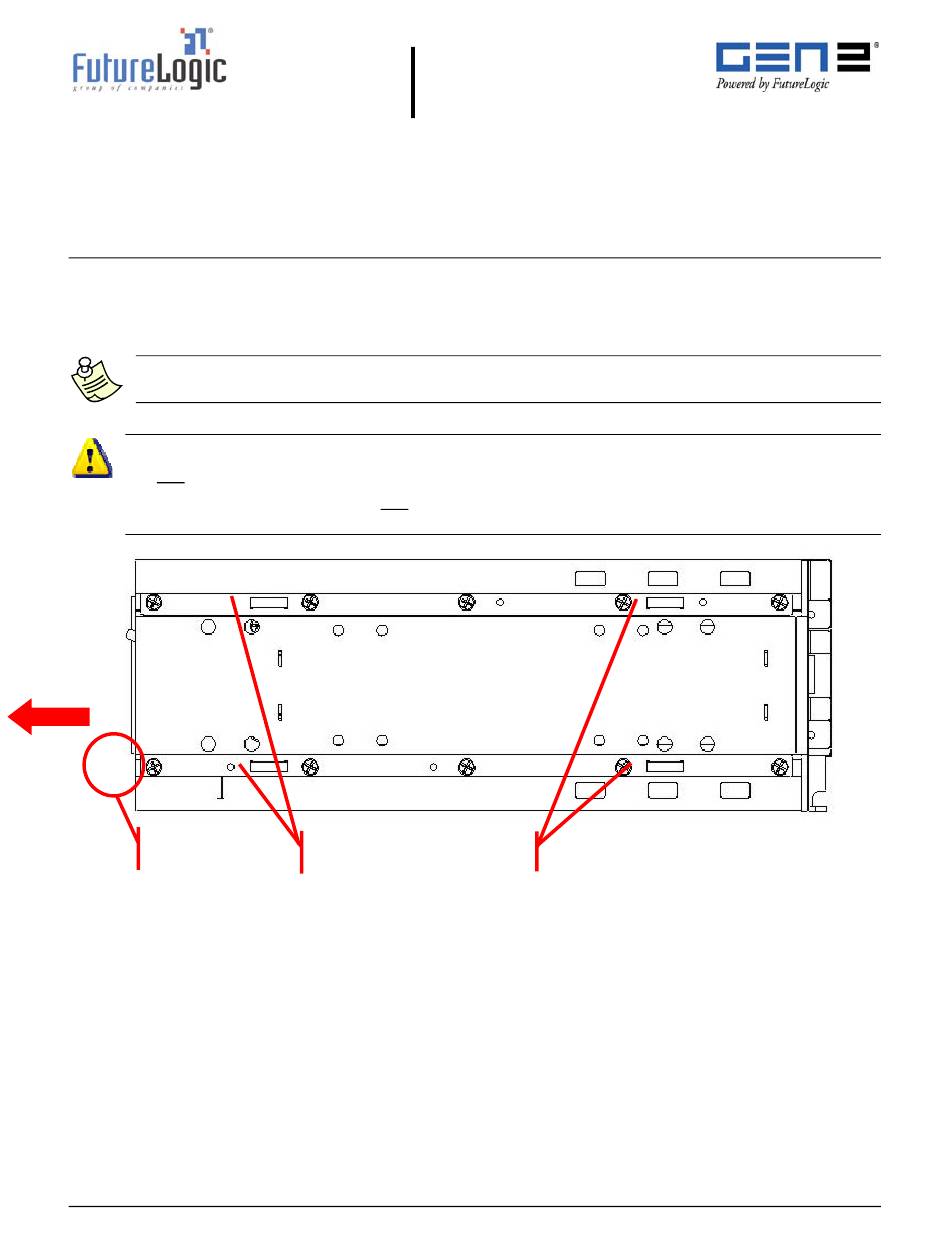

Figure 3-1 Ground Screw and Copper Grounding Clips Location
Operators and Technicians Manual
