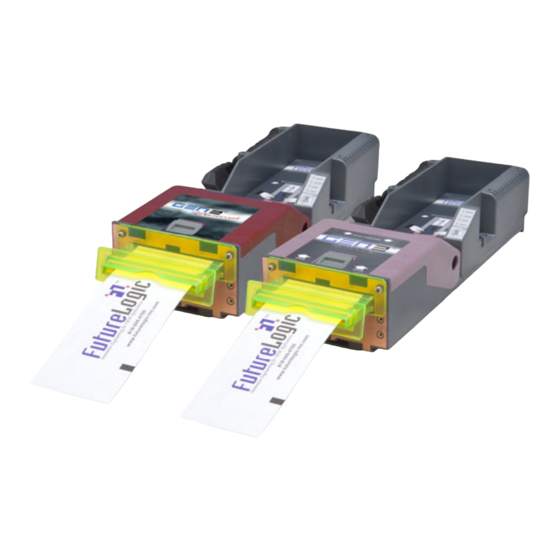

- Page 1 Printer Cleaning Guide GEN2™ and GEN2 Universal™ Printers GEN2: PSA-66-ST2R (RS232); PSA-66-ST2N (Netplex) GEN2 Universal: PSA-66-ST2RU (RS232/USB); PSA-66-ST2NU (Netplex/USB) This document is uncontrolled when printed.
- Page 2 While every precaution has been taken in the preparation of this book and/or software, FutureLogic, Incorporated shall not have any liability to any person or entity with respect to any loss or damage caused or alleged to be caused directly or indirectly by the instructions and/or information contained in this manual or by the computer software and/or hardware products described in it.
-
Page 3: Table Of Contents
Routine Cleaning Method ....................2 Manual Cleaning (Print Head, Platen Roller, Presenter Roller)..........3 Alternative Cleaning Card Method ..................4 Sensor Cleaning (Ticket Taken, Lid Open, Paper Low)............6 2010 FutureLogic, Incorporated. All Rights Reserved. PUBN Page i of 10 08/19/2010 MNL-000054 REV.X01... -
Page 4: Printer Cleaning Guide
Use the following reference points to aid you in identifying component location. Platen Roller Print Head Platen Release Lever Printer Open Presenter Rollers Ticket Taken Sensor 2010 FutureLogic, Incorporated. All Rights Reserved. PUBN Page 1 of 10 08/19/2010 MNL-000054 REV.X01... -
Page 5: Routine Cleaning Method
Paper Out (Black Index Mark) sensor (not visible). The position of the compressed air nozzle is approximately 1 inch from the right side of printer. 2010 FutureLogic, Incorporated. All Rights Reserved. PUBN Page 2 of 10 08/19/2010 MNL-000054 REV.X01... -
Page 6: Manual Cleaning (Print Head, Platen Roller, Presenter Roller)
7. Wipe the Presenter Rollers with the Cleaning Cloth. 8. Rotate the Presenter Rollers and repeat step 7 until both rollers are clean. Presenter Rollers 2010 FutureLogic, Incorporated. All Rights Reserved. PUBN Page 3 of 10 08/19/2010 MNL-000054 REV.X01... -
Page 7: Alternative Cleaning Card Method
2. Remove the Cleaning Card from the packaging. 3. Load the Cleaning Card into the Paper Loading Slot. The printer will feed the Cleaning Card to the loading point. 2010 FutureLogic, Incorporated. All Rights Reserved. PUBN Page 4 of 10 08/19/2010 MNL-000054 REV.X01... - Page 8 8. Dampen a lint-free Cleaning Cloth with 99% I.P.A. 9. Wipe the Presenter Rollers with the Cleaning Cloth. 10. Rotate the Presenter Rollers and repeat step 9 until both rollers are clean. 2010 FutureLogic, Incorporated. All Rights Reserved. PUBN Page 5 of 10 08/19/2010 MNL-000054 REV.X01...
-
Page 9: Sensor Cleaning (Ticket Taken, Lid Open, Paper Low)
3. Clean the Printer Open Sensor. Note: Allow all cleaned areas to dry prior to operation. If faults still persist, contact technical support at SlotTechSupport@futurelogicinc.com 2010 FutureLogic, Incorporated. All Rights Reserved. PUBN Page 6 of 10 08/19/2010 MNL-000054 REV.X01... - Page 10 FutureLogic, Inc. FutureLogic Europe, Ltd 425 East Colorado St., Suite 100 Unit 6, Cordwallis Industrial Estate, Clivemont Road Glendale, CA 91205 Maidenhead SL6 7BU United Kingdom Phone 818.244.4700 Tel. +44 (0) 1628 760 080 Fax 818.244.4764 Fax. +44 (0) 1628 760 089 www.futurelogic-inc.com...
