7.2. CONTROL MENU

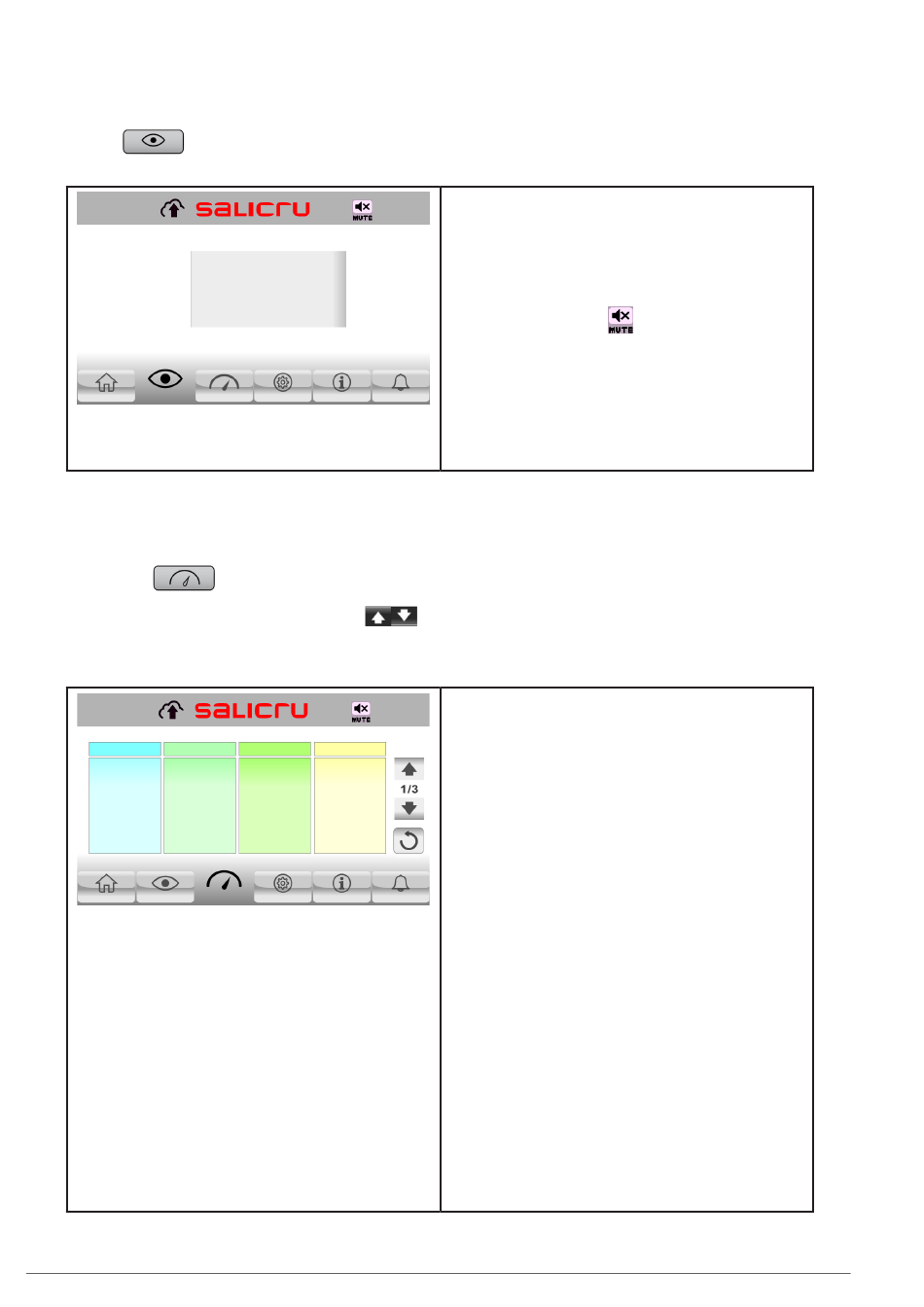

Press the icon to enter the "CONTROL" menu. The
following operations can be carried out from this menu:
10 kVA
Bypass Mode
UPS ON/OFF
BATT TEST
MUTE ALL
ON/OFF CHARGER
EXIT PARALLEL
HOME CONTROL
Tab. 3. Screens and contents of the Measurements menu
on the control panel.

7.3. MEASUREMENTS MENU

By pressing the
access the set of measurements taken by the unit itself, which
are accessible via the control panel. Using the arrows
you can scroll through the different measurements available.
The following table lists all available measurements.
10 kVA
Line Mode
LINE VOL.
INVERTER VOL.
231. 8 V
230. 8 V
R:
233. 5 V
233. 5 V
S:
232. 8 V
229. 5 V
T:
405. 8 V
RS: 389. 8 V
407. 5 V
398. 5 V
ST:
405. 8 V
398. 8 V
RT:
50. 0 Hz
50. 0 Hz
HOME CONTROL
Tab. 4. Screens and contents of the Measurements menu.
USER MANUAL
2020.11.04
11:56:35
MEASURE SETTING INFO
icon in the Measurements menu, you
2020.11.04
11:56:35
BYPASS VOL. OUTPUT VOL.
231. 8 V 230. 8 V
233. 5 V 233. 5 V
232. 8 V 232. 8 V
405. 8 V 398. 8 V
407. 5 V 398. 5 V
405. 8 V 398. 8 V
50. 0 Hz 50. 0 Hz
MEASURE SETTING INFO
UPS ON/OFF. It lets you turn the inverter on and off, switch
•
to bypass or standby mode, according to the configuration, to
online mode, or vice versa.
BATT TEST. It lets you carry out a battery test.
•
MUTE ALL. It lets you activate/deactivate the acoustic
•
alarm.
When it is activated, the
of the display, next to the date/time.
ON/OFF CHARGER. It lets you turn the battery charger on
•
and off.
DATALOG
EXIT PARALLEL. It lets you remove the unit in question from
•
the parallel system.
By pressing on each function, a confirmation message for the
action to be taken appears.
Screen 1 measurements:
Input: voltages between phases and neutral, between phases
•
and frequency.
Inverter: voltages between phases and neutral, between phases
•
and frequency.
Bypass: voltages between phases and neutral, between phases
•
and frequency.
Output: voltages between phases and neutral, between phases
•
and frequency.
Screen 2 measurements:
Output power per phase in W and VA.
•
DATALOG Output power per phase in W (%) and VA (%).
•
Total output power in W (%) and VA (%).
•
Autonomy.
•
Positive and negative battery voltage.
•
Positive and negative bus voltage.
•
Battery charge current.
•
Battery discharge current.
•
PFC, inverter and bypass temperatures.
•
Screen 3 measurements:
Input power per phase in W and VA.
•
Input power per phase in W (%) and VA (%).
•
Total input power in W (%) and VA (%).
•
Input current per phase.
•
Input power factor per phase.
•
Output current per phase.
•
Output power factor per phase.
•
icon appears in the upper right
