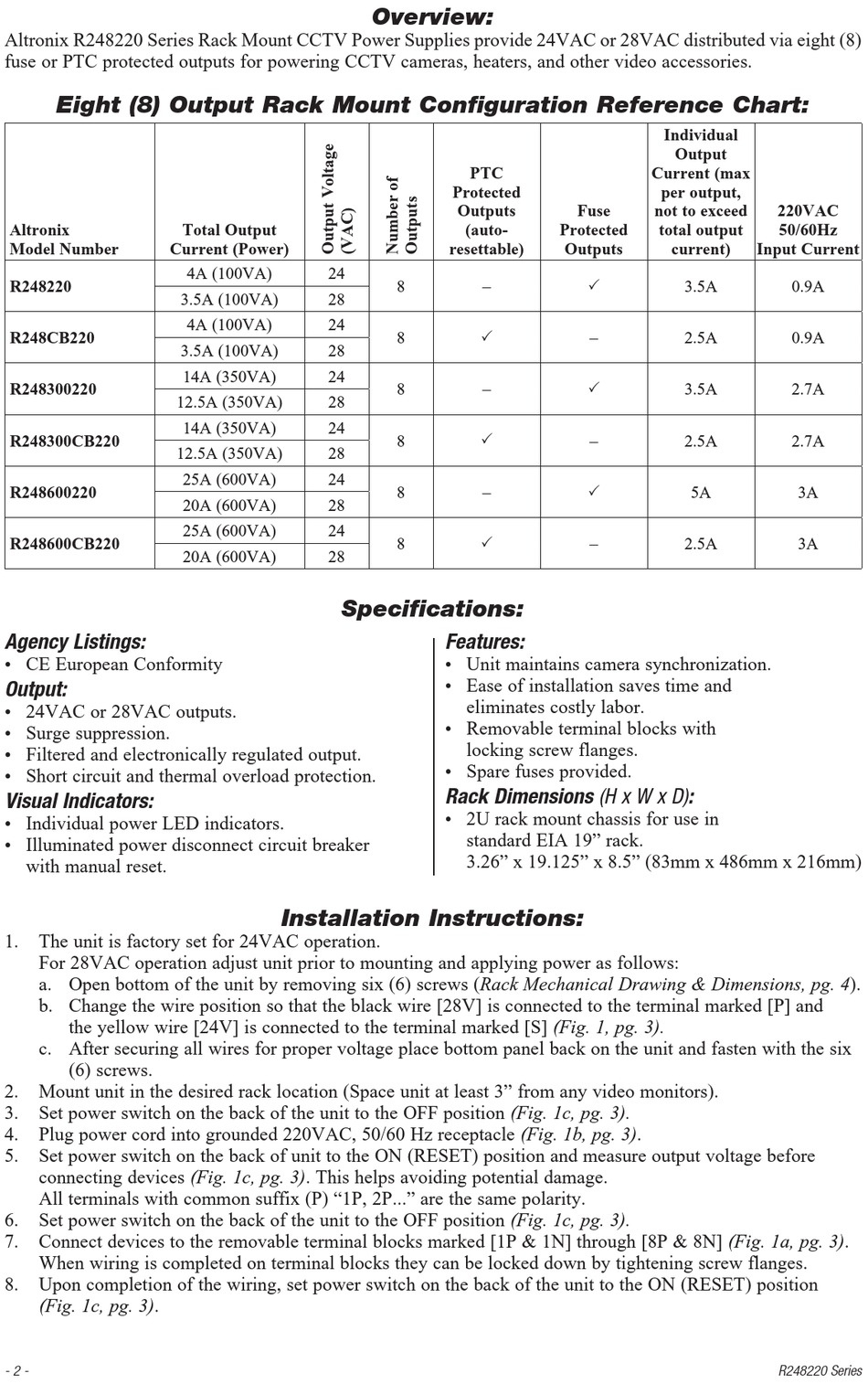

Altronix R248220 Series Installation Manual page 2

Altronix R248220 Series Rack Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via eight (8)
fuse or PTC protected outputs for powering CCTV cameras, heaters, and other video accessories.
Eight (8) Output Rack Mount Configuration Reference Chart:
Altronix
Model Number
R248220
R248CB220
R248300220
R248300CB220
R248600220
R248600CB220
Agency Listings:
• CE European Conformity
Output:
• 24VAC or 28VAC outputs.
• Surge suppression.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
Visual Indicators:
• Individual power LED indicators.
• Illuminated power disconnect circuit breaker
with manual reset.
1. The unit is factory set for 24VAC operation.
For 28VAC operation adjust unit prior to mounting and applying power as follows:
a. Open bottom of the unit by removing six (6) screws (Rack Mechanical Drawing & Dimensions, pg. 4).
b. Change the wire position so that the black wire [28V] is connected to the terminal marked [P] and
the yellow wire [24V] is connected to the terminal marked [S] (Fig. 1, pg. 3).
c. After securing all wires for proper voltage place bottom panel back on the unit and fasten with the six
(6) screws.
2. Mount unit in the desired rack location (Space unit at least 3" from any video monitors).
3. Set power switch on the back of the unit to the OFF position (Fig. 1c, pg. 3).
4. Plug power cord into grounded 220VAC, 50/60 Hz receptacle (Fig. 1b, pg. 3).
5. Set power switch on the back of unit to the ON (RESET) position and measure output voltage before
connecting devices (Fig. 1c, pg. 3). This helps avoiding potential damage.
All terminals with common suffix (P) "1P, 2P..." are the same polarity.
6. Set power switch on the back of the unit to the OFF position (Fig. 1c, pg. 3).
7. Connect devices to the removable terminal blocks marked [1P & 1N] through [8P & 8N] (Fig. 1a, pg. 3).
When wiring is completed on terminal blocks they can be locked down by tightening screw flanges.
8. Upon completion of the wiring, set power switch on the back of the unit to the ON (RESET) position
(Fig. 1c, pg. 3).
- 2 -
Total Output
Current (Power)
4A (100VA) 24
3.5A (100VA) 28
4A (100VA) 24
3.5A (100VA) 28
14A (350VA) 24
12.5A (350VA) 28
14A (350VA) 24
12.5A (350VA) 28
25A (600VA) 24
20A (600VA) 28
25A (600VA) 24
20A (600VA) 28
Installation Instructions:
Overview:
PTC
Protected
Outputs
(auto-
resettable)
8 –
8 P
8 –
8
P
8 –
8
P
Specifications:
Features:
• Unit maintains camera synchronization.
• Ease of installation saves time and
eliminates costly labor.
• Removable terminal blocks with
locking screw flanges.
• Spare fuses provided.
Rack Dimensions (H x W x D):
• 2U rack mount chassis for use in
standard EIA 19" rack.
3.26" x 19.125" x 8.5" (83mm x 486mm x 216mm)
Individual
Output
Current (max
per output,
Fuse not to exceed
Protected
total output
Outputs current)
P 3.5A
– 2.5A
3.5A
P
– 2.5A
P 5A
– 2.5A
220VAC
50/60Hz
Input Current
0.9A
0.9A
2.7A
2.7A
3A
3A
