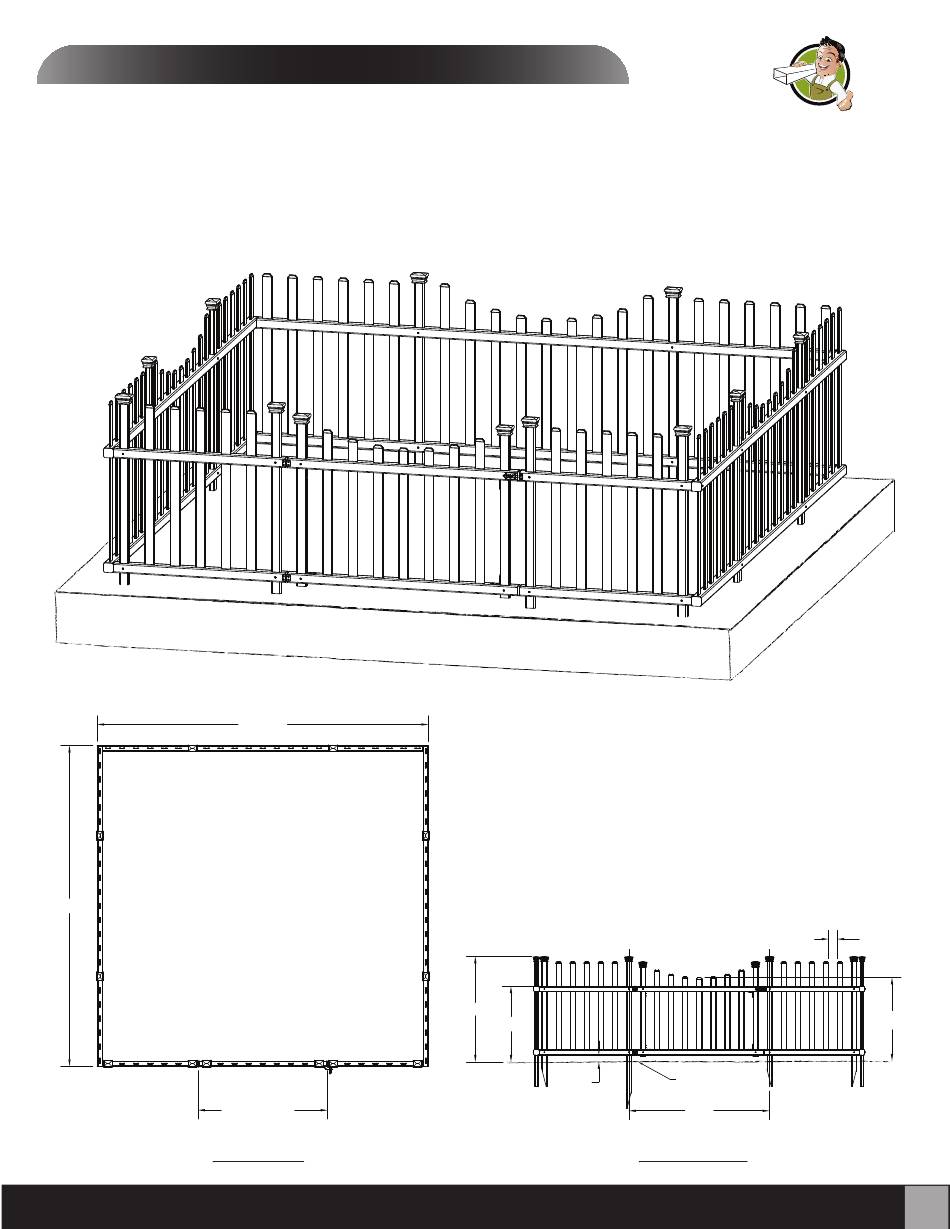

A S S E M B LY I N S T R U C T I O N S

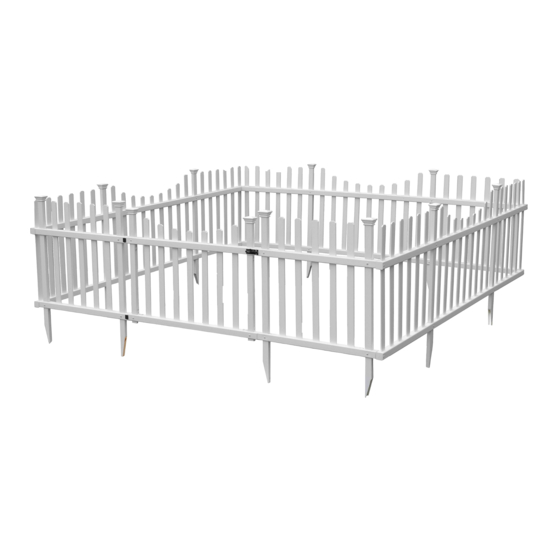

Zippity Pet or Garden Enclosure Kit
Zippity
(8' x 8' x 30"H)
NO DIG GARDEN FENCE & SCREENS
Assembly Time ... 3 to 4 Hours
Installation Time ... 2 to 3 Hours
94 1/8 in
91 1/8 in
2 1/2 in
30 in
24 in
21 1/2 in
Ground
2 in
36 7/8 in
40 in
Gate Opening
Top View
Front View
Ver 1.1/070116
1
701 Lawton Rd. , Charlotte NC USA 28216
www.zippity-outdoor.com
Toll Free Phone: 1 877 234 6196 Fax: 704 631 4685
Advertisement
Related Manuals for Zippity ZP19022
Summary of Contents for Zippity ZP19022
- Page 1 A S S E M B LY I N S T R U C T I O N S Zippity Pet or Garden Enclosure Kit Zippity (8’ x 8’ x 30”H) NO DIG GARDEN FENCE & SCREENS Assembly Time ... 3 to 4 Hours Installation Time ...
-
Page 2: Tools You Will Need
A S S E M B LY I N S T R U C T I O N S Zippity Please read through before starting assembly. NO DIG GARDEN FENCE & SCREENS IMPORTANT: CHECK THE INSIDE OF THE LARGER PIECES IN YOUR BOX FOR OTHER MATERIALS PACKED INSIDE. - Page 3 S T E P O N E Unboxing Zippity When unboxing, please refer to page 2 to identify and separate NO DIG GARDEN FENCE & SCREENS all your parts and pieces into three different groups. Gate Gate Wings Picket Count:...
-
Page 4: Gate Assembly
Zippity NO DIG GARDEN FENCE & SCREENS Z i p p i t y P e t o r G a r d e n E n c l o s u r e K i t I n s t r u c t i o n s... - Page 5 Square Repeat for all 4 inside corners of gate frame as illustrated. Zippity NO DIG GARDEN FENCE & SCREENS Z i p p i t y P e t o r G a r d e n E n c l o s u r e K i t I n s t r u c t i o n s...
- Page 6 Picket #2 Zippity NO DIG GARDEN FENCE & SCREENS Z i p p i t y P e t o r G a r d e n E n c l o s u r e K i t I n s t r u c t i o n s...
- Page 7 S T E P T H R E E Gate Hardware Installation Center and align a hinge around the top rail as shown. To ensure a proper fit and function, firmly wrap the hinge around the front face and end of the rail as shown. Fasten the hinge to the gate rail using two of the screws Repeat for second hinge on gate bottom rail.
- Page 8 Gate Wing Bottom Rail Note: Post Tabs Zippity NO DIG GARDEN FENCE & SCREENS Z i p p i t y P e t o r G a r d e n E n c l o s u r e K i t I n s t r u c t i o n s...
- Page 9 One of the longer gate wing post will have a wood insert. This post will be used to support the gate hinge as shown. Zippity NO DIG GARDEN FENCE & SCREENS Z i p p i t y P e t o r G a r d e n E n c l o s u r e K i t I n s t r u c t i o n s...
- Page 10 Fence Panel Bottom Rail Note: Post Tabs Zippity NO DIG GARDEN FENCE & SCREENS Z i p p i t y P e t o r G a r d e n E n c l o s u r e K i t I n s t r u c t i o n s...
- Page 11 (one from the front and one from the back) Zippity NO DIG GARDEN FENCE & SCREENS Z i p p i t y P e t o r G a r d e n E n c l o s u r e K i t I n s t r u c t i o n s...
- Page 12 S T E P F I V E Fence Panels Assembly One by one, slide the pickets through the routered holes Zippity as shown. Note the different lengths of pickets. NO DIG GARDEN FENCE & SCREENS Repeat for two other fence panels...
-
Page 13: Panels Installation
Option 2: Option 1: Zippity NO DIG GARDEN FENCE & SCREENS Z i p p i t y P e t o r G a r d e n E n c l o s u r e K i t I n s t r u c t i o n s... - Page 14 S T E P S E V E N With a helper, align and install the side fence panels to the Zippity back panel using the same methods from the previous step. NO DIG GARDEN FENCE & SCREENS Drive two long screws at each corner as shown.
- Page 15 S T E P S E V E N Install Panels into Ground Zippity Insert the two gate side panels into the ground as illustrated, NO DIG GARDEN FENCE & SCREENS using the same methods from the previous steps. Drive two long screws at each corner as shown.
- Page 16 S T E P E I G H T Install Panels into Ground Zippity Level the panels and backfill and compact dirt around the NO DIG GARDEN FENCE & SCREENS base of each post to strengthen the unit. Push the post caps down over the top of posts as illustrated.
- Page 17 S T E P N I N E Gate Installation Zippity With a helper, place the assembled gate on a block of wood NO DIG GARDEN FENCE & SCREENS as shown and align the horizontal rails on the gate so they are in line with horizontal rails on gate wings.
