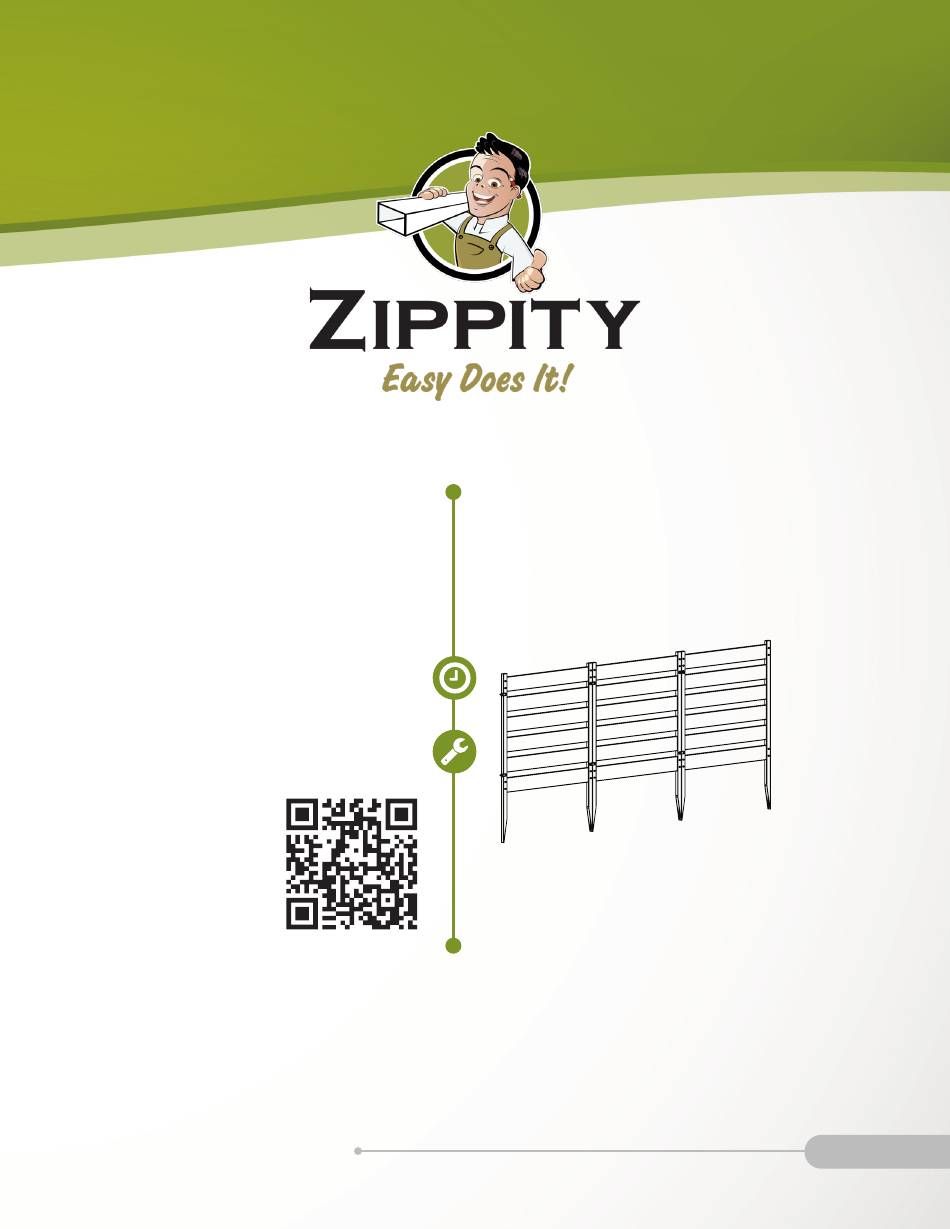

ASSEMBLY INSTRUCTIONS
GARDEN FENCE
GARDEN FENCE
KIT 3-PACK
KIT 3-PA
(24"W X 25 1/2"H)
Approximate assembly time
Want to see a video on how to
assemble this product?
Scan the QR code
WWW.ZIPPITY-OUTDOOR.COM
WWW.ZIPPITY-OUTDOOR.COM
MAUI
CK
30 MIN
ASSEMBLY
INSTRUCTIONS
ZP19065 (WHITE COLOR)
ZP19066 (CHARCOAL COLOR)
ZP19065/ZP19066
1
VER. 112321
Advertisement
Related Manuals for Zippity MAUI
Summary of Contents for Zippity MAUI
- Page 1 ZP19065/ZP19066 ASSEMBLY INSTRUCTIONS MAUI ASSEMBLY INSTRUCTIONS GARDEN FENCE GARDEN FENCE ZP19065 (WHITE COLOR) KIT 3-PA KIT 3-PACK ZP19066 (CHARCOAL COLOR) (24"W X 25 1/2"H) 30 MIN Approximate assembly time Want to see a video on how to assemble this product? Scan the QR code WWW.ZIPPITY-OUTDOOR.COM...
- Page 2 If you experience any further trouble with your product, please contact our customer service department. parts.nychbrands.com support@zippity-outdoor.com 704-892-5222 877-234-6196 Customer service agents are available to take calls weekdays from 8am- 5pm EST. If you call outside of business hours, please leave a voicemail.
- Page 3 ZP19065/ZP19066 ASSEMBLY INSTRUCTIONS 24.00 in 1.13 in 25.50 in 24.75 in 2.00 in 8.00 in WWW.ZIPPITY-OUTDOOR.COM...
- Page 4 ASSEMBLY INSTRUCTIONS LAY OUT MATERIALS STEP 1: Slat (18) 3/8” x 27/8” x 24” Joiner Clip (6) 1/2” Self-Drilling Right Post (3) Left Post (3) Stainless Steel Screw (36) 5/8” x 1” x 331/2” 5/8” x 1” x 331/2” WWW.ZIPPITY-OUTDOOR.COM...
- Page 5 Insert a Left Post over the slats until they hit the back wall of the post. Drive (8) total 1/2” Self-Drilling Stainless Steel Screws into the pre-drilled holes in the posts. WWW.ZIPPITY-OUTDOOR.COM...
- Page 6 6” or 7” of the ground with a claw hammer as illustrated. Add water to the loosened soil. Use a block of wood to protect the Block of wood top of the post, and gently hammer the post into the ground. WWW.ZIPPITY-OUTDOOR.COM...
- Page 7 Drill a hole about 12” to 16” deep at the desired location, and fill the holes with water as illustrated. Push the fence posts into the holes. STEP 4.3 Level the assembled unit, backfill, and compact dirt around the base of each post to strengthen the unit. WWW.ZIPPITY-OUTDOOR.COM...
- Page 8 STEP 5: STEP 5.1 Straight Line Application: Fasten the panels together with (2) Joiner Clips using (4) 1/2” self-drilling stainless steel screws. Corner Application: Fasten the panels together with (2) Joiner Clips using (4) 1/2” self- drilling stainless steel screws. WWW.ZIPPITY-OUTDOOR.COM...
- Page 9 ZP19065/ZP19066 ASSEMBLY INSTRUCTIONS 6935 Reames Rd. Ste. K. Charlotte, NC 28216 support@zippity-outdoor.com 704-892-5222 877-234-6196 WWW.ZIPPITY-OUTDOOR.COM WWW.ZIPPITY-OUTDOOR.COM...
