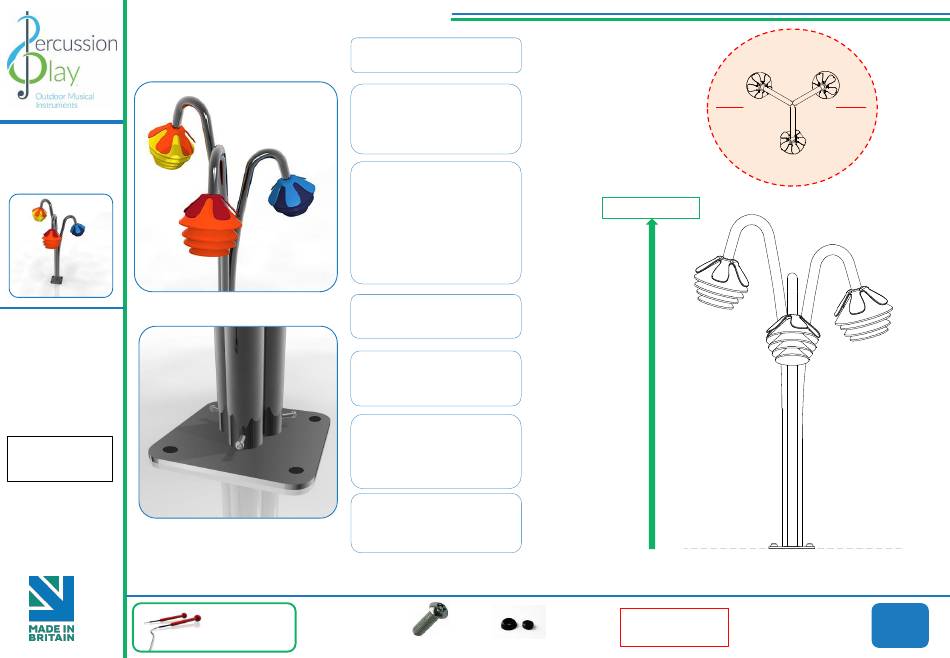

Installation Instructions
Surface Fixed
Harmony Bells
Page 1 of 2
Instrument
Components:
Metric Conversion:
1650mm/ 64 61/64"
1.5m/ 59"
Weight of heaviest part
BS EN 1176
1. Unpack ground fixing legs
3no.
2. Lay packaging out on floor
or assemble on non-abrasive
surface to prevent marking of
polished stainless steel.
3. Align holes on legs to holes
on surface fixing(opposite
end to polished domes) and
secure in place using 3no.
M10 x 30mm Screws
provided. Tools required TX
45 Driver Bit)
4. Invert assembled frame so
Bells are at the top.
5.Locate Bells in desired
location and mark holes to fix
to desired surface.
6. Fix to Surface using
recommended ground
anchors (Ground Anchors are
not supplied)
7. Make sure all fixings are
covered and secure using
cover caps provided
8kg
(Large Bell)
Surface Fix
Small
Beaters X3
Components:
M10x30 Security Screw
1650mm from Plate
x3
Ground Anchors
x4
not supplied
2 Part Cover Cap
1.5m
1.5m
Ground Surface
Spares available from
percussionplay.com
or from your
local distributor
Install
Instrument
with 1.5m free
space (from
widest point)
around it.
30 Kg
