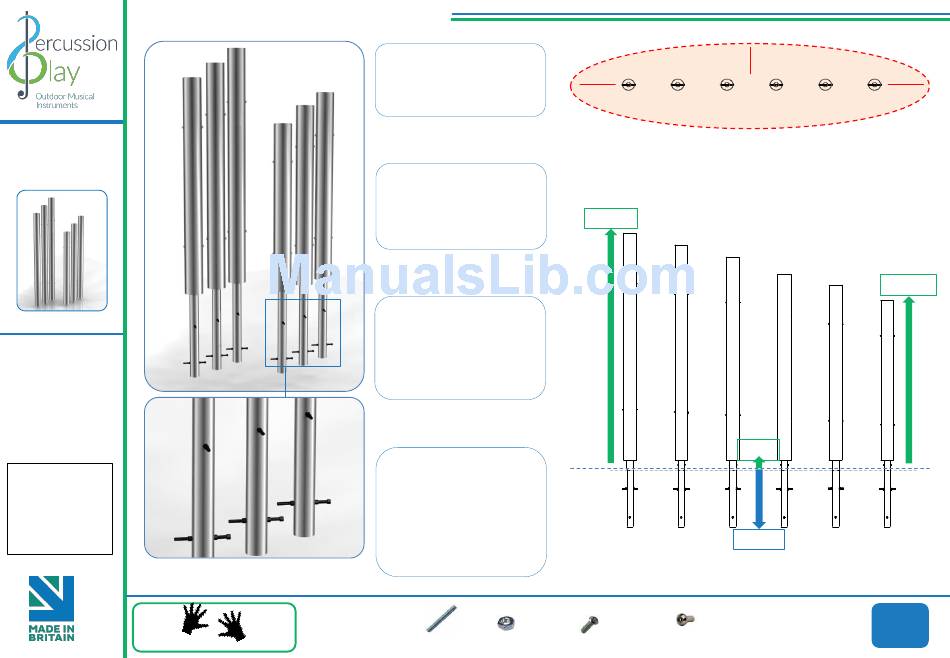

Percussion Play Emperor Chimes Installation Instructions

Installation Instructions

Ground Fixed

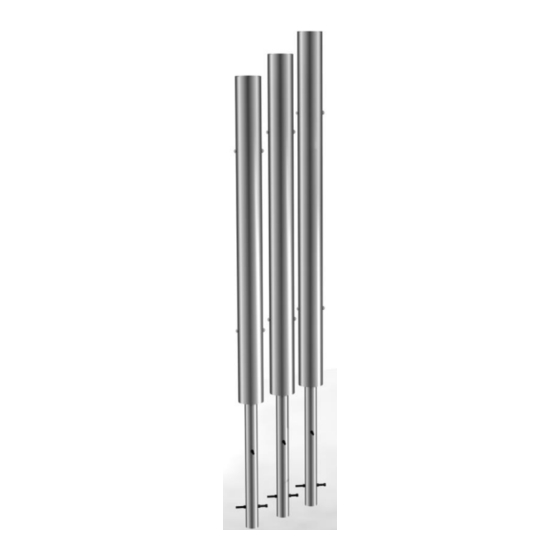

Emperor Chimes
Page 1 of 2
Instrument
Components:
Emperor
Chimes
are pre-
assembled
Metric Conversion:
100mm/ 4"
250mm/ 10"
600mm/ 24"
1.5m/ 59"
1785mm/ 70"
2490mm/ 98"
Weight of heaviest part
Played with hands
BS EN 1176
1. Attach Ground Fixing posts
to legs(1.2) (See Ground Fix
Post Installation Sheet)
2.Excavate 6 holes for
Emperor chimes 250mm
diameter by 600mm deep in
desired location upon
decision from customer.
3. Locate (lower) legs into
holes making sure they are
vertical and level prior to
concreting in place. Chimes
should be 100mm from
ground surface.
4. Once happy with location
of the chimes, fill holes using
rapid hardening concrete. Be
sure to compact concrete
around legs and leave to dry
according to manufactures
guidelines.
25kg (XL Chime)
Ground Fix
Components:
M10x150 Bolt
1.5m
2490mm
Ground
Surface
x12
x24
x6
M10 Nut
M10x50 Security Screw
1.5m
100mm
600mm
Spares available from
x6
percussionplay.com or from your
local distributor
M10 Barrel Nut
1.5m
Install Instrument
with 1.5m free space
(from widest point)
around it.
1785mm
117 Kg
