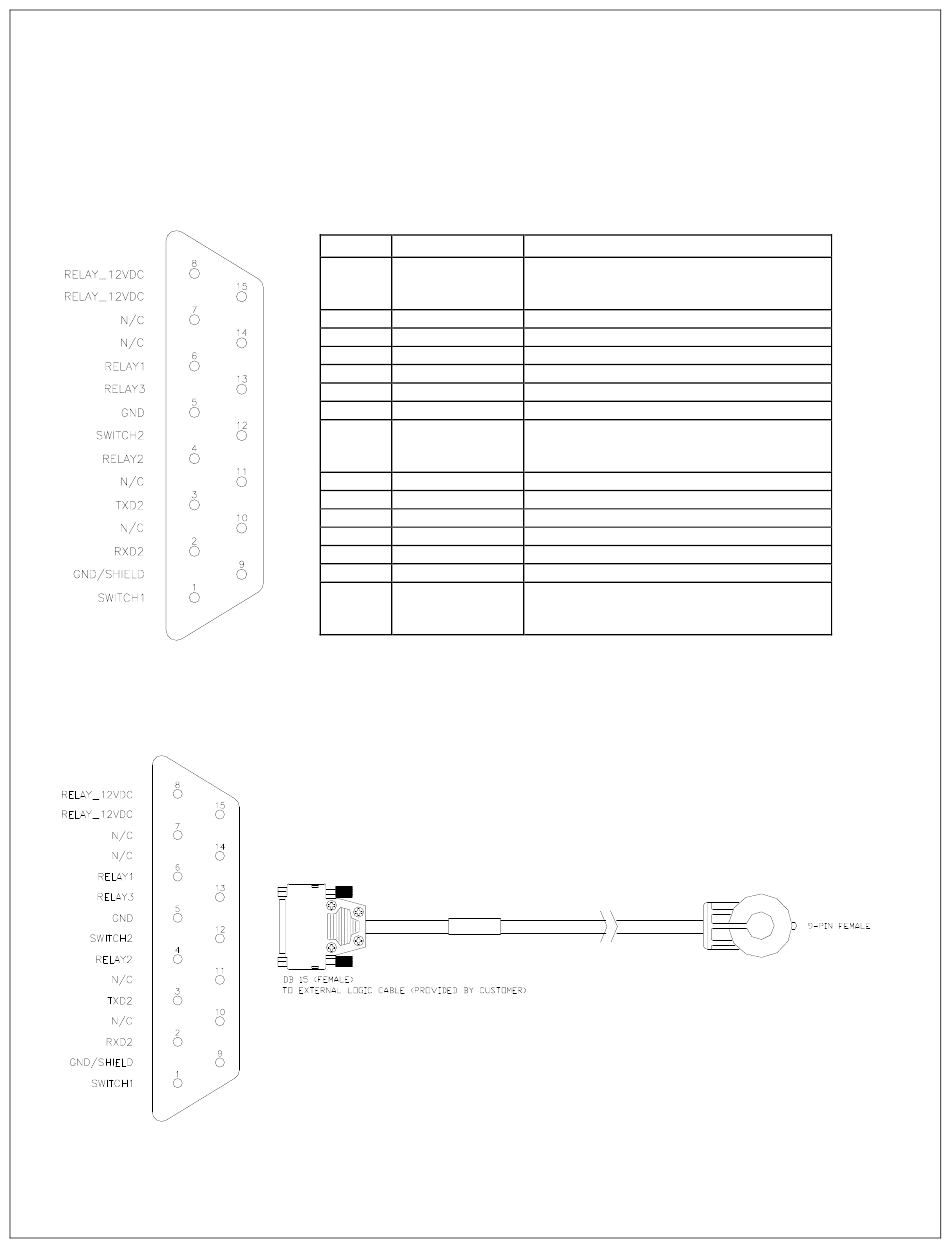

APPENDIX A- AUXILIARY CABLE
DVR-LX Auxiliary Cable (7W083X06-01)
8M093X01 R1.0
Pin #
Designation
1
SWITCH 1
2
RXD2
3
TXD2
4
RELAY 2
5
GND
6
RELAY 1
7
NOT USED
8
RELAY_12VDC
9
GND/SHIELD
10
NOT USED
11
NOT USED
12
SWITCH 2
13
RELAY 3
14
NOT USED
15
RELAY_12VDC
Note
Alternative
AVRA
Input,
programmed in the Futurecom Repeater
Configurator's Hardware Setup Screen
RS232 Input
RS232 Output
Primary Light Output / as programmed
Ground
RF Switch Output / as programmed
-
12VDC for powering up relay coil. Max
current draw is 750mA TOTAL from both
pins 8 & 15.
Ground / Shield
-
-
For future use
As programmed
-
12VDC for powering up relay coil. Max
current draw is 750mA TOTAL from both
pins 8 & 15.
[Grab
your
operating
as
TO DVR-LX PORT
42
