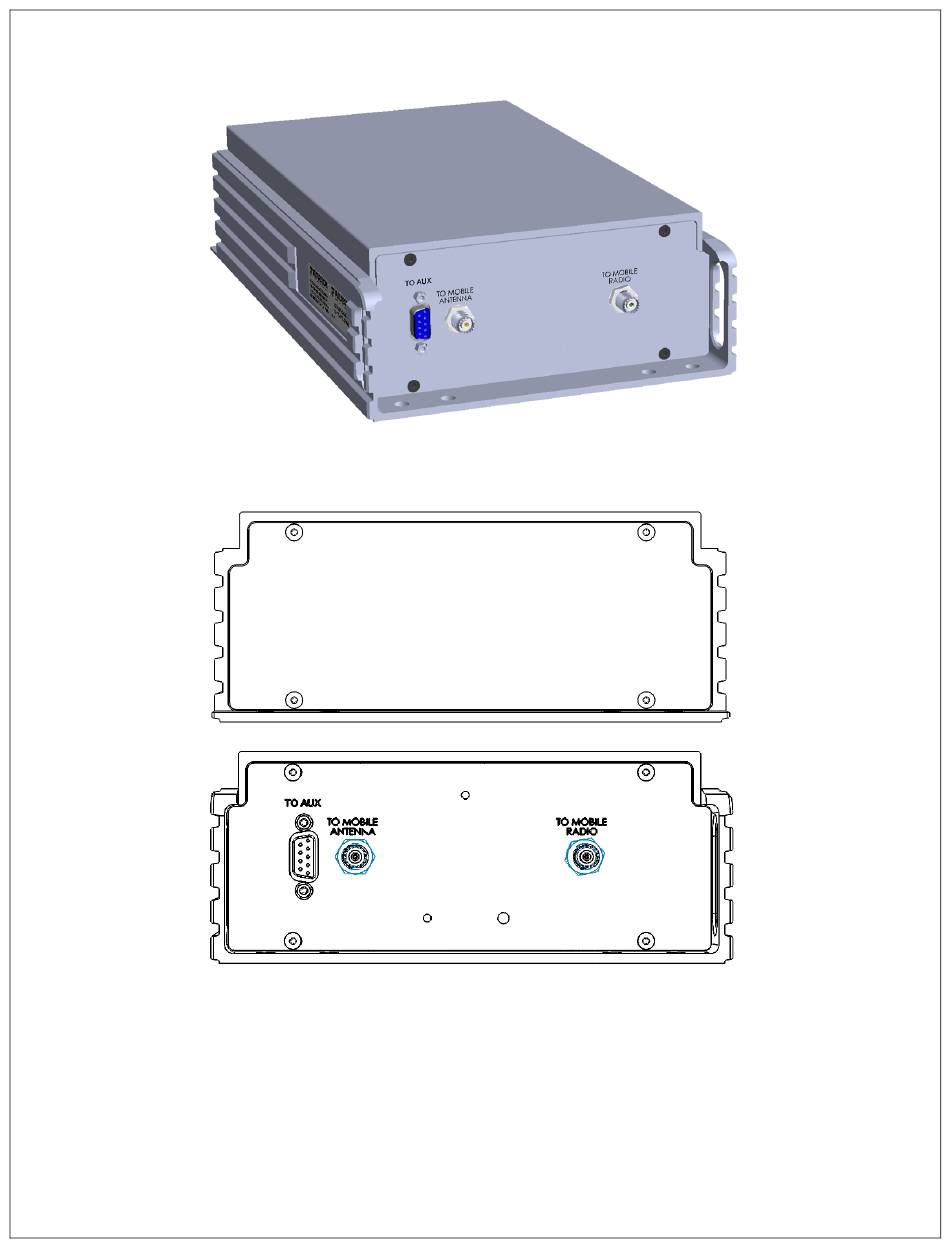

Figure 17: Notch Filter Connectors for 700 MHz – Front and Back View
The front of the DVR-LX and MSU notch filters have no connection options.
The back of the DVR-LX notch filter includes connections for:
•
TO DVR ANTENNA- connection to DVR-LX antenna
•
TO DVR- connection to the antenna port on the back of the duplexer
8M093X01 R1.0
Figure 16: In-Band Notch Filter for 700 MHz
23
