with a DB15 male connector with the required pin out and connect it to the DB15 female
connector of the Auxiliary cable. Refer to
APPENDIX A
for pinout details. Possible
applications for the auxiliary port include Status Lights and AVRA.
CONNECT TO
EXTERNAL LOGIC
CABLE
AUXILIARY CABLE

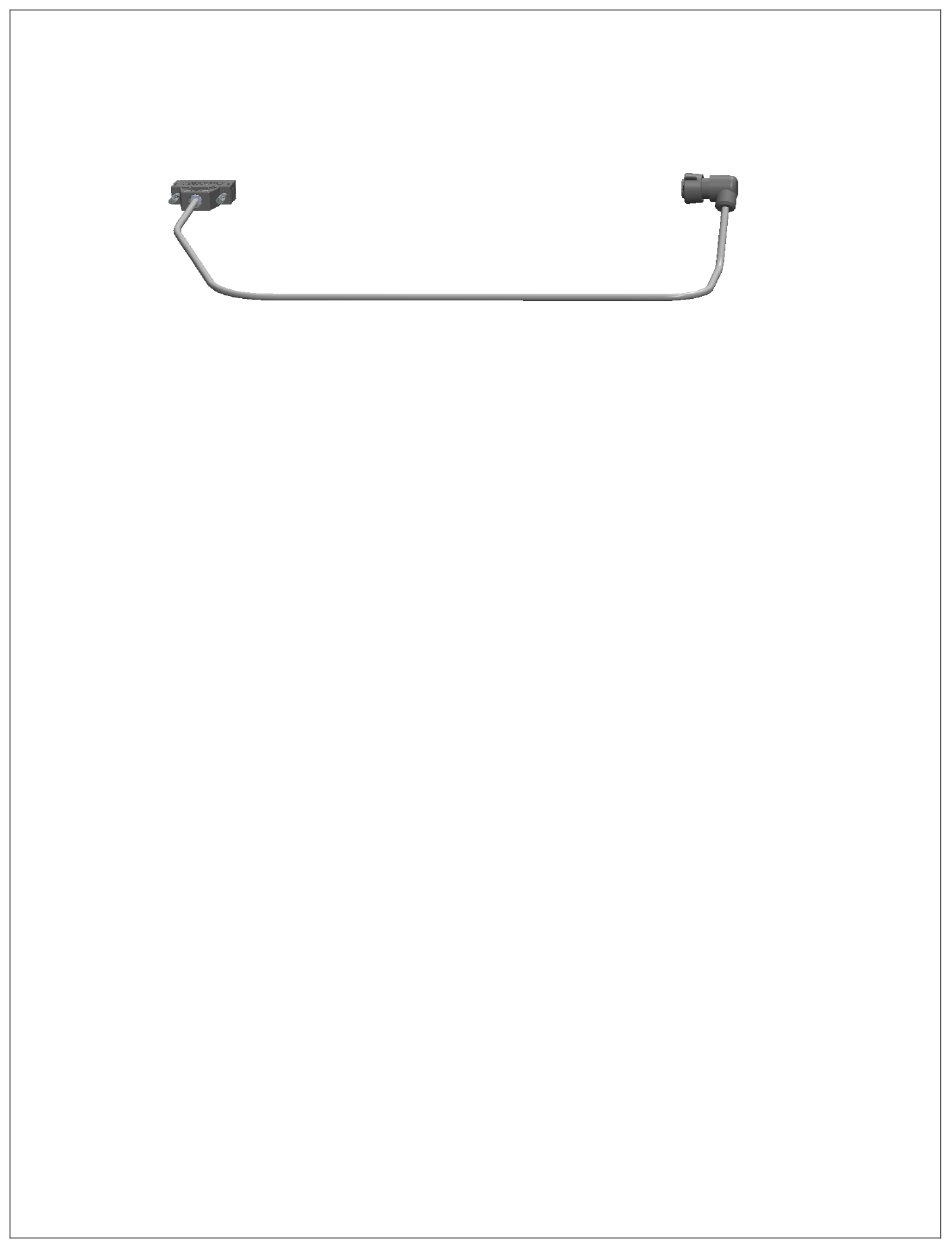

Figure 38: Auxiliary Cable Alternate Connections
38
8M093X01 R1.0
