DVR-LX and Duplexer Connections

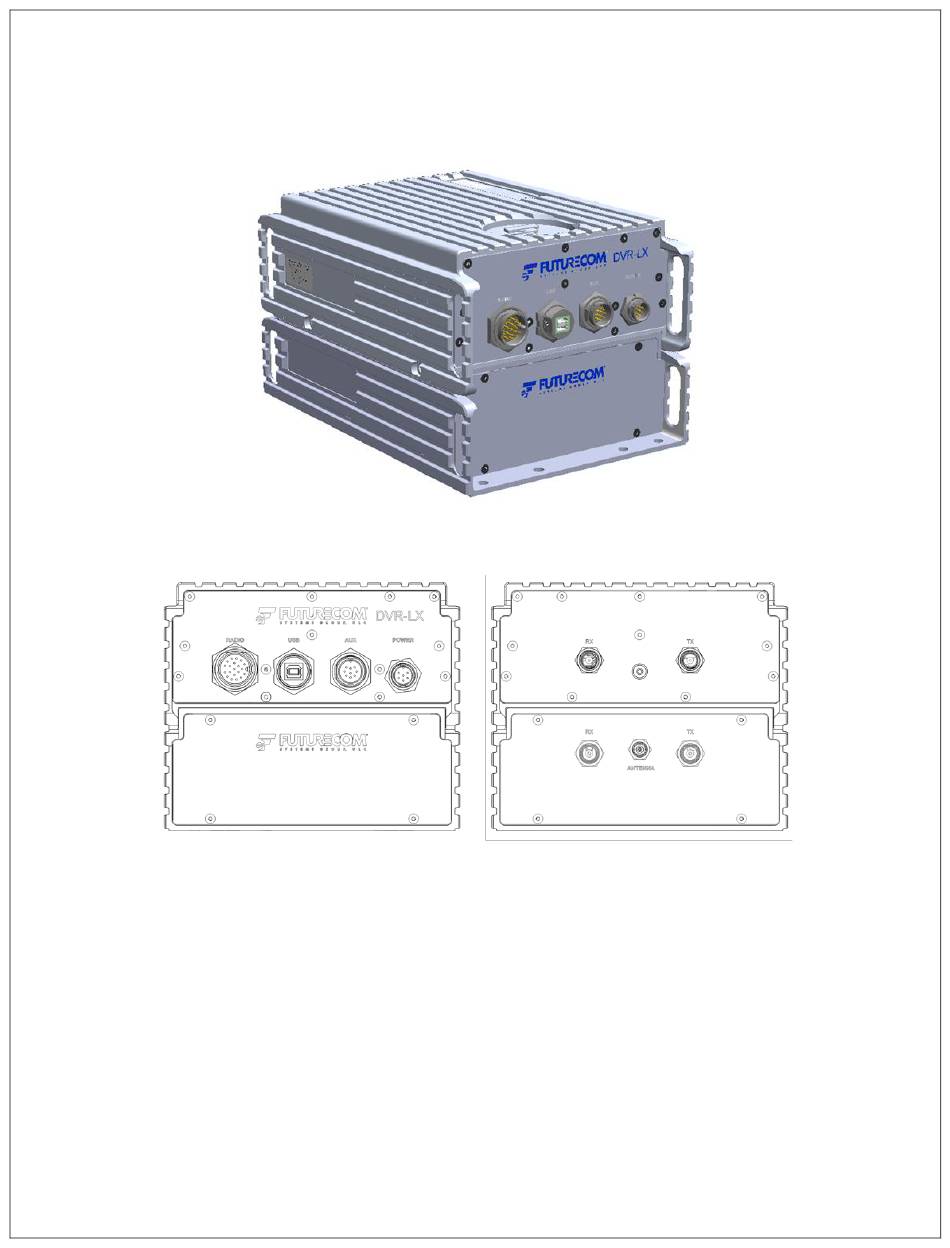

The DVR-LX typically sits on top of a duplexer, as shown in Figure 13.
Figure 13 DVR-LX and Duplexer Connectors - Front and Back View
The front of the DVR-LX includes connections for:
•
RADIO- for connection to the mobile radio
•
USB- for programming cable
•
AUX- for connecting optional external logic such as a Switch, Siren, AVRA or
Status Lights (See: Auxiliary Port Options)
•
POWER- for connecting to vehicle battery
The front of the duplexer has no connection options.
8M093X01 R1.0
Figure 12: Stacked DVR-LX with Duplexer
