Installation Drawings

Configuration 1: Duplex (700 or 800MHz) In-band Stacked

Refer to
Standard Installation Cables
8
4
To MSU
Antenna
8M093X01 R1.0
section for mapping of cable diagram numbers to part numbers
1
3

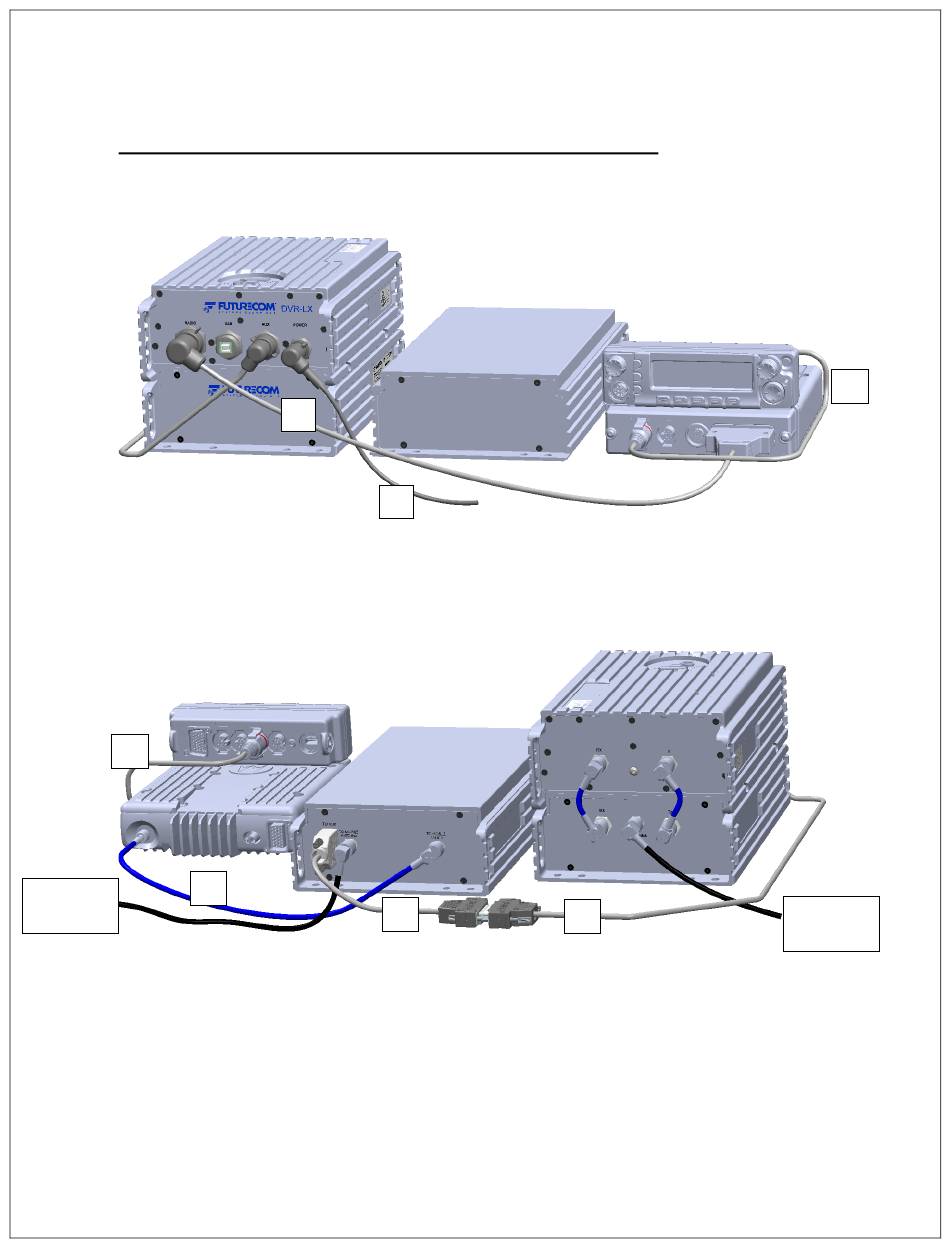

Figure 19: Configuration 1 - Front View
7
Figure 20: Configuration 1 - Back View
2
8
To DVR
Antenna
28
