  • Page 1 Owner’s Manual O Sensor - Model 201LS, 201LSHD & 200DM Large Square Baler Precision Moisture Sensing Kit Forage Harvester O Sensor-Owners-201LS, 201LSHD-19-Imp&Metric 8/20...
  • Page 2 Council of 17 May 2006 and other applicable European Directives including Directive 2014/53/EU on the Radio Equipment Directive and 2014/30/EU. The Harvest Tec moisture system will be turned on after being installed on a farm press which has been declard in conformity with the Machinery Directive.
  • Page 3: Table Of Contents

    Android devices. It is recommended for proper communication that the original phone/tablet power cable is used. Many lower cost power cables do not meet requirements to properly charge and communicate to the Harvest Tec H2O module. Tools Needed SAE wrench set...
  • Page 4: Installation Of Star Wheels

    Installation of Star Wheels AGCO Balers - Non-UHD Models The star wheels are to be mounted on top of the baler, just behind the knotters and under the walkway on both sides. The notch and holes for the star wheel are precut. If the star wheels are cutting the twine the sensors and notch must be moved out an additional 1/2"...
  • Page 5: Claas Balers

    Installation of Star Wheels (continued) Claas Balers Use the picture below as a guide for drilling the mounting holes for the star wheels. The star wheels are to be mounted on the side of the bale chamber, between the top and middle channel. Measure 10”...
  • Page 6: John Deere L330-L341 Balers

    Installation of Star Wheels (continued) John Deere L330-L341 Balers Remove any material from the bale chute. The star wheels are to be mounted on the transition bracket on both sides of the bale chute located after knotters shown above. Holes have been installed at the factory, however you need to remove bracket and cut 3/4”...
  • Page 7: Balers Not Listed

    Installation of Star Wheels (continued) Balers Not Listed The star wheels are mounted under the walkway on top of the baler behind the knotters. Remove the bale from the chute and tip the walkway up. Locate the star wheel template on the outside corner angles of the bale chute on the left and right side of the baler.
  • Page 8: Control Box Installation

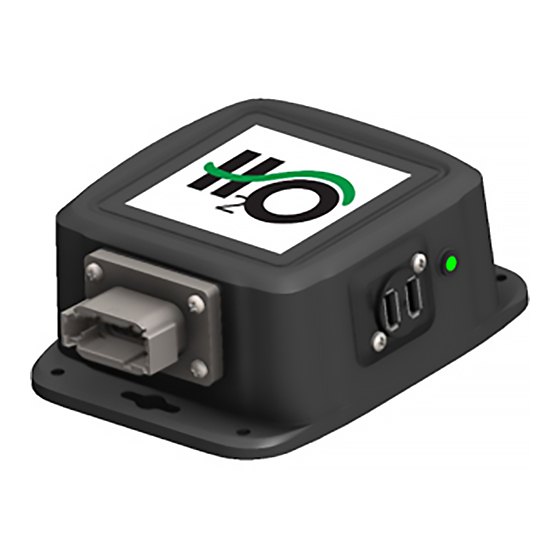

    Solid Green – Device is connected. **It is recommended for proper communication that the original phone/tablet power cable is used. Many lower cost power cables do not meet requirements to properly charge and communicate to the Harvest Tec H2O module.
  • Page 9: Dye Marker Installation - 200Dm (Optional)

    Baler Pwr/Comm Harness (006-2470SS), wiring details in the wiring diagram. Note: The mounting location will potentially be different for the tank on each baler model. Due to various baler designs and modifications, Harvest Tec does not offer a specific mounting location for each baler model.
  • Page 10: Wiring Diagram

    1. Connect the power harness (006-2470P) to the tractor convenience outlet keyed power switch using the red wire with fuse to the positive side and the black wire to the negative. a. Any modifications of the power harness will void the warranty. Contact Harvest Tec before modifications are made.
  • Page 11: Downloading H

    Downloading H O App The H O App is available on any Apple or Android device running with the current operating system software and one previous version. Download the app by searching for H2O Sensor. App icon shown right. Screen Definitions Main Screen Brightness Adjustment –...
  • Page 12: Operation

    Operation After installation of the H O app, turn the system on by turning the key in the tractor on. When the connection is made the green light on the control box will illuminate. Reading Moisture When hay begins to enter the bale chamber, current moisture will be displayed Moisture Range 5-60% If the moisture being read is Greater Than 60%...
  • Page 13: Dye Marker System

    Operation (continued) Dye Marker System When using the dye marker turn on the setting as Dye Marker icon will now appear on the home screen. shown and select the desired moisture to mark a bale. The last bale moisture will be highlighted in red and *Bales at or above this moisture level will be marked.
  • Page 14: H 2 O Firmware Update Through App

    O Firmware Update through App When there is an update available for the H O system the following information will appear and the steps listed will need to be followed. Once an operator downloads the app update (internet connection required) the “update available” symbol will appear along with the version number of the available update once connected to the system.
  • Page 15: Pin Outs

    Pin Outs H2O Wired Moisture Control 006-2473SB Pin 1 Module Power Pin 2 Red/Black EOB + Pin 3 Black EOB - Pin 4 Grey Left Moisture Sensor Pin 5 Brown Right Moisture Sensor Pin 6 Purple EOB Signal Pin 7 Yellow CAN + Pin 8...
  • Page 16: Parts Breakdown

    Star Wheels Large Square Balers Description Part# Star wheel sensor 030-4641C Snap ring (per side) 006-4641K Washer (per side) w/006-4641K Dust seal (per side) w/006-4641K Star wheel block 006-4641A Star wheel spacer 001-6707E Wiring grommet 008-0821A Plug fitting 003-F38 Swivel insert w/ Ref # 1 Electronic swivel 006-4642A...
  • Page 17: Control Box & Harnesses

    Control Box & Harnesses Description Part # Baler Pwr/Comm Harness 006-2470LS 201 Series Control Box 006-2473SB Tractor Power Harness 006-2470P Optional 8’ power/comm 006-2470BL2 harness extension Fixed Chamber End of Bale Sensor Kit Description Part # Description Part # End of Bale Sensor 006-7400 EOB Extension 006-7400EXT End of Bale Bracket...
  • Page 18: H 2 O Dye Marker

    O Dye Marker Assembly Example Description Part # Description Part # H2O Harness (10’) 006-2470C 1/4" Street Elbow 003-SE14F Tank & Pump 005-9015 Check Valve 007-1207VB Nozzle Cap 004-4723 1/4" Straight Fitting 003-A1414VB Tip - Brass 004-TX-5 Push Switch 006-2850 Tip Strainer (Green) 004-1203-100 1/4"...
  • Page 19: Warranty Statement

    Harvest Tec, Inc. within 30 days of the failure. If it is determined that a non-Harvest Tec branded hay preservative has been used inside the Harvest Tec applicator system where the failure occurred, then Harvest Tec reserves the right to deny the warranty request at their discretion.
  • Page 20 HARVEST TEC, INC. P.O. BOX 63 2821 HARVEY STREET HUDSON, WI 54016 USA PHONE: 715-386-9100 FAX: 715-381-1792 Email: info@harvesttec.com...
