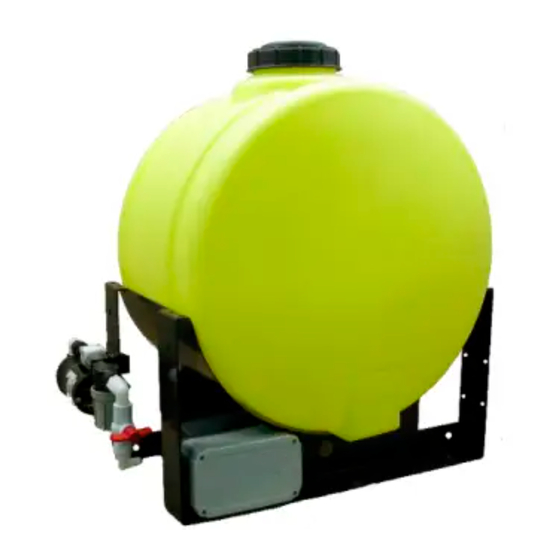

25 gallon preservative applicators
Hide thumbs Also See for 442U:
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
Model 442U
25 Gallon Preservative Applicators
Forage Harvester
#010-0442U
Revised 6/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 442U and is the answer not in the manual?

Questions and answers

Related Manuals for Harvest TEC 442U

Summary of Contents for Harvest TEC 442U

  • Page 1 OWNER’S MANUAL Model 442U 25 Gallon Preservative Applicators Forage Harvester #010-0442U Revised 6/22...

  • Page 2: Table Of Contents

    DETERMINING RATE OF CHEMICAL SELECTING TIPS AND SETTING PRESSURE CALIBRATION REMINDERS GENERAL CALIBRATION CHARTS ROUTINE MAINTENANCE WINTER STORAGE TROUBLE SHOOTING CHECKS PARTS BREAKDOWN 14-15 MODEL 442U BASE KIT MODEL 442U DRAIN/FILL, CONTROL BOX AND NOZZLE ASSEMBLY NOTES WARRANTY AND LIABILITY BACK PAGE...

  • Page 3: Reference Chart

    For your convenience we have included a parts break down for the model 442U applicator. If something goes wrong bring this manual into the dealer so they can order the correct parts for you. Ordering the correct part number is very important.

  • Page 4: Installation Of The Applicator

    INSTALLATION OF APPLICATOR 1. INSTALLATION OF TANK, MOUNTING BRACKETS, GAUGE, & DRAIN/FILL LINE Locate the tank base bracket (001-4442U). This bracket will mount on the front of the baler is show below. Depending on the year of the baler only two of the required three holes may be premade on the baler.
  • Page 5 INSTALLATION OF TANK, MOUNTING BRACKETS, GAUGE, & DRAIN/FILL LINE CONT. Mount the tank on the tank base bracket (001-442U) as shown below and on the previous page. The position the tank and saddle so that the additional side hole on the tank will be facing the front of the baler.
  • Page 6 2. INSTALLATION OF SPRAY NOZZLE ASSEMBLY The cross bar on the wind guard above the pick-up head provides a mounting point for the nozzle pipes. Space the nozzles by the chart below: PICK-UP HEAD LEFT SIDE CENTER RIGHT SIDE WIDTH (Use plugged fitting) (Use 2-way fitting) (Use 2-way fitting)

  • Page 7: Installation Of Plumbing

    3. INSTALLATION OF PLUMBING A. INTAKE Screw the 003-EL3412 (3/4” to ½”elbow) into the bottom of the tank. Second screw the 002-2212(½” ball valve) with elbow into the filter assembly. Lastly, route the 002-9001(1/2” hose) from bottom of the tank to ball valve. Secure with hose clamps. B.

  • Page 8: Installation Of Controls

    OPERATING INSTRUCTIONS The 442U applicator is very simple to operate. After installing the applicator, fill the tank with 5 gallons of water. With control box connected to the applicator and the power cord hooked to the 12- volt battery we can start the test. First flip on the toggle switch. You might hear the buzzing of the motor.

  • Page 9: Calibration

    CALIBRATION There are three things that you need to know when calibrating your applicator. First you need to know how many tons per hour you bale. Second you need to know the rate, or how many pounds of product to apply for a given ton per hour. Finally you need to know what tips to use and at what pressure to set the gauge.

  • Page 10: Determining Rate Of Chemical

    To find the exact number of pounds required, for a given hay moisture, refer to the label on the drum or contact the manufacture. Harvest Tec applicators come with low, medium, and high sets of tips. If your chemical requires rates other than what these tips deliver you will need to purchase them through your dealer.

  • Page 11: General Calibration Charts

    GENERAL CALIBRATION CHART IN POUNDS PER HOUR Use the following chart for all applications that require pounds measurements. POUNDS PER HOUR WITH THREE NOZZLES INCLUDED IN KIT YELLOW GREEN BLUE BLACK 650067 XR11001 XR110015 XR11002 XR11004 CENTER 650033 650050 6501 6502 6503 OUTSIDE...

  • Page 12: Routine Maintenance

    Clean the tip strainers and main strainer every 10 hours of operation or more frequently if required. Depending on the product being used, the system may need to be flushed with water at a regular interval (consult with manufacturer of the chemical.) If Harvest Tec product is being used, flushing is not necessary.

  • Page 13: Trouble Shooting Checks

    TROUBLE SHOOTING CHECKS PROBLEM POSSIBLE CAUSE SOLUTION Pump will not run. 1. Circuit breaker tripped 1. Check for short, low voltage, on electronic unit. and reset breaker. 2. Pump locked up. 2. Clean or rebuild pump if motor is OK. 3.

  • Page 14: Parts Breakdown

    MODEL 442U BASE KIT Ref Description Part # Tank 005-9022 Tank saddle 001-4442 Strap 001-4402 Tank mounting bracket 001-4442U 005-9022C Lid gasket 005-9022CG Tank fitting 005-9100 Shims 001-4442US Ref Description Part # Ref Description Part # Pump 007-4120S Ball valve...

  • Page 15: Model 442U Drain/Fill, Control Box And Nozzle Assembly

    MODEL 442 DRAIN/FILL KIT, CONTROL BOX, & NOZZLE ASSEMBLY Ref Description Part # Ref Description Part # Jiffy clip-large 008-9009 Male shut-off 002-2205G Jiffy clip-small 008-9010 Female coupler 002-2204A Ball valve 002-2200 Straight fitting 003-A3434 Valve bracket 001-6702H Elbow fitting 003-EL3434 Hose clamp 003-9003...

  • Page 16: Notes
