Electrical Connection
Attaching the Antenna

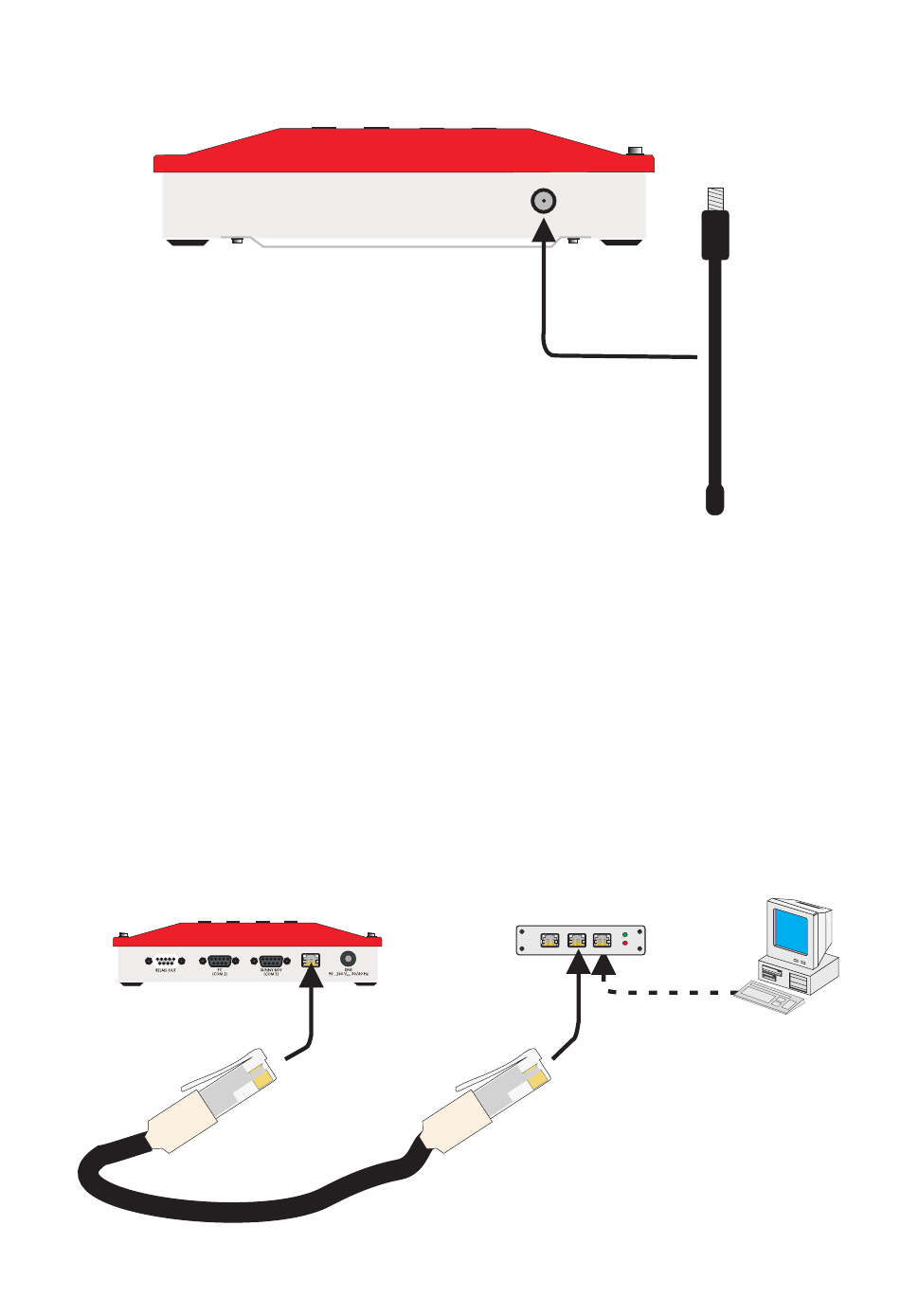

Sunny Boy Control with antenna socket
Screw the provided radio antenna into the antenna socket in a clockwise direction and tighten it
manually. The device for the antenna is located on the top of your Sunny Boy Control.
4.2.4 NET Piggy-Back "Ethernet" Version
The accessories provided in the delivery include:
•
Cat 5 patch cable
3 m, 8-wire, 8-pole modular plug (RJ45) on both ends
Connecting to a Network
To connect your Sunny Boy Control to an existing network, connect it to your router or switch as
shown below. Use the provided patch cable for this purpose. An example of how to integrate the
Sunny Boy Control in the network can be found in Section 5.4.
RJ45 plug
16
NETPB-TEN081708
Sunny Boy Control with
NET socket
SMA Solar Technology AG
Router
PC with Ethernet card
RJ45 plug
Radio antenna
Technical Description
