4.2.3 NET Piggy-Back "GSM" Version

The accessories provided in the delivery include:
• Radio antenna with external thread
To prepare your Sunny Boy Control for use with a GSM NET Piggy-Back, proceed as follows:
DANGER!
Risk of lethal electric shock when opening the Sunny Boy Control.
Open the Sunny Boy Control as described in the Sunny Boy Control manual.
Inserting the SIM Card
Slot for SIM card
Insert your SIM card into the device on the GSM NET Piggy-Back. To do so, you first need to release
the lock and lift up the clamp. Now slide your card into the device and then close and lock it. Make
sure the Sunny Boy Control is properly closed. Reconnect all peripherals.
Dial-In Function for Remote Maintenance
To use the dial-in function for remote maintenance, you need an SIM card with an active
data link. This card is only available from cellular network providers as part of a contract.
If you only want to send e-mails, then you can also use a prepaid card.
Technical Description

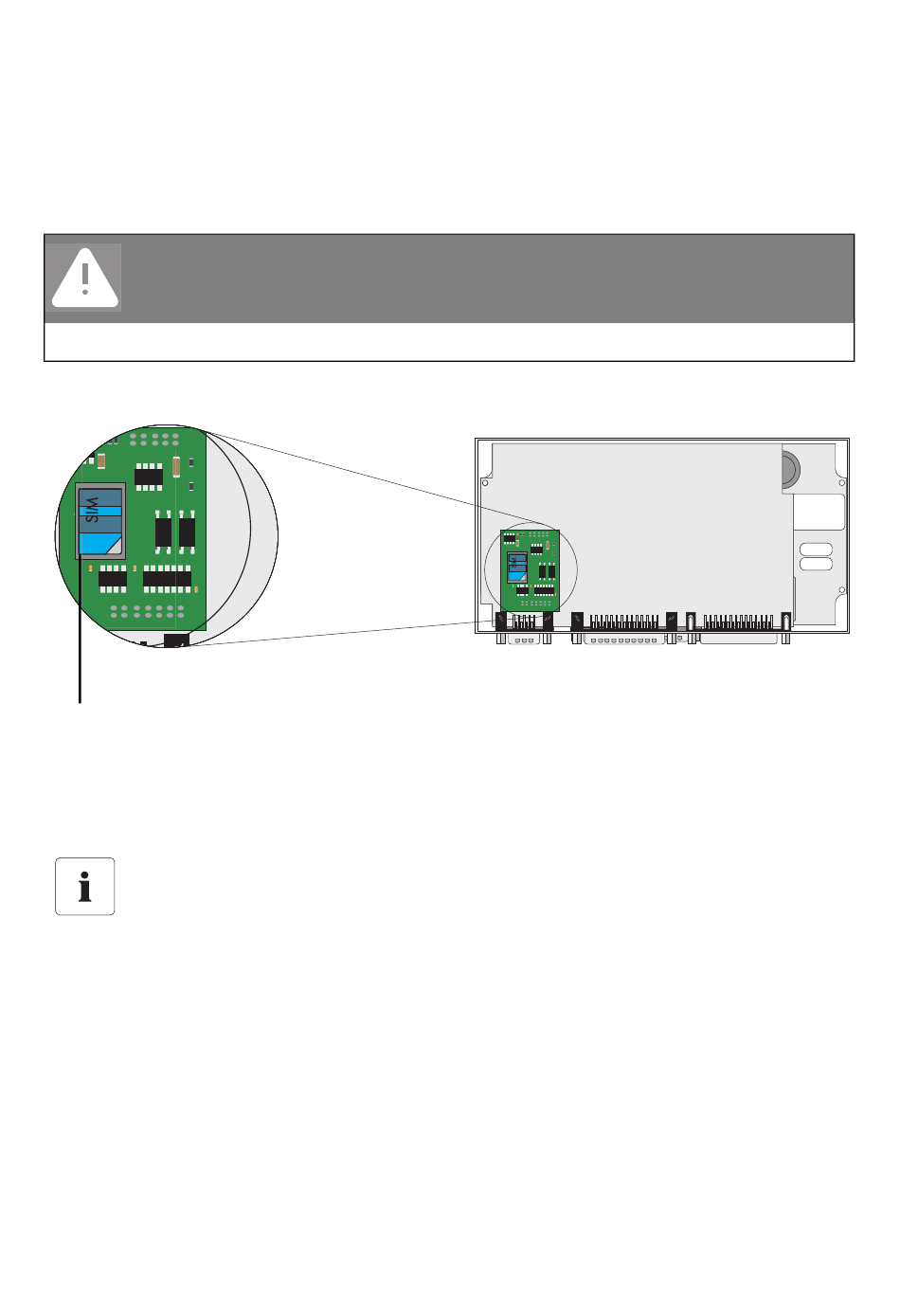

Interior view of Sunny Boy Control
NETPB-TEN081708
