Altronix AL125220 Series Installation Manual page 8

1.20"
(30.5mm)
1.40"
(35.6mm)
3.25" (82.6mm)
1.0" (25.4mm)
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
IIAL125220series
- 8 -

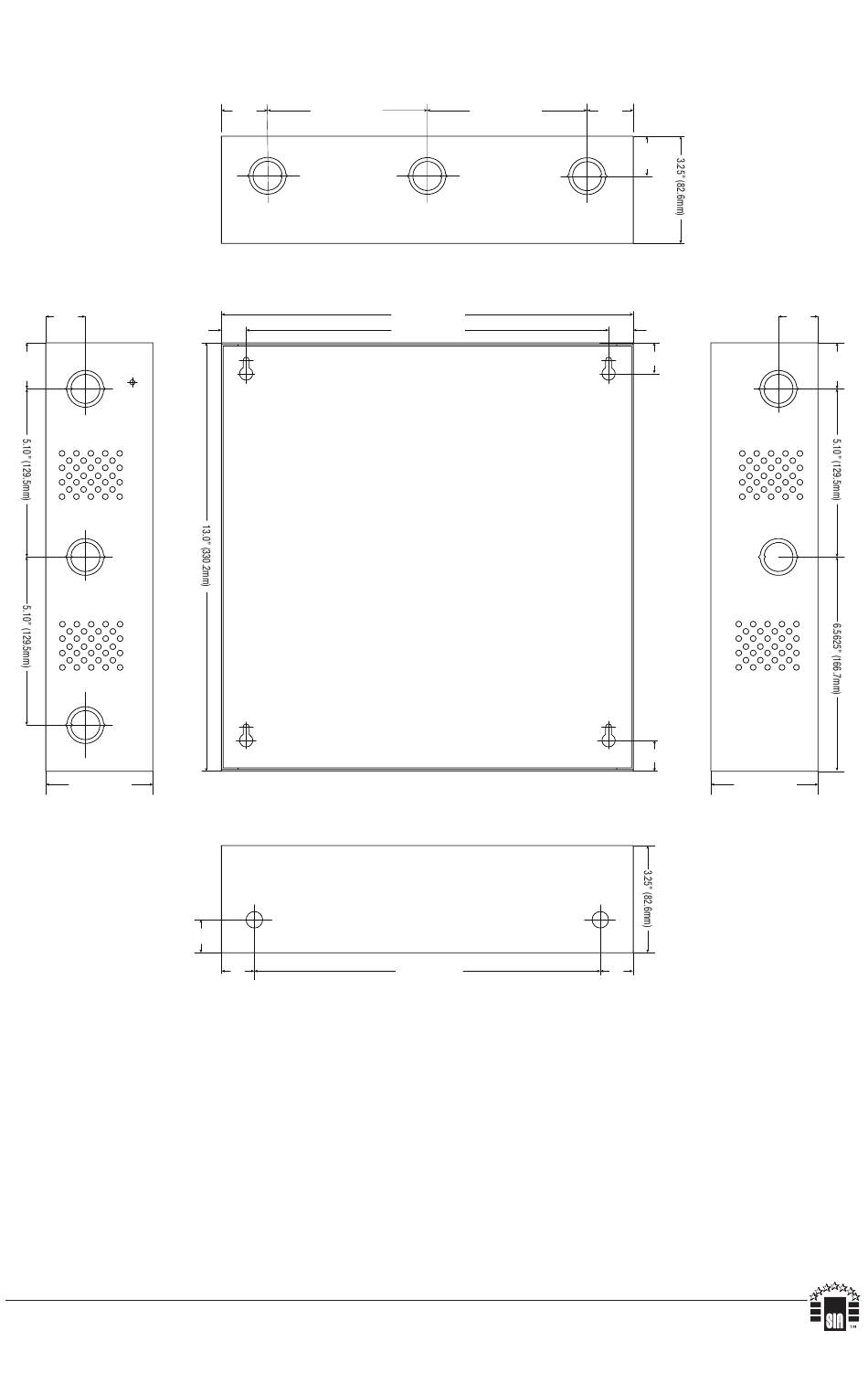

Enclosure Dimensions (H x W x D):
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.6mm)
1.40"
4.85" (123.2mm)
(35.6mm)
0.75"
(19.1mm)
1.0"
(25.4mm)
AL125X220
4.85" (123.2mm)
12.5" (317.5mm)
11.0" (279.4mm)
10.5" (266.7mm)
F29U
1.40"
(35.6mm)
1.20"
(30.5mm)
0.75"
(19.1mm)
0.9375" (23.8mm)
0.9375" (23.8mm)
3.25" (82.6mm)
1.0"
(25.4mm)
1.20"
(30.5mm)
1.40"
(35.6mm)
MEMBER
AL125220 Series
