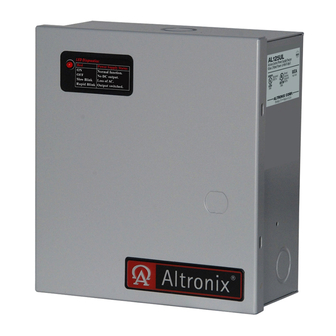

AL125UL Series
Access Control Power Supply/Chargers
Installation Guide
Models Include:
AL125UL
- Includes power supply, transformer, cam lock, and enclosure.
- 8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm).
- Accommodates one (1) 12VDC/4AH battery.
AL125ULX
- Includes power supply, transformer, cam lock, and enclosure.
- 13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.6mm).
- Accommodates up to two (2) 12VDC/7AH batteries.
AL125ULE
- Includes power supply, cam lock, and enclosure.
- 8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm).
- Accommodates up to two (2) 12VDC/4AH batteries.
AL125ULP
- Includes power supply, 24VAC/40VA plug-in transformer, cam lock, and enclosure.
- 8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm).
- Accommodates one (1) 12VDC/7AH battery or two (2) 12VDC/4AH batteries.
AL125ULPX
- Includes power supply, 24VAC/40VA plug-in transformer, cam lock, and enclosure.
- 13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.6mm).
- Accommodates up to two (2) 12VDC/7AH batteries.
Rev. 052119
More than just power.
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix AL125ULPX
Summary of Contents for Altronix AL125ULPX
- Page 1 - 8.5” x 7.5” x 3.5” (215.9mm x 190.5mm x 88.9mm). - Accommodates one (1) 12VDC/7AH battery or two (2) 12VDC/4AH batteries. AL125ULPX - Includes power supply, 24VAC/40VA plug-in transformer, cam lock, and enclosure. - 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.6mm).
- Page 2 Overview: Altronix AL125UL Series power-limited Power Supply/Chargers convert 115VAC 50/60Hz input into two individually PTC protected auto-resettable 12VDC or 24VDC outputs (see specifications). They are intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with Fire Alarm Control Panels.
- Page 3 Use 18 AWG or larger for all power connections (Battery, AC input, DC outputs). Use 22 AWG to 18 AWG for power-limited circuits (Trigger inputs, Dry outputs, DC outputs). b. AL125ULE, AL125ULP, AL125ULPX: Connect 24VAC from UL Listed 40VA plug-in transformer (included with AL125ULP and AL125ULPX) to terminals marked [XFMR].
- Page 4 The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of an insulated DANGEROUS VOLTAGE within the product’s enclosure that may be of sufficient magnitude to constitute an electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- Page 5 AL125UL Series - 5 -...
- Page 6 Notes: - 6 - AL125UL Series...
- Page 7 Enclosure Dimensions (H x W x D): AL125UL, AL125ULE, AL125ULP 8.5” x 7.5” x 3.5” (215.9mm x 190.5mm x 88.9mm) 7.25” (184.2mm) 3.625” (92mm) 1.25” (31.8mm) 1.25” 0.6” (15.2mm) 0.6” (15.2mm) (31.75mm) 6.05” (153.7mm) 1.125” 1.125” (28.6mm) (28.6mm) 1” 1” (25.4mm) (25.4mm) 6.05”...
- Page 8 (25.4mm) (25.4mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIAL125ULseries E21S - 8 -...
