U-Line H-9953 Manual

H-5806, H-9953

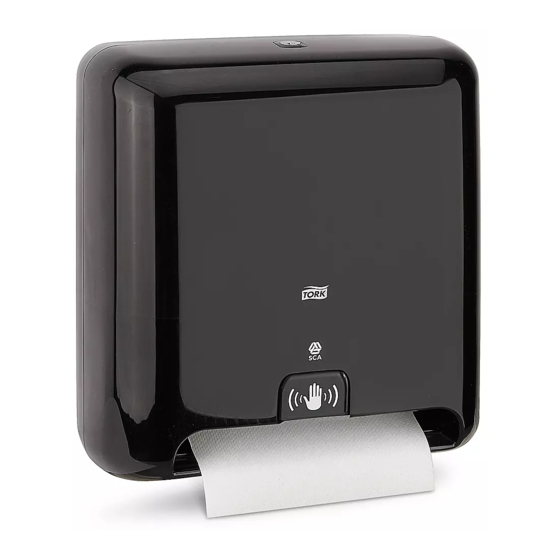

TORK AUTOMATIC
®
TOWEL DISPENSER
TOOLS NEEDED
Electric 6 mm Drill Bit
Drill
Dispenser x 1
USING THE KEY AND OPTIONAL PUSH BUTTON MODE
USING THE KEY
1. To open dispenser while keeping it locked, insert key
at position A. (See Figure 1)
2. Turn and hold key clockwise to open dispenser.
(See Figure 2)
NOTE: Release key back to position A after
closing to lock dispenser.
PAGE 1 OF 17
1-800-295-5510
uline.com
Phillips Tape
Screwdriver Measure
PARTS
Dispenser Key x 1 Wall Anchor x 4
Figure 1
Figure 2
Pour le français, consulter les pages 12-17.
Level
Screw x 4
USING PUSH BUTTON MODE
1. Insert key at position A. (See Figure 1)
2. Turn counterclockwise to position B. (See Figure 3)
3. Remove key and push in lock to open dispenser.
(See Figure 4)
Para Español, vea páginas 6-11.
+
D
Battery x 3
Figure 3
Figure 4
0122 IH-5806
