U-Line H-8883 Quick Start Manual

H-8883

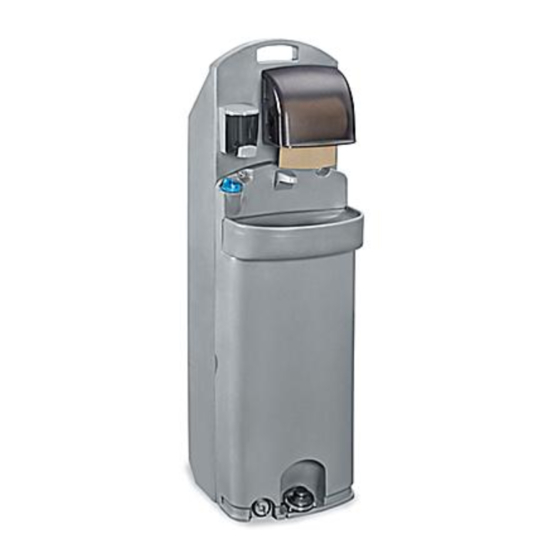

PORTABLE HAND
WASH STATION

FILLING WITH FRESH WATER

Unscrew fill plug located at top left side of wash basin
by pushing down and turning counterclockwise. Insert
a standard garden hose and fill with fresh water to
perform a system check. Depress foot pump a few times
to prime it. If needed, continue filling to the top. Tighten
the plug when finished. (See Figure 1)
Figure 1
Fresh Water
Fill Plug

EMPTYING FRESH WATER

Drain the fresh water by unscrewing plug located at
bottom of sink. Tighten plug when finished.
(See Figure 2)
Figure 2
PAGE 1 OF 6
1-800-295-5510
uline.com

OPERATION

Fresh Water Drain
Pour le français, consulter les pages 5-6.

EMPTYING GRAY (USED) WATER

Wheel the sink to a proper and approved drain location.
Pull hose out from rib on back of holding tank, remove
hose cap and empty gray water. Replace cap when
finished.

PAPER TOWEL DISPENSER

These dispensers are designed to accept towels that
are no wider than 9½" wide, whether using single,
multi-fold or roll towel.

OPENING PAPER TOWEL DISPENSER

Position hands on both sides of dispenser cover. While
pulling out on both sides, lift up the cover and pull down
toward user.

FILLING DISPENSER

FILLING WITH ROLL TOWELS

Place roll towels on spindle with roll coming off toward
user with arrow end of spindle facing toward the right.
Place spindle into right side of dispenser first. Place
left side of spindle into groove on left side of dispenser
and push down in place. Feed roll of towels over front
of paper towel tray. Recommended towels are Uline
Model No. S-7217 and S-7723.

FILLING WITH FOLD TOWELS

Place package of towels on towel tray with fold
of towel facing downward. Pull first towel through
middle opening of paper towel tray. Close cover.
Recommended towels are Uline Model No. S-22310.
Para Español, vea páginas 3-4.
0920 IH-8883
