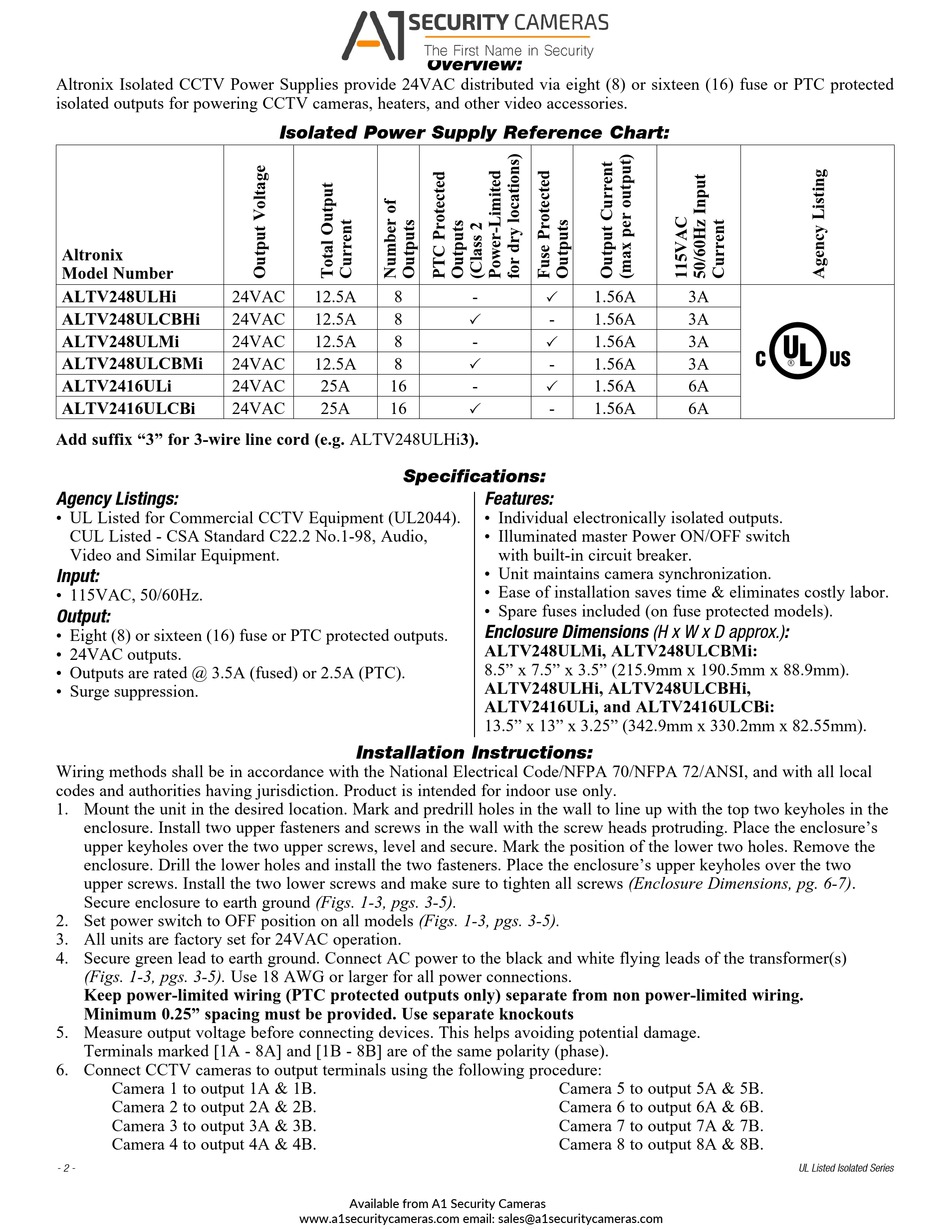

Specifications; Installation Instructions - Altronix Isolated Series Installation Manual

Altronix Isolated CCTV Power Supplies provide 24VAC distributed via eight (8) or sixteen (16) fuse or PTC protected
isolated outputs for powering CCTV cameras, heaters, and other video accessories.
Altronix
Model Number
ALTV248ULHi 24VAC
ALTV248ULCBHi
24VAC
ALTV248ULMi 24VAC
ALTV248ULCBMi 24VAC
ALTV2416ULi
24VAC
ALTV2416ULCBi 24VAC
Add suffix "3" for 3-wire line cord (e.g. ALTV248ULHi3).
Agency Listings:
• UL Listed for Commercial CCTV Equipment (UL2044).
CUL Listed - CSA Standard C22.2 No.1-98, Audio,
Video and Similar Equipment.
Input:
• 115VAC, 50/60Hz.
Output:
• Eight (8) or sixteen (16) fuse or PTC protected outputs.
• 24VAC outputs.
• Outputs are rated @ 3.5A (fused) or 2.5A (PTC).
• Surge suppression.
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with all local
codes and authorities having jurisdiction. Product is intended for indoor use only.
1. Mount the unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes in the
enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure's
upper keyholes over the two upper screws, level and secure. Mark the position of the lower two holes. Remove the
enclosure. Drill the lower holes and install the two fasteners. Place the enclosure's upper keyholes over the two
upper screws. Install the two lower screws and make sure to tighten all screws (Enclosure Dimensions, pg. 6-7).
Secure enclosure to earth ground (Figs. 1-3, pgs. 3-5).
2. Set power switch to OFF position on all models (Figs. 1-3, pgs. 3-5).
3. All units are factory set for 24VAC operation.
4. Secure green lead to earth ground. Connect AC power to the black and white flying leads of the transformer(s)
(Figs. 1-3, pgs. 3-5). Use 18 AWG or larger for all power connections.
Keep power-limited wiring (PTC protected outputs only) separate from non power-limited wiring.
Minimum 0.25" spacing must be provided. Use separate knockouts
5. Measure output voltage before connecting devices. This helps avoiding potential damage.
Terminals marked [1A - 8A] and [1B - 8B] are of the same polarity (phase).
6. Connect CCTV cameras to output terminals using the following procedure:
Camera 1 to output 1A & 1B.
Camera 2 to output 2A & 2B.
Camera 3 to output 3A & 3B.
Camera 4 to output 4A & 4B.
- 2 -
Overview:
Isolated Power Supply Reference Chart:
12.5A 8
12.5A 8
12.5A 8
12.5A 8
25A 16
25A 16

Specifications:

Installation Instructions:

Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
- 1.56A
P
- 1.56A
P
- 1.56A
P
- 1.56A
P
- 1.56A
P
- 1.56A
P
Features:
• Individual electronically isolated outputs.
• Illuminated master Power ON/OFF switch
with built-in circuit breaker.
• Unit maintains camera synchronization.
• Ease of installation saves time & eliminates costly labor.
• Spare fuses included (on fuse protected models).
Enclosure Dimensions (H x W x D approx.):
ALTV248ULMi, ALTV248ULCBMi:
8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm).
ALTV248ULHi, ALTV248ULCBHi,
ALTV2416ULi, and ALTV2416ULCBi:
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm).
Camera 5 to output 5A & 5B.
Camera 6 to output 6A & 6B.
Camera 7 to output 7A & 7B.
Camera 8 to output 8A & 8B.
3A
3A
3A
3A
6A
6A
UL Listed Isolated Series
