Window mode (switching output behavior)
Positive hysteresis:
Level

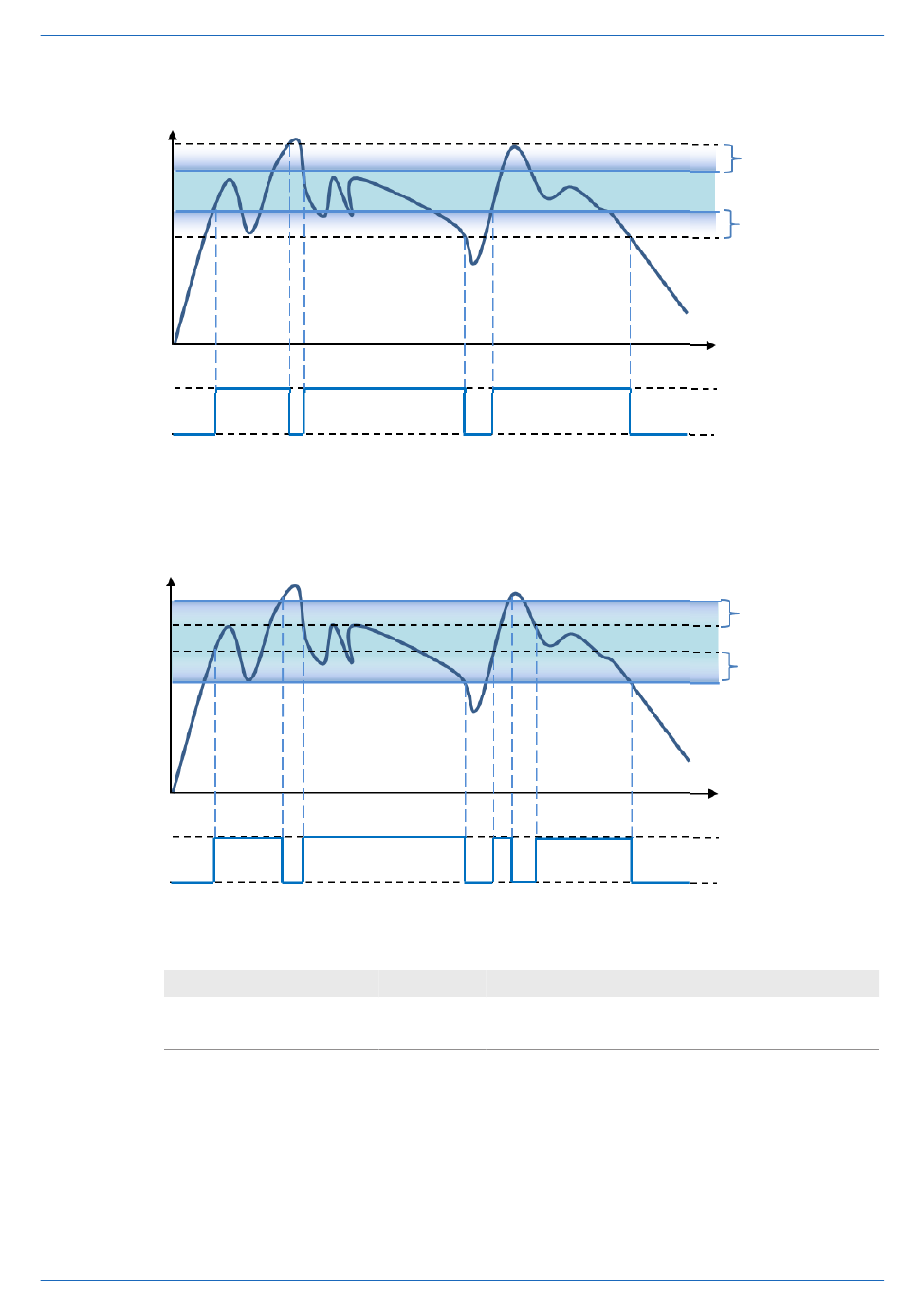

Ill. 18: Behavior of the switching output in window mode (positive hysteresis)
Negative hysteresis:
Level
Ill. 19: Behavior of the switching output in window mode (negative hysteresis)
IO-Link parameter: Hysteresis
Parameter name
Hysteresis.SSC1 Width
8.9

Function of the output

The IO-Link communication principle can also be used as a switching output. In the factory set-
tings, the function of the output is equivalent to the alarm output. This means that the output is
activated as soon as no measured value can be recorded. Through IO-Link this can be switched
to a switching output than can be parameterized.
V2 | OM20/OM30 IO-Link
Window
Window
Values Description
- Enter the hysteresis as a positive or negative nu-
merical value (in mm).
Operating Manual
Functions
Hysteresis
Switching point P1
Switching point P2
Hysteresis
High
Active high level
Low
Switching point P1
Hysteresis
Hysteresis
Switching point P2
High
Active high level
Low
