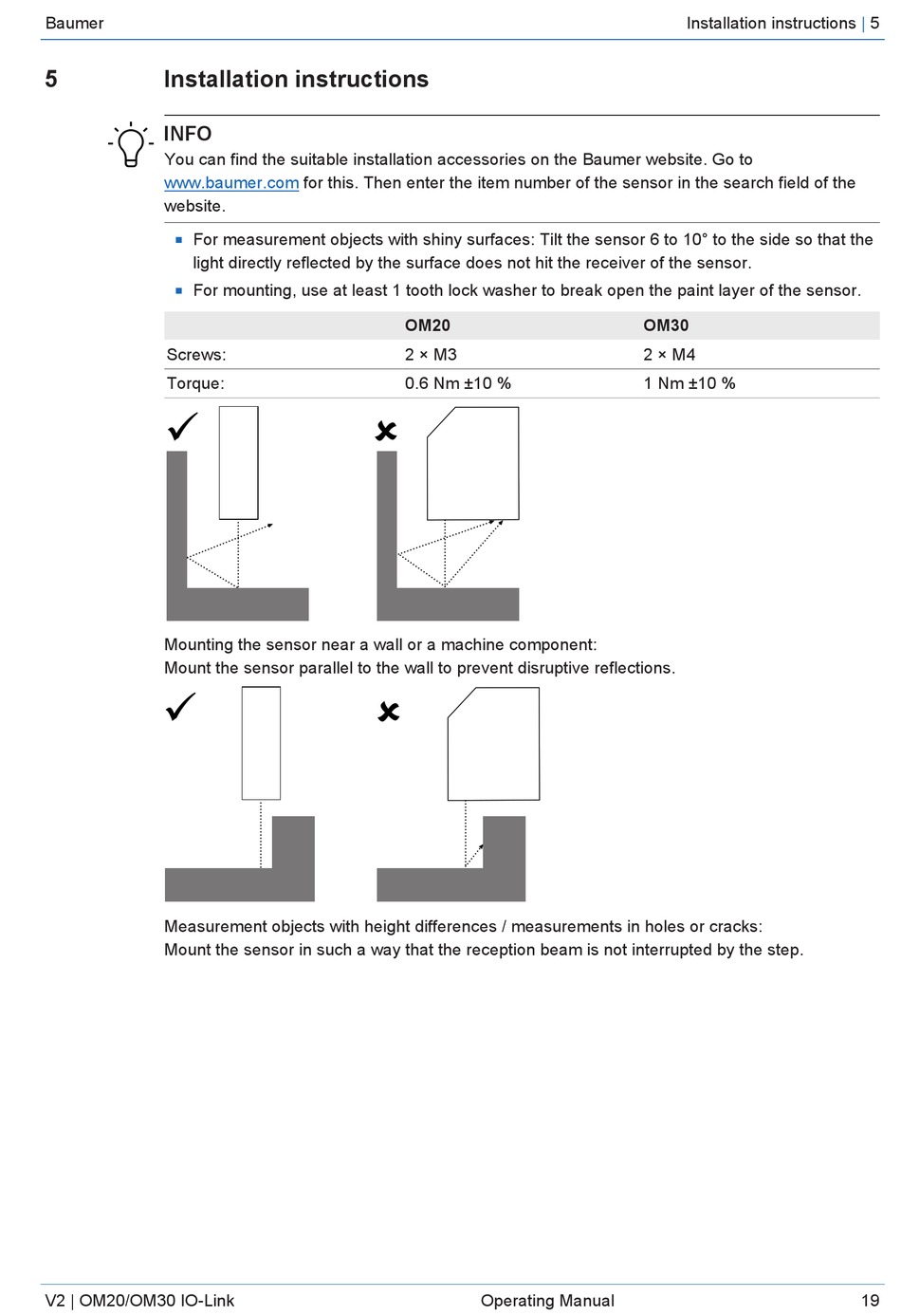

Installation instructions

INFO
You can find the suitable installation accessories on the Baumer website. Go to
www.baumer.com
website.
For measurement objects with shiny surfaces: Tilt the sensor 6 to 10° to the side so that the
n
light directly reflected by the surface does not hit the receiver of the sensor.
For mounting, use at least 1 tooth lock washer to break open the paint layer of the sensor.
n
Screws:
Torque:
ü
Mounting the sensor near a wall or a machine component:
Mount the sensor parallel to the wall to prevent disruptive reflections.
ü
Measurement objects with height differences / measurements in holes or cracks:
Mount the sensor in such a way that the reception beam is not interrupted by the step.
V2 | OM20/OM30 IO-Link
for this. Then enter the item number of the sensor in the search field of the
OM20
2 × M3
0.6 Nm ±10 %
û
û
OM30
2 × M4
1 Nm ±10 %
