- Page 1 Operating Manual Laser distance sensors EN-US OM20/OM30...
-
Page 2: Table Of Contents
6.3 Connecting the sensor to electricity...................... 20 7 Commissioning............................21 7.1 Factory settings ............................ 21 7.2 Setting up IO-Link ..........................21 8 Functions ..............................22 8.1 Filter..............................22 8.2 Trigger mode ............................25 8.3 Zero position ............................26 Operating Manual OM20/OM30 | V1... - Page 3 9.5 Device status ............................40 9.6 Operating time ............................40 9.7 Histogram function..........................41 10 Maintenance..............................44 10.1 Cleaning the sensor..........................44 11 Troubleshooting ............................45 11.1 Return and repair..........................45 11.2 Accessories ............................45 OM20/OM30 | V1 Operating Manual...
-
Page 4: About This Document
In addition, the local occupational health and safety regulations and general safety regulations apply. The illustrations in this manual are examples only. Deviations are at the discretion of Baumer at all times. Warnings in this manual Warnings draw attention to injury or material damage. -
Page 5: Labels In This Manual
In addition, you can find the following information, among other things, in digital format at www.baumer.com: Operating manual Data sheet 3D CAD drawing Quickstart Dimensional drawing Connection diagram & pin assignment IODD file Certificates (EU conformity declaration, etc.) OM20/OM30 | V1 Operating Manual... -
Page 6: Name Plate
About this document Baumer Name plate Swiss made Ill. 1: Name plate Short item name (OMxx item number) Production date Serial number Operating Manual OM20/OM30 | V1... -
Page 7: Safety
Used electrical and electronic devices may not be disposed of in household waste. The product contains valuable raw materials that can be recycled. There- fore, dispose of this product at the appropriate collection point. For additional in- formation, visit www.baumer.com. OM20/OM30 | V1 Operating Manual... -
Page 8: Laser
Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to laser notice No. 50, dated June 24, 2007 Products with the following type codes are specified according to laser class 2: OM20-xxxxx.HV.xxx OM30-xxxxx.HV.xxx Operating Manual OM20/OM30 | V1... -
Page 9: Description

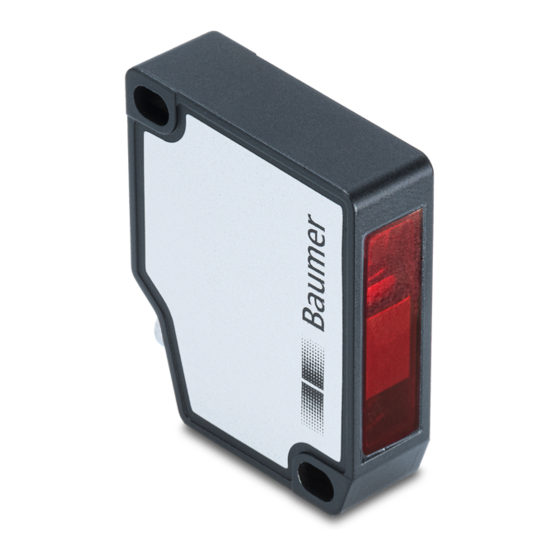

Baumer Description Description Structure OM20 OM30 Ill. 2: Structure OM20/OM30 Sensor LEDs Front panel Teach button M8 plug, 4-pin Imprint of laser information & name plate General functionality The sensor measures the distance to a measurement object by angle calculation (triangulation principle). -
Page 10: Measurement Field
Factory setting: ZP = 0 mm Basis for: ▪ Output measured values ▪ Analog value ▪ Switching points Capable of parameterization via: ▪ IO-Link ▪ Teach button Operating Manual OM20/OM30 | V1... -
Page 11: Operating And Display Elements
IO-Link). When the teach button is pressed for longer than 12 seconds, the sensor enters oper- ating mode without performing a parameterization. Parameterization via the Teach button is done according to the procedure described in the fol- lowing. OM20/OM30 | V1 Operating Manual... -
Page 12: Ill. 3 Analog Measurement Field (Inverted)
The characteristic curve of the analog output can be inverted by the teaching process (negative gradient). To do this, teach in the maximum distance for P1 and the minimum distance for P2. Analog measurement field Ill. 3: Analog measurement field (inverted) Operating Manual OM20/OM30 | V1... - Page 13 Yellow and green LEDs blink simultaneously with 2 Hz. Result: ü Teach-in OK: Green and yellow LEDs light up briefly. Afterwards, the sensor goes back to operating mode. ü Teach-in not OK: Yellow and green LEDs blink simultaneously with 8 Hz. OM20/OM30 | V1 Operating Manual...
-
Page 14: Io-Link
Bit 8 to 15: Scale Scale of the measured value The transmitted scale value corresponds to exponents of Scale 10 (i.e.: 10 Formula for calculating the measurement value: Scale ▪ Measurement value (MDC ) × 10 × Unit Operating Manual OM20/OM30 | V1... - Page 15 A detailed description of the IO-Link functions is found in the operating manual. For a detailed description of the IO-Link functions, see Functions [} 22]. For a detailed descrip- tion of the diagnostic data, see Diagnostic data [} 37]. OM20/OM30 | V1 Operating Manual...
-
Page 16: Dimensional Drawing
Description Baumer Dimensional drawing 34,5 31,6 Teach-in Ill. 4: Dimensional drawing OM20 40,3 13,6 Teach-in Ill. 5: Dimensional drawing OM30 Operating Manual OM20/OM30 | V1... -
Page 17: Transport And Storage
Keep away from the sun. Avoid mechanical agitation. Storage temperature: -10 ... +60 °C Ambient humidity: 20 ... 85 % When storing for longer than 3 months, regularly check the general status of all parts and the packaging. OM20/OM30 | V1 Operating Manual... -
Page 18: Installation Instructions
Installation instructions Baumer Installation instructions INFO You can find the suitable installation accessories on the Baumer website. Go to www.baumer.com for this. Then enter the item number of the sensor in the search field of the website. For measurement objects with shiny surfaces: Tilt the sensor 6 to 10° to the side so that the light directly reflected by the surface does not hit the receiver of the sensor. - Page 19 Prevent the detection ranges of the receivers from overlapping. Only the sensor’s own laser spot may be in the detection range of the receiver. ü û Mounting for round measurement objects: Align the sensor on the same axis as the measurement object to prevent reflections. OM20/OM30 | V1 Operating Manual...
-
Page 20: Electrical Installation
/ IO-Link BU – Blue BU (3) BK – Black Connecting the sensor to electricity Instruction: a) Ensure that the system is disconnected from power. b) Connect the sensor according to the pin assignment. Operating Manual OM20/OM30 | V1... -
Page 21: Commissioning
5 min Device Access Locks Data Storage Lock False Type OM20-P0026.xx.xxx: SSC1 Param.SP 1 = -2 mm Type OM20-P0026.xx.xxx: SSC1 Param.SP 2 = +2 mm Setting up IO-Link Instruction: w Download the IODD file for the sensor from one of the following two websites (the IODD file can be found via the item number of the sensor): www.baumer.com... -
Page 22: Functions
The median value is the mea- sured value located right “in the center” if the measured values are sorted by size. Time Ill. 6: Moving Median filter Raw data Data after filtering with Moving Median Operating Manual OM20/OM30 | V1... -
Page 23: Ill. 7 Moving Average Filter
Moving Average filter: 1 - 256 values In the factory settings, the filter is set to Highest. In general, the more measured values per fil- ter, the better the repeatability and the higher the reproducibility of the results. OM20/OM30 | V1 Operating Manual... - Page 24 Custom: Enter the filter length as a nu- merical value. MovAvgFilter.Custom Mov- Freely configurable filter length for Mov- ing Average Length ing Average. MovMedianFilter.Custom Freely configurable filter length for Mov- Moving Median Length ing Median. Operating Manual OM20/OM30 | V1...
-
Page 25: Trigger Mode
Purpose/application: Use with dynamic applications (e.g. measurement objects on a con- veyor belt) to detect all measurement objects. IO-Link parameter: Sampling Mode (Trigger) operating mode Parameter name Values Description OperationMode.Sampling Trigger mode Free Running, Mode Interval OperationMode.Sampling Time interval for the Interval trigger Time mode OM20/OM30 | V1 Operating Manual... -
Page 26: Zero Position
Parameter name Values Description Zero Position.Zero Position Zero position Baumer commands – Zero Position Teach Teach in the current position as the new zero position. Measurement range The purpose of the Measurement range function is to mask objects that are not wanted for the measurement (e.g. -
Page 27: Processing Of Invalid Measured Values
The last valid value is maintained during the time period. The type of processing of invalid measured values has no effect yet at this point. Digital output Analog output Hold Time Hold Time Hold Time Hold Time Signal quality Ill. 8: Processing of invalid measured values – example 1 OM20/OM30 | V1 Operating Manual... - Page 28 ▪ Last valid: Last valid measured value ▪ near: min. output point ▪ far: max. output point Process Value Disruption Time period during which an invalid mea- Filter.Hold Time sured value is suppressed. Operating Manual OM20/OM30 | V1...
-
Page 29: Switching Points
▪ Window mode (SP1 and SP2) Point, Window SSC1 Param.SP1 Distance at which the SSC1 is activated or inacti- vated. SSC1 Param.SP2 Distance at which the SSC1 is activated or inacti- vated. Only relevant for window mode. OM20/OM30 | V1 Operating Manual... -
Page 30: Polarity
Window mode: The switching output is activated as soon as the measured value is outside the window of SP1 and SP2. IO-Link parameter: Polarity Parameter name Values Description SSC1 Config.Polarity Polarity of the switching output Active Low, Ac- tive High Operating Manual OM20/OM30 | V1... -
Page 31: Hysteresis
The hysteresis is situated between the switching points (window mode) or points towards lower measured values (point mode). With a negative hysteresis, the minimum distance of the switching points is equal to the value of the hysteresis times two. OM20/OM30 | V1 Operating Manual... -
Page 32: Ill. 16 Behavior Of The Switching Output In Point Mode (Positive Hysteresis)
Active low level Level Ill. 16: Behavior of the switching output in point mode (positive hysteresis) Negative hysteresis: Switching point P1 Hysteresis High Active low level Level Ill. 17: Behavior of the switching output in point mode (negative hysteresis) Operating Manual OM20/OM30 | V1... -
Page 33: Ill. 18 Behavior Of The Switching Output In Window Mode (Positive Hysteresis)
Active high level Ill. 19: Behavior of the switching output in window mode (negative hysteresis) IO-Link parameter: Hysteresis Parameter name Values Description Hysteresis.SSC1 Width Enter the hysteresis as a positive or negative nu- merical value (in mm). OM20/OM30 | V1 Operating Manual... -
Page 34: Function Of The Output
Max. limit of the analog measurement range range Zero position You have the option of inverting the characteristic curve of the analog measurement field. not inverted (pos. sensitivity) inverted (neg. sensitivity) Distance Ill. 21: Analog measurement field – inverted Operating Manual OM20/OM30 | V1... - Page 35 Teach in max. limit of the analog mea- Output Scale at Analog Max surement range (alternatively to the Teach button) Baumer commands – Output Set the analog measurement range to the Scale is set to the possible max. max. possible limits...
-
Page 36: Function Of The Teach Button
Teach button should be deactivated after a teach-in process (in min). With a value of 0, the Teach button is always activated. With a value of 255 (0xFF), the Teach button is perma- nently deactivated. Operating Manual OM20/OM30 | V1... -
Page 37: Diagnostic Data
The maximum speed for dynamic applications is limited by the measurement rate. Filter settings do not affect the measurement rate. IO-Link diagnostic data: Measurement rate Name Description Measurement Values. PV1 Rate Output of the measuring rate. OM20/OM30 | V1 Operating Manual... -
Page 38: Reply Delay
Trigger Output Measurement Calculation Reply delay Ill. 22: Reply delay INFO Filter settings do not affect the reply delay. IO-Link diagnostic data: Reply delay Name Description Measurement Values. PV1 Response Delay Output of the reply delay. Operating Manual OM20/OM30 | V1... -
Page 39: Exposure Reserve
Decrease the distance to the measurement object or opti- mize the alignment of the sensor. LEDs blink if a critical signal is reached. The alarm output is activated when no measured value can be recorded anymore. OM20/OM30 | V1 Operating Manual... -
Page 40: Device Status
Output of the operating time since the last power up. Operation Time.Resetable Output of the operating time since an individually configurable point in time (by reset). Operation Time.Lifetime Operating time since the initial power up. Operating Manual OM20/OM30 | V1... -
Page 41: Histogram Function
Bin 1 50 mm < 75 mm Bin 2 75 mm < 100 mm Bin 3 100 mm < 125 mm Bin 4 125 mm < 150 mm Bin 5 150 mm < 175 mm OM20/OM30 | V1 Operating Manual... - Page 42 0. This results in the following distribution: Value range min. Value range max. Number of measure- ments Bin 1 < 5 Bin 2 < 10 Bin 3 < 15 Bin 4 < 20 Bin 5 < 25 Operating Manual OM20/OM30 | V1...
- Page 43 Exposure Reserve Resetable Histogram.Range Start Start of valid range Exposure Reserve Resetable Histogram.Range End End of valid range Exposure Reserve Resetable Histogram.Nbr of Bins Number of intervals/bins Exposure Reserve Resetable Histogram.Bin 1 - 20 Bin 1 - 20 OM20/OM30 | V1 Operating Manual...
-
Page 44: Maintenance
Do not use scouring agents, solvents, or other aggressive cleaning agents. c) Do not use jets of liquid for cleaning, for example, a high-pressure cleaner. d) Do not scrape off soiling with sharp-edged items. Interior cleaning No interior cleaning of the sensor is required. Operating Manual OM20/OM30 | V1... -
Page 45: Troubleshooting
Remedy: Reduce the ambient light (e. g. with a cover). 11.1 Return and repair In case of complaints, please contact the relevant sales unit. 11.2 Accessories You can find accessories on the website at: https://www.baumer.com OM20/OM30 | V1 Operating Manual... - Page 46 Ill. 1 Name plate ............................Ill. 2 Structure OM20/OM30........................Ill. 3 Analog measurement field (inverted)....................12 Ill. 4 Dimensional drawing OM20........................ 16 Ill. 5 Dimensional drawing OM30........................ 16 Ill. 6 Moving Median filter..........................22 Ill. 7 Moving Average filter .......................... 23 Ill.
