8 | Functions
8.7

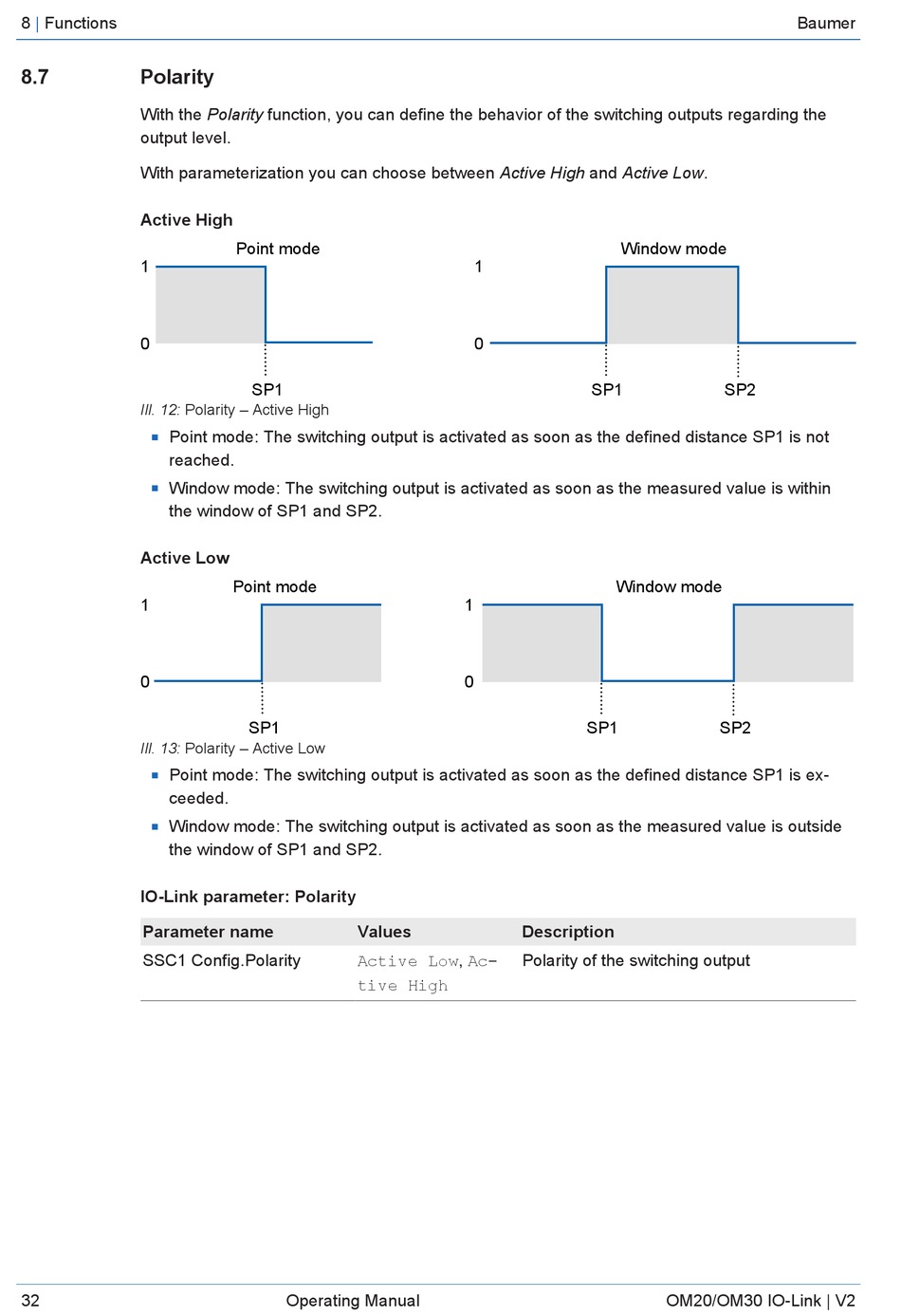

Polarity

With the Polarity function, you can define the behavior of the switching outputs regarding the
output level.
With parameterization you can choose between Active High and Active Low.
Active High
1
0
Ill. 12: Polarity – Active High
Point mode: The switching output is activated as soon as the defined distance SP1 is not
n
reached.
Window mode: The switching output is activated as soon as the measured value is within
n
the window of SP1 and SP2.
Active Low
1
0
Ill. 13: Polarity – Active Low
Point mode: The switching output is activated as soon as the defined distance SP1 is ex-
n
ceeded.
Window mode: The switching output is activated as soon as the measured value is outside
n
the window of SP1 and SP2.
IO-Link parameter: Polarity
Parameter name
SSC1 Config.Polarity
32
Point mode
SP1
Point mode
SP1
Values
Active Low, Ac-
tive High
Operating Manual
Window mode
1
0
SP1
Window mode
1
0
SP1
Description
Polarity of the switching output
Baumer
SP2
SP2
OM20/OM30 IO-Link | V2
