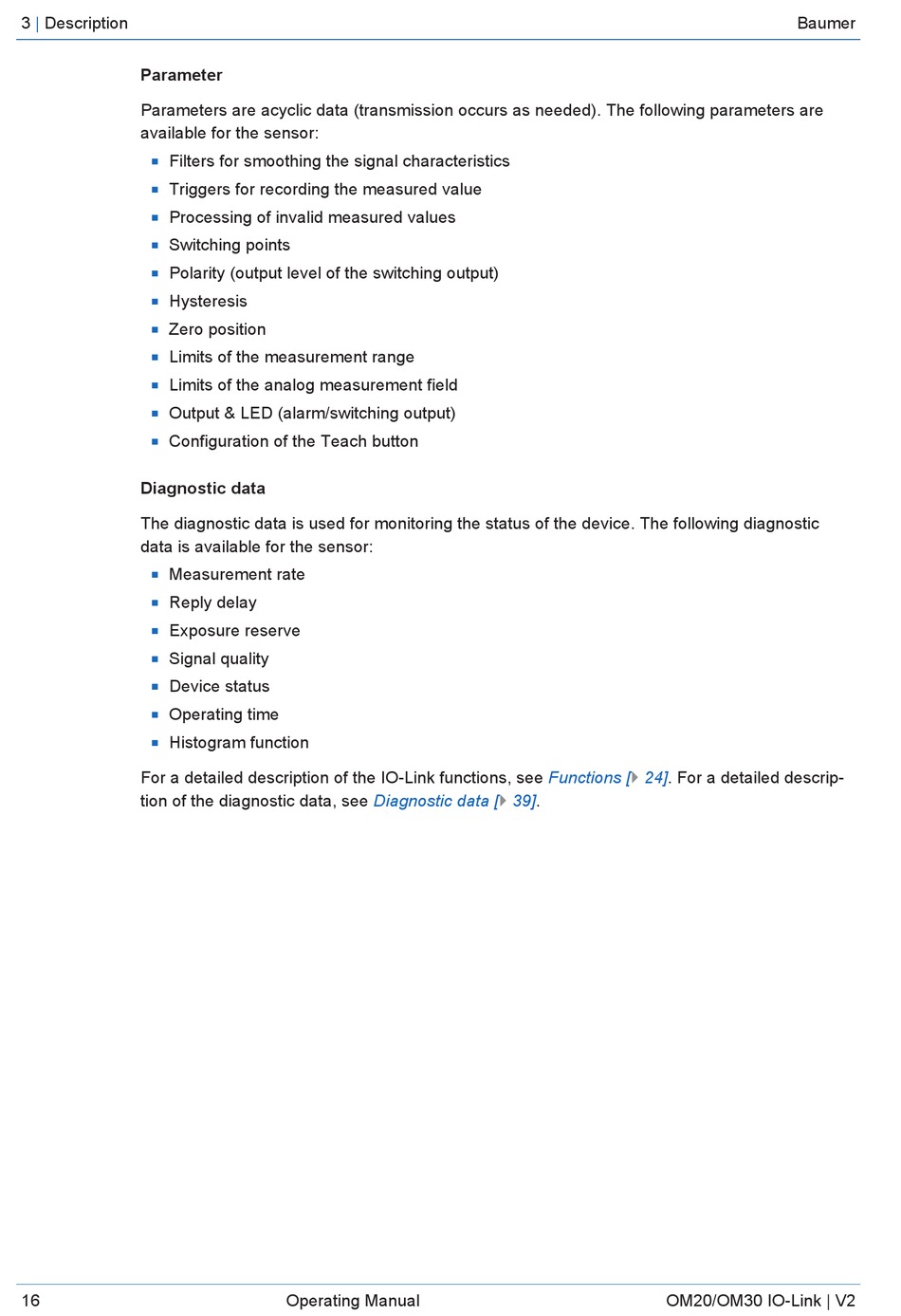

Baumer OM20 IO-Link Operating Manual page 16

3 | Description
Parameter
Parameters are acyclic data (transmission occurs as needed). The following parameters are
available for the sensor:
Filters for smoothing the signal characteristics
n
Triggers for recording the measured value
n
Processing of invalid measured values
n
Switching points
n
Polarity (output level of the switching output)
n
Hysteresis
n
Zero position
n
Limits of the measurement range
n
Limits of the analog measurement field
n
Output & LED (alarm/switching output)
n
Configuration of the Teach button
n
Diagnostic data
The diagnostic data is used for monitoring the status of the device. The following diagnostic
data is available for the sensor:
Measurement rate
n
Reply delay
n
Exposure reserve
n
Signal quality
n
Device status
n
Operating time
n
Histogram function
n
For a detailed description of the IO-Link functions, see
tion of the diagnostic data, see
16
Diagnostic data
Operating Manual
Functions [} 24]. For a detailed descrip-
[} 39].
