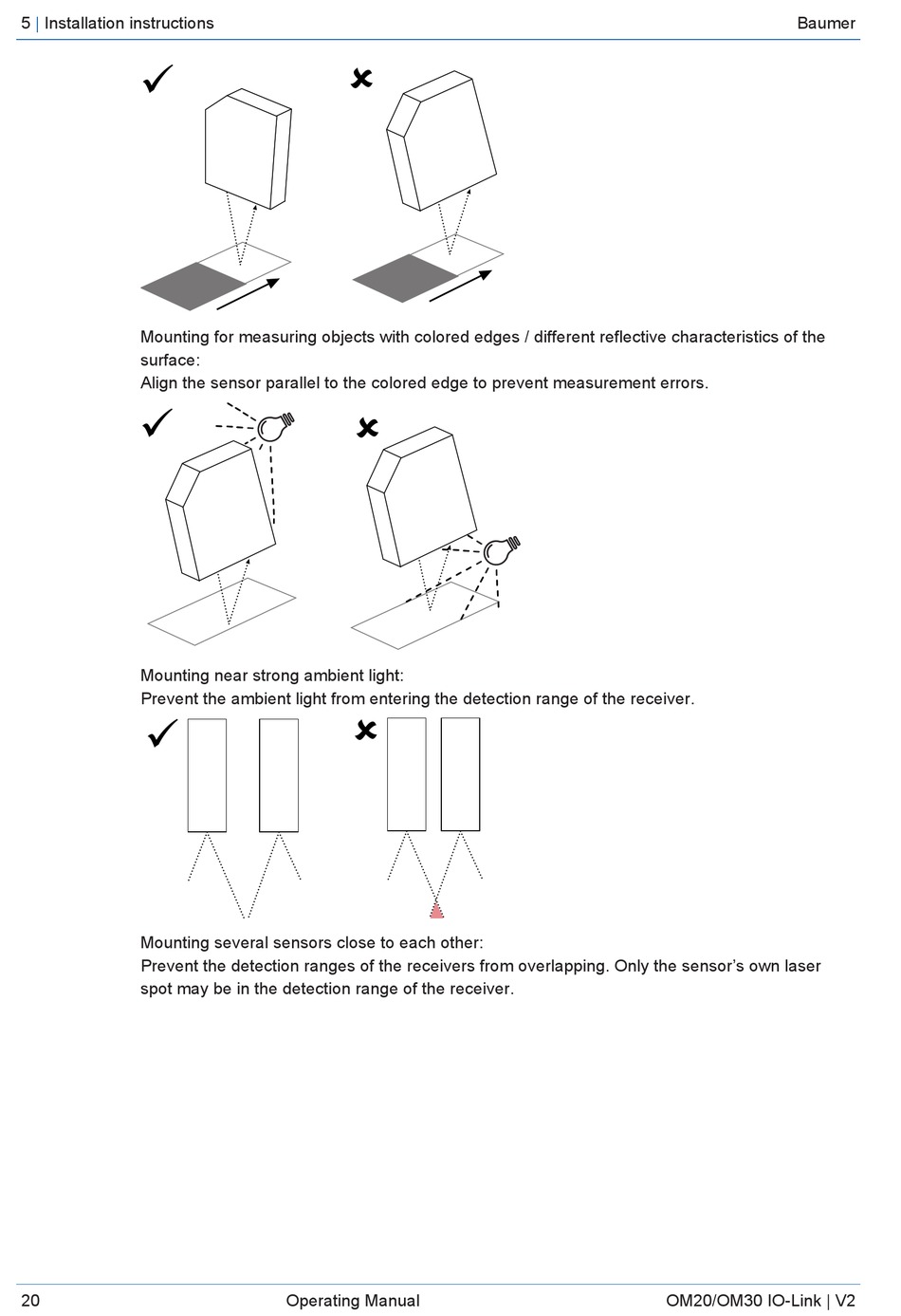

Installation instructions

Mounting for measuring objects with colored edges / different reflective characteristics of the

surface:

Align the sensor parallel to the colored edge to prevent measurement errors.

Mounting near strong ambient light:

Prevent the ambient light from entering the detection range of the receiver.

Mounting several sensors close to each other:

Prevent the detection ranges of the receivers from overlapping. Only the sensor's own laser

spot may be in the detection range of the receiver.
