PCI Photon 8 Port RS232

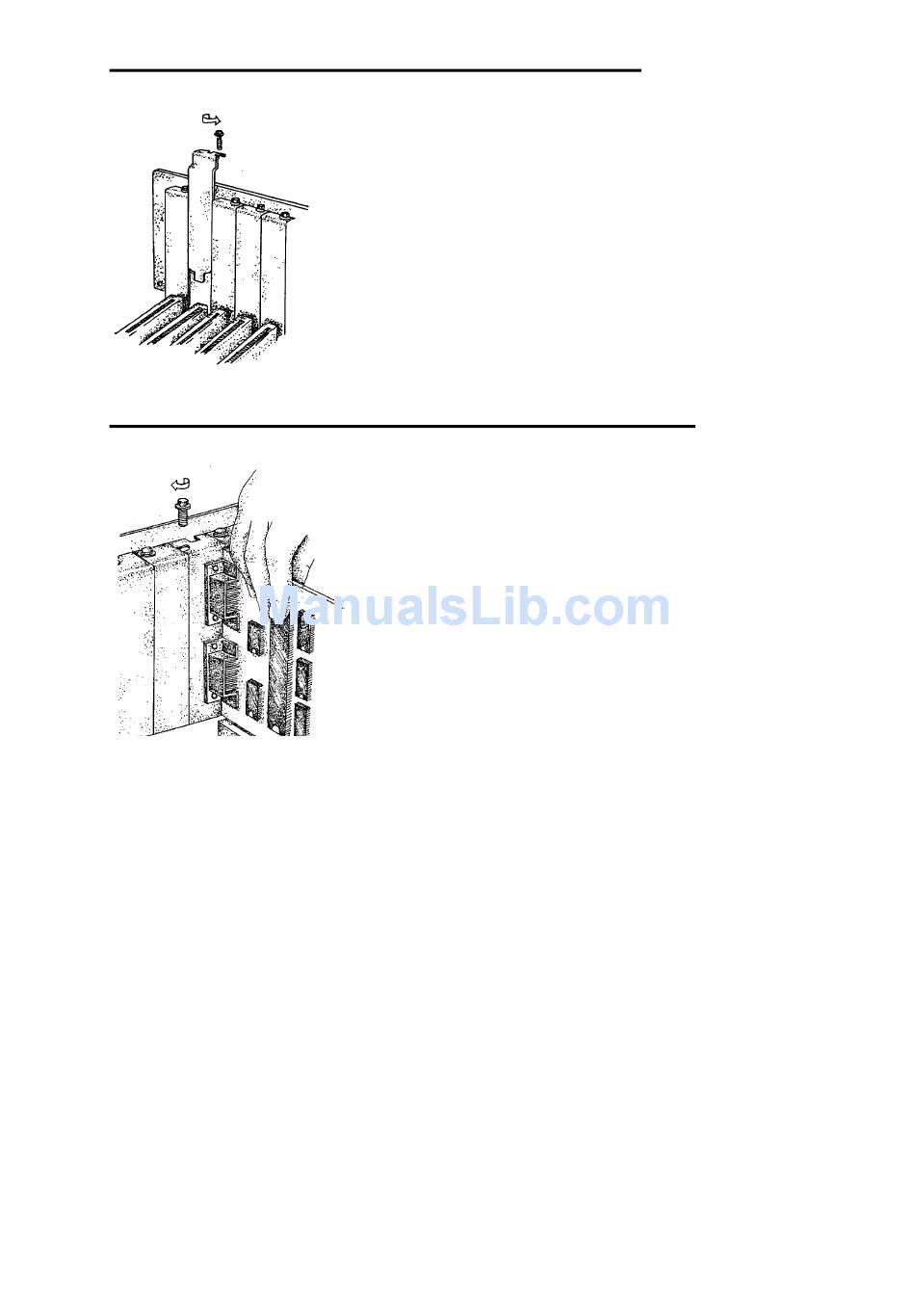

Figure 2-1. Removing Blanking Cover
Figure 2-2. Inserting The PC Serial Card.
STEP 5: The D connector should fit neatly through the slot's aperture to
the outside world. NB. Use the screw kept back from the blanking cover
to screw the PC Serial retaining bracket into the PC back panel housing.
STEP 6: Now replace the system units cover by carefully sliding
it down and back over the system unit. Replace the cover
mounting screws.
Attach all the cables.
The PC should power on in the normal way.
STEP 3: Choose an empty appropriate
expansion slot. Remove the blanking cover
protecting the slot on the PC back panel.
KEEP the blanking cover screw safely for
later (Figure 2-14).
STEP 4: Now insert the PC Serial card in
the available slot. Be careful to ensure that
the gold plated PCB fingers fits neatly into
the I/O expansion connector. Press down
firmly but evenly on the top of the PC
Serial card (Figure 2-15).
Installing the Card
Chapter 2 Page 9
