PCI Photon 8 Port RS232
After copying the files Windows 95 will then detect each of
the serial ports in turn and install them as Photon 8 Port RS232
communications ports.

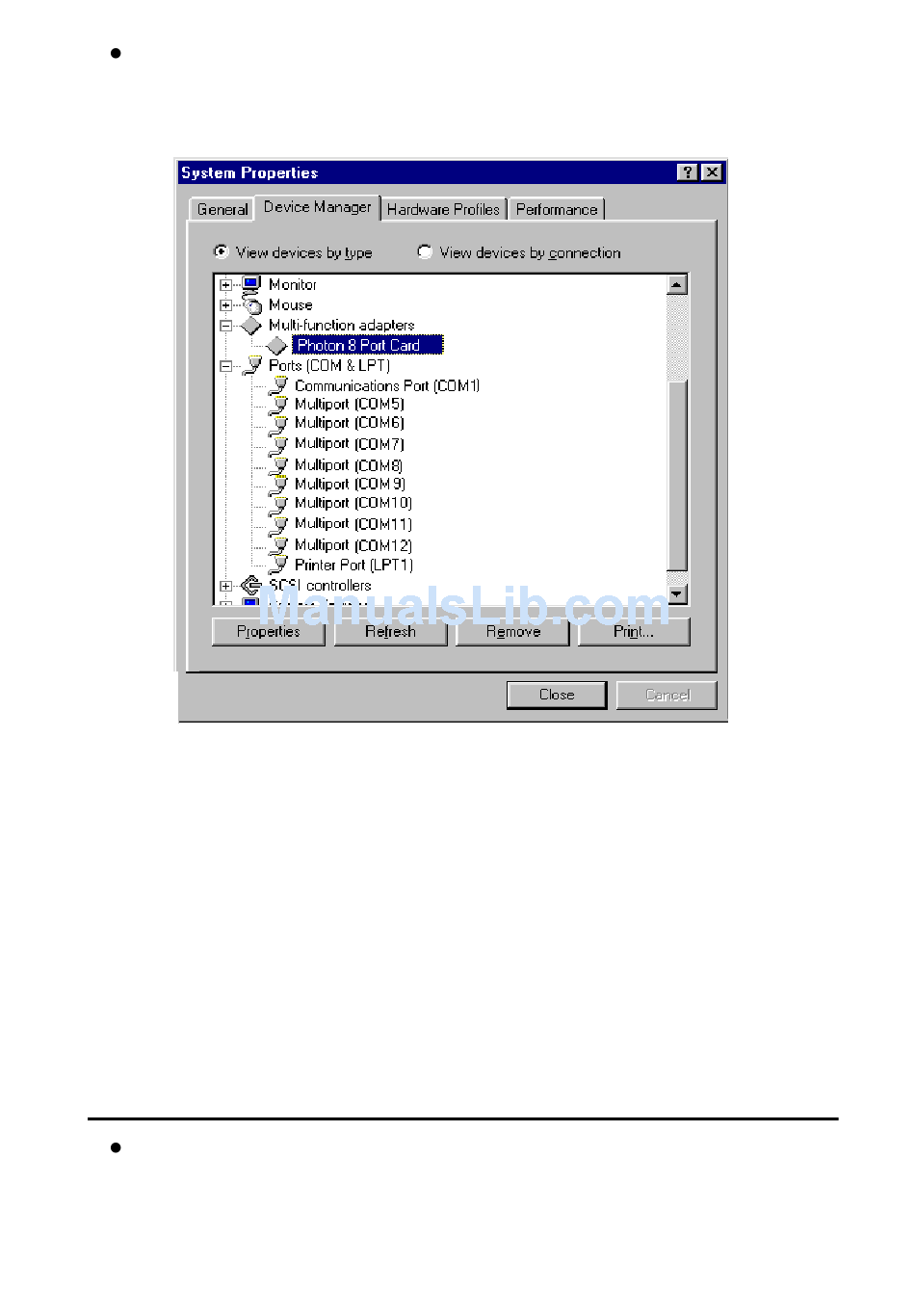

The Device Manager, reached by clicking on 'System' in the
Control Panel, now shows the presence of the PCI Photon 8 Port
RS232 Card under Multi-function adapters. See below.
If there are no other serial port cards installed above COM 4, the
PCI Photon 8 Port RS232 will appear as COM5 –COM12. If there
are already more than 5 COM ports installed the Multiport card
ports will appear as the next highest available COM ports. PCI
Photon Cards do not appear with the COM1 to COM4 assignment
since these ports are reserved for legacy PCI cards.
PCI Photon 8 Port RS232 Card Settings In Win95/98.
Double clicking a card entry under the "Multi-Function
Adapters", in Device Manager will display general properties for
the selected card.
Software Installation
Chapter 3 Page 27
