PCI Photon 8 Port RS232
Select the OK button to finish adding the port. This will display a
Windows restart message, but do not restart until you have
installed all eight ports. Be sure to restart Windows after all serial
ports have been added so that the new configuration takes effect.

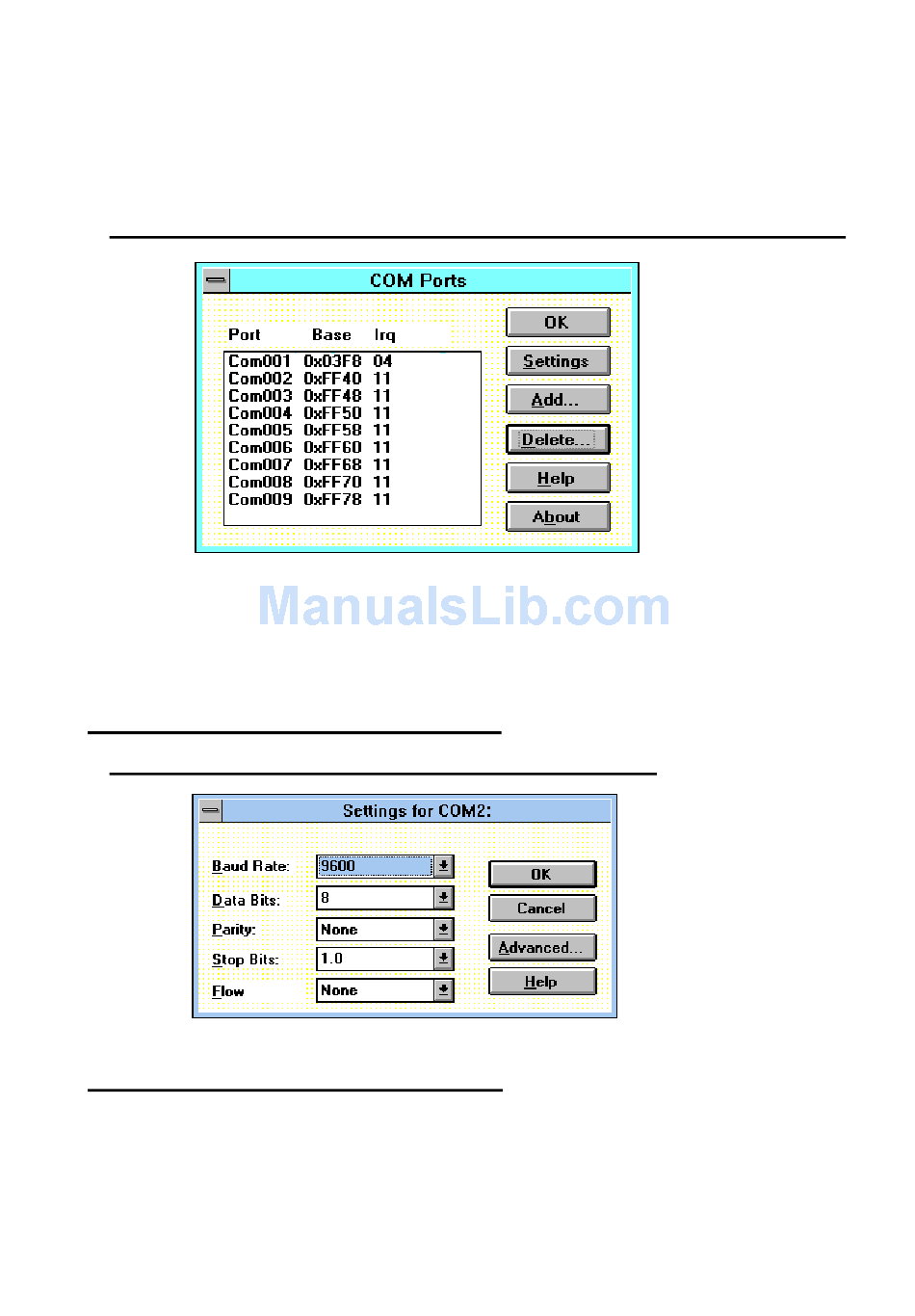

Figure 3-3. After Adding a PHOTON Card (COM1 present).
Note: Adding a port automatically sets default values for the
communications settings to 9600 baud, no parity, 8 data bits and 1
stop bit. These values can be changed as described below.

Configuring The COM Ports.

Figure 3-4 PCI Photon Card Comms Settings

Changing Serial Port Settings

Once the Photon 8 Port RS232 card has been installed it
may be necessary to change the communications settings in the
COM Ports to match the baud rate, parity settings etc. of the
remote serial device.
Software Installation

Chapter 3 Page 23
