PCI Photon 8 Port RS232
Index

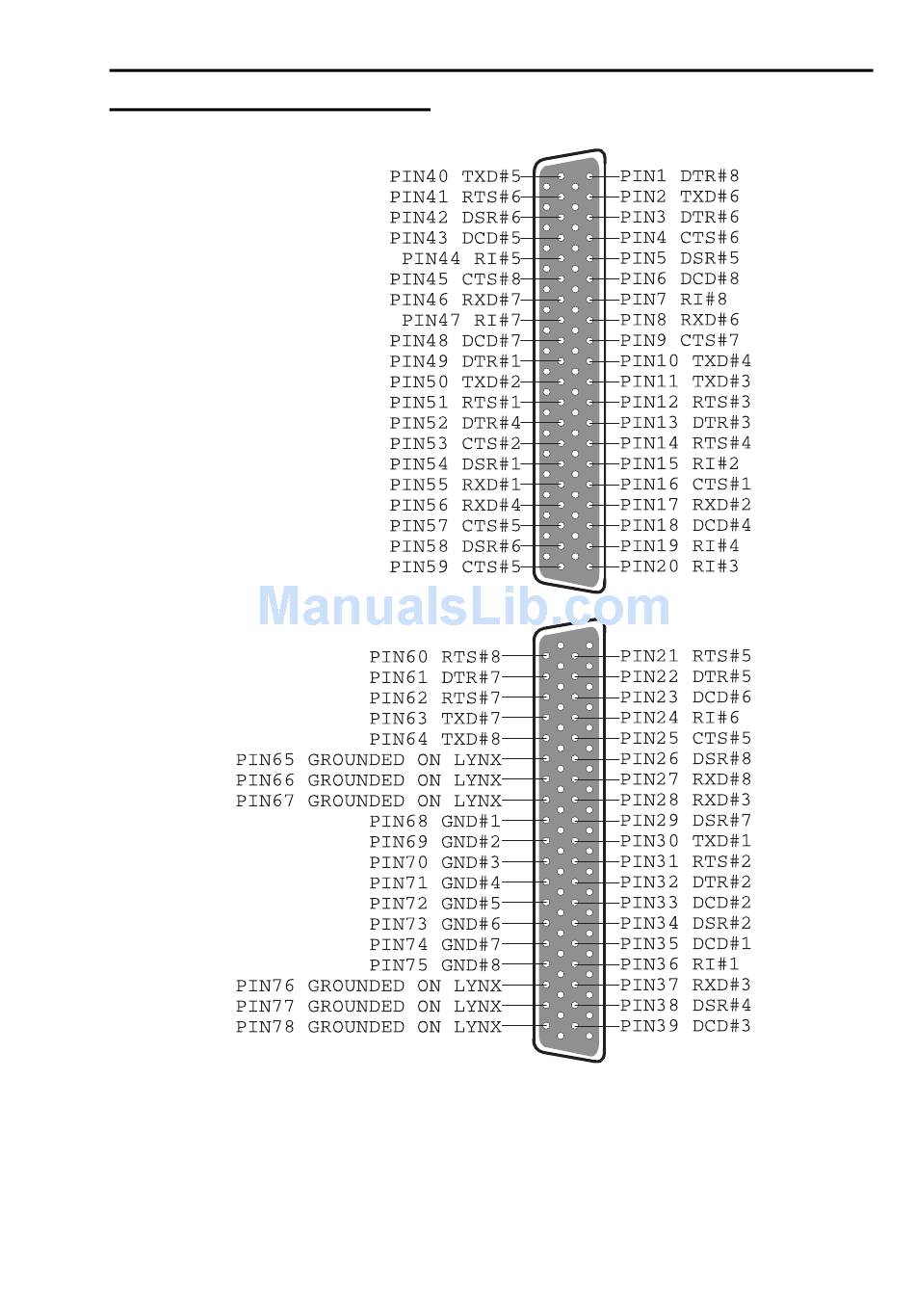

Figure 6-6. Pin Outs of the 78 pin D connector on the
AT Lynx 8 Port RS232
NOTE: On the above diagram the # symbol followed by a number
is used to notify a port on the cable e.g. #4 means port 4, hence
PIN47 DTR#4 is pin 47 of the 78way connector, which
corresponds
to
the
DTR
function
on
port
4.
Chapter 4 Page 47
