3 Before you start...

Please ensure that there is a 3-5mm gap on the leading edge
of the door – this is required to ensure the product functions correctly.
1 Please check that all parts are working correctly.
2 Fit the lever handles to the keypad and inside handle.
3 Enter the factory preset code as printed on the code card.
4 Rotate the lever handle on the keypad downwards.
5 Re-enter the code and turn the handle upwards ensuring that the spindle follower on the back of the keypad rotates each time.
6 A click should be heard every time a correct code is entered as the lever handle is turned.
Both lever handles on the keypad and inside handle should return easily under their own spring pressure.
Please refer to 'fitting the lever handles' below.
If you intend to change the code from the factory setting please refer to 'how to change your code number'
instructions before installing the product.

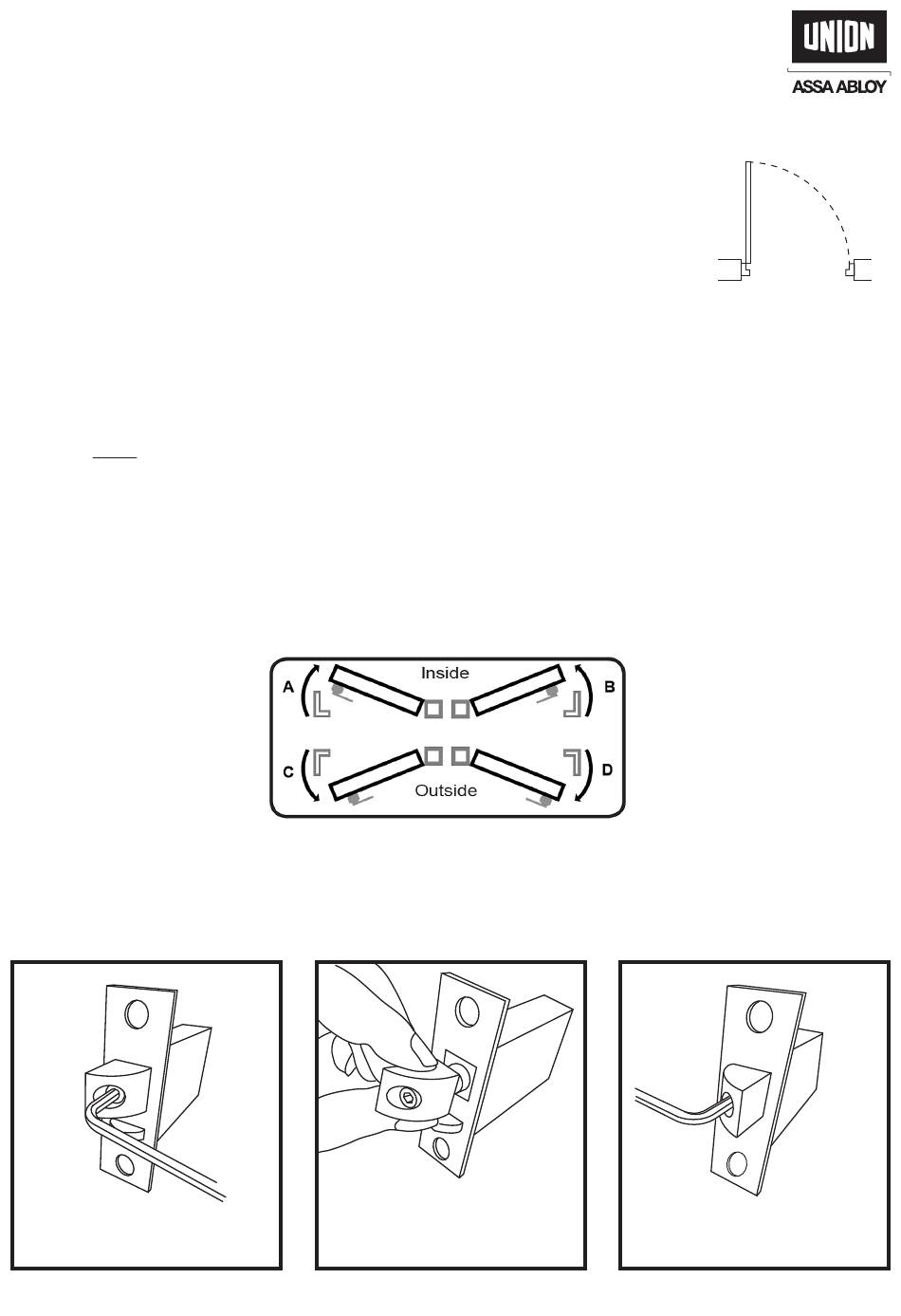

4 Determining the hand of the door

The hand of the door is determined with the door in its closed position from the exterior or keypad side of
the door, as shown in the diagram below
A) Right hand door – door opens
inward (push), hinged on the
right side.
C) Right hand inward opening –
door opens outward (pull), hinged
on the right side.

5 Re-handing of the latch

If required, re-hand the latch to suit the handing of the door by following the diagrams below:
5.1
Insert 4mm Allen key into latch head.
Loosen screw.
6
5.2
Remove latch from lock case and rotate
180 degrees and insert back into case.
Leading
edge
B) Left hand door – door opens
inward (push), hinged on the
left side.
D) Left hand inward opening –
door opens outward (pull), hinged
on the left side.
5.3
Tighten screw in latch head using allen key.
