Assa Abloy ACCENTRA 500F Installation Instructions

500F & 514F
Trim
Installation Instructions
514F Trim Only:
WARNING
Attention Installer: Any retrofi t or other fi eld modifi cation to a fi re rated opening can potentially impact the fi re rating of the
opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specifi c
situation. When retrofi tting any portion of an existing fi re-rated opening, or specifying and installing a new fi re-rated opening,
please consult with a code specialist or local code offi cial (Authority Having Jurisdiction) to ensure compliance with all appli-
cable codes and ratings.
1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com
Copyright © 1995, 2023, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in
whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

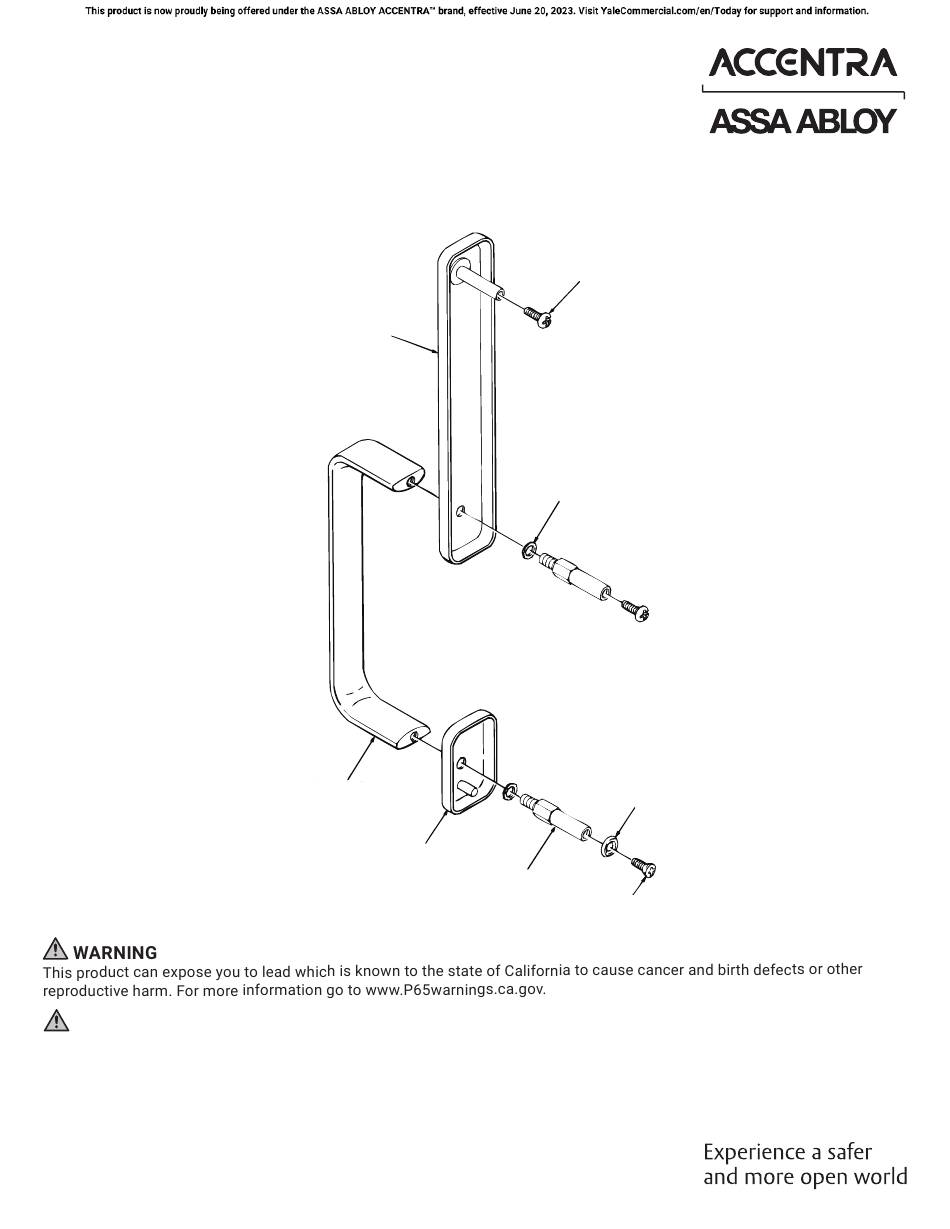

Assemble pull, offset away from
edge of door.
Use components marked(*).
Escutcheon Assembly
Offset Pull*
Pull Base Assembly*
(2) 1/4-20 Round Head
Machine Screws
 1-3/4 (44) Door:
Packed with device
 Others: As Ordered.
(2) Lockwashers*
#14 Finishing Washer
(514F only)
(2) Posts*
1/4-20 Oval Head Machine
Screw
(514F only)
80-8470-0500-000 01/24
