5 Whilst holding the inner gear the coding disc can be rotated using your finger.

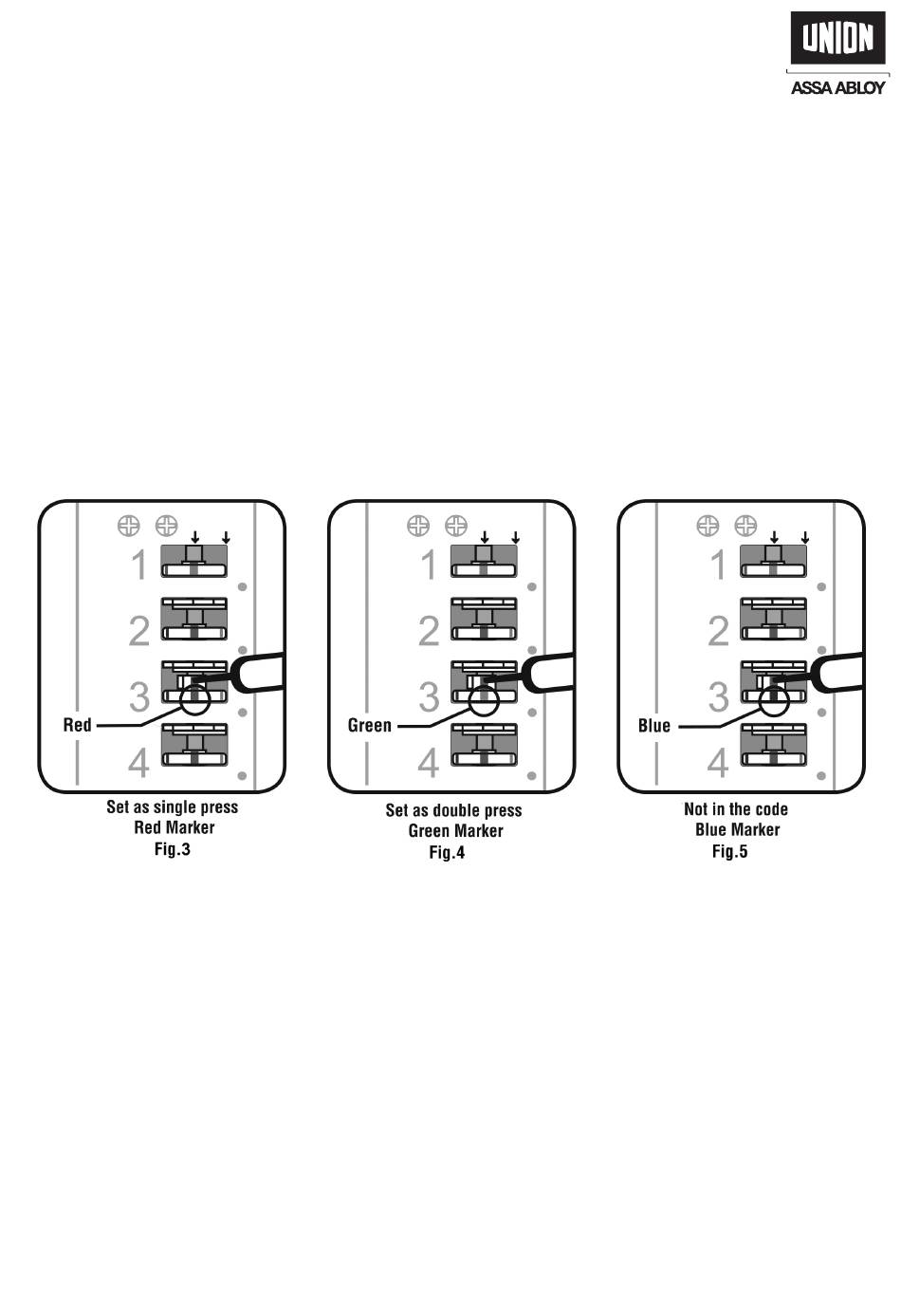

If you have chosen the number in the code as a single press, align the red marker of the coding disc with red line of the inner tab
(as per fig.3).
If you have chosen the number as a double press align the green marker of the coding disc with the red line of the inner gear
(as per fig.4)
If you do not want to include the number in the code align the blue line of the coding disc with the red line of the
inner gear (as per fig.5).
6 With the selected marker in position the inner gear can be released and it should drop back into position. The inner gear and tab
should no longer be visible.
If the inner gear is still exposed after releasing the pressure, rotate the coding disc with your finger to the left until the inner gear
drops into position.
7 Once the first digit has been set, the principle is the same for any other button that you want to set in the code.
Once you have programmed all the required numbers in your new code, turn the handle to reset the coding chamber. Ensure
that all the numbers that are in the code have the coloured markers aligned with the centre line arrow on the keypad cover plate.
Make sure that any digit that is not in the code has the blue marker of the coding disc aligned with the centre line arrow.
8 When the new code has been set, check that the code is working correctly. Enter the code and operate the lever, you will see the
spindle follower rotate on the back of the keypad.
It is advised to test 2-3 times before fitting onto the door.
Please ensure that the new code is recorded and is in possession of the end user.
