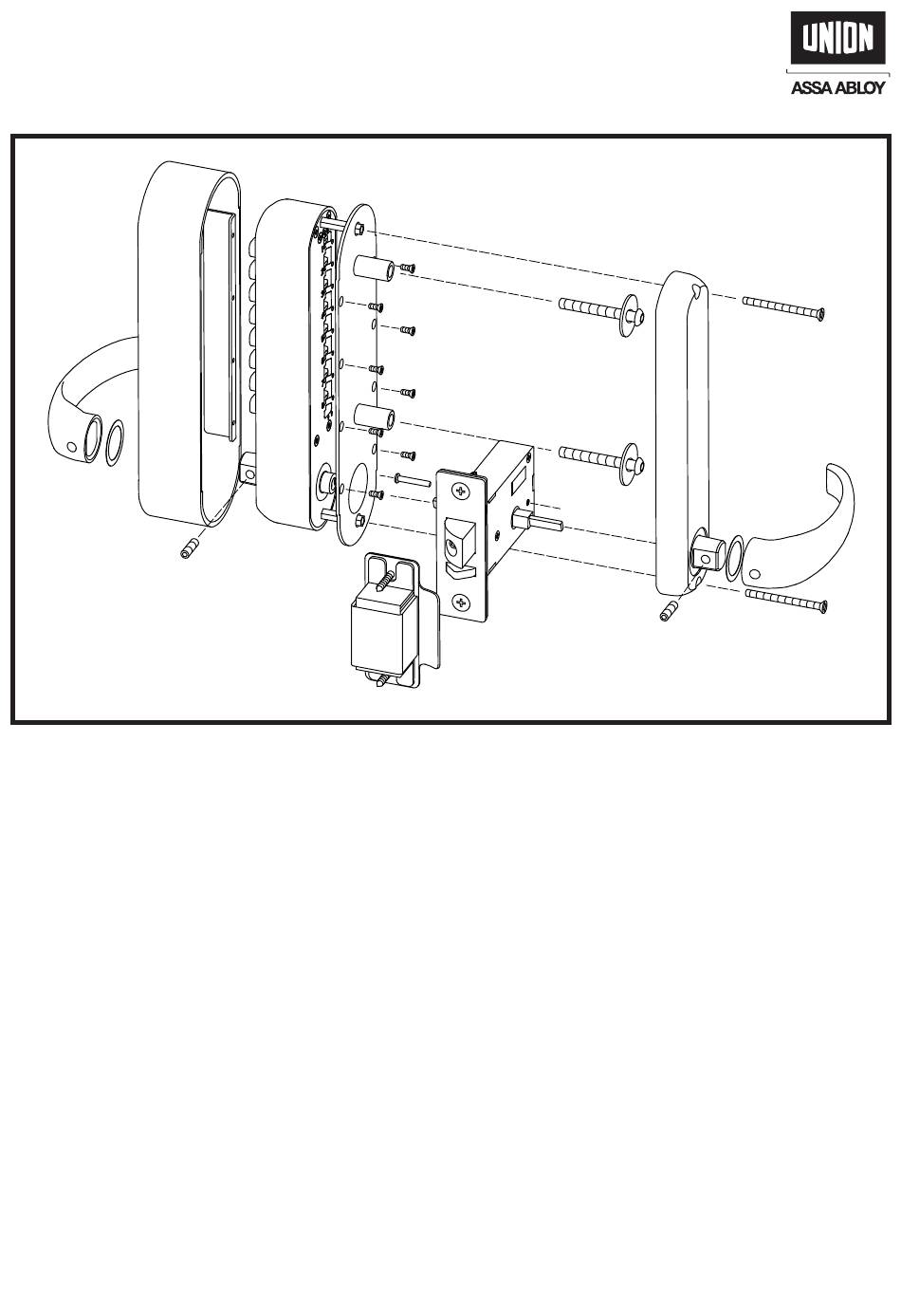

15 Exploded view of Assembly

16 Operating the unit

Before entering a code turn the handle to ensure the coding chamber is clear of any
buttons that may have been pressed.
Enter the code and turn the handle, the latch bolt will disengage and the door will open.
After the handle is operated the unit will reset and the code will need to be entered again
in order to open the door.
