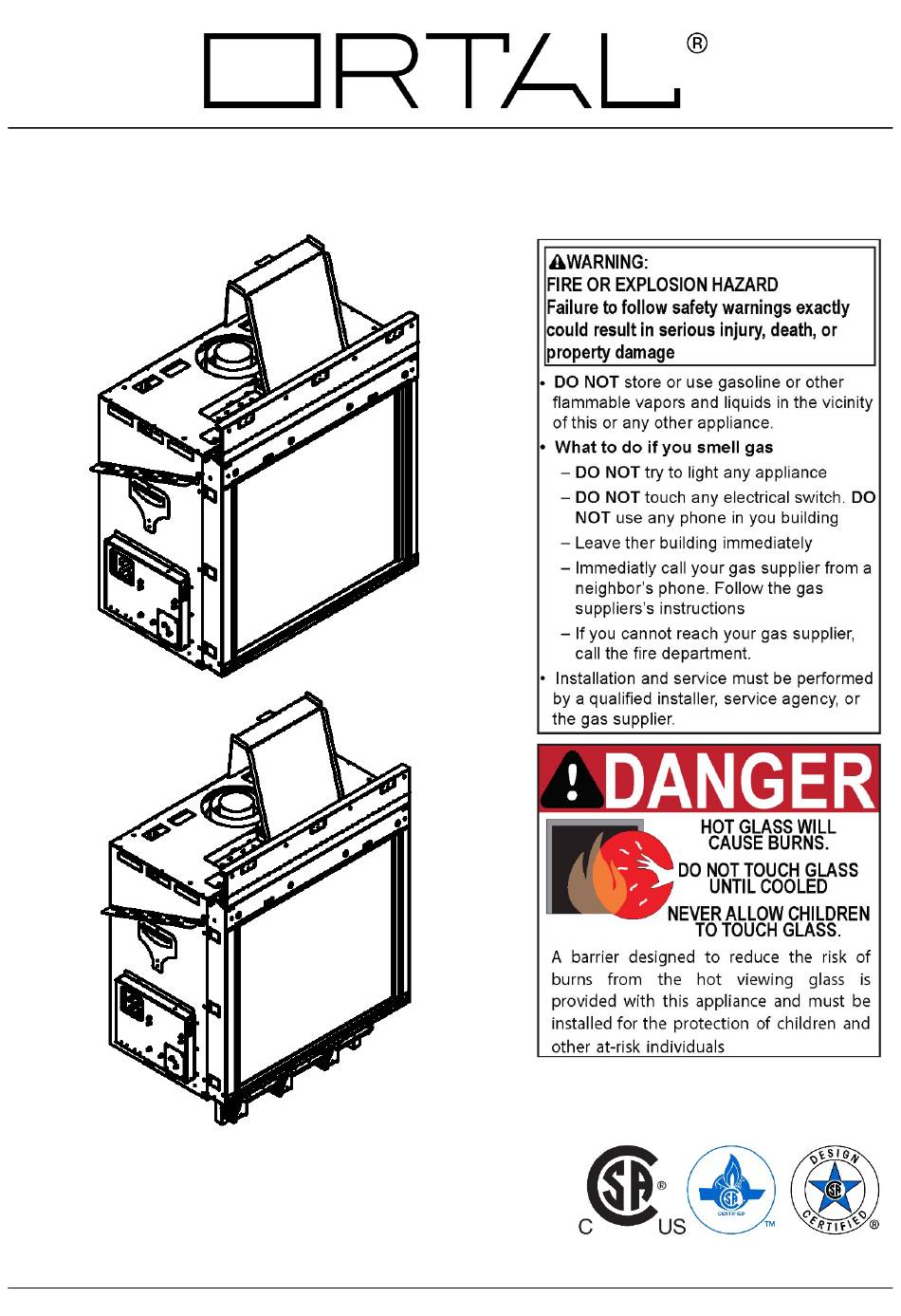

- Page 1 Installation and Operation Manual Wilderness Traditional Series Wilderness Traditional Series: Wilderness Traditional 36 Wilderness Traditional 42 Ortal Installation Manual: Wilderness Traditional Series (V1.1)
-
Page 2: General
WARNING: MATERIAL USAGE All materials and objects used to carry out the installation must be certified/approved or specified by Ortal and are suitable for use. Do NOT install the system with different materials or objects than those approved for installation by Ortal. -
Page 3: Table Of Contents
Table of Contents “→” Denotes new or updated information. General → Safety Information and Warnings Product Information Models Certification Rating Label Zero-Clearance Stand-Offs Fireplace Legs Installation Prior to Installation Locate the Fireplace Fireplace Installation First Trip to Site: Planning Second Trip to Site: Installation Third Trip to Site: Startup Post-Installation Initial Burning Period... - Page 4 High Altitude Requirements Gas and Electrical Components Electrical → Electrical Requirements Pairing the Remote and Receiver Wiring Diagrams Carbon Monoxide Detector Wiring Diagrams → Home Automation Wiring Diagram Driftwood Firelog Set Log Placement for Traditional 36 Log Placement for Traditional 42 Log Base Position Adjustment Adjustment Instructions Operation...
-
Page 5: Product Information
For more information on Power Venting, please refer to the Power Vent System Installation and Operation Manual. Venting is not supplied by Ortal with the fireplace. The fireplace is certified to be used with, and can be obtained from, the ... - Page 6 For more information on Power Venting, please refer to the Power Vent System Installation and Operation Manual. Venting is not supplied by Ortal with the fireplace. The fireplace is certified to be used with, and can be obtained from, the ...
- Page 7 For more information on Power Venting, please refer to the Power Vent System Installation and Operation Manual. Venting is not supplied by Ortal with the fireplace. The fireplace is certified to be used with, and can be obtained from, the ...
- Page 8 For more information on Power Venting, please refer to the Power Vent System Installation and Operation Manual. Venting is not supplied by Ortal with the fireplace. The fireplace is certified to be used with, and can be obtained from, the ...
-
Page 9: Certification
Certification Wilderness Traditional series fireplaces have been tested and approved by CSA Group for safety and efficiency for use with Natural Gas (NG) and Propane (LP) only, and NOT for use with solid fuels. CSA Group is approved by the American National Standards Institute (ANSI) as an Accredited Standards Developer. -
Page 10: Zero-Clearance Stand-Offs
Zero-Clearance Stand-Offs The fireplace has zero-clearance stand-offs fastened to the body of the fireplace as shown in the figures below. Stand-offs must be fully extended upon installation. Zero-Clearance Stand-Offs (Isometric View) Zero-Clearance Stand-Offs (Top View) Fireplace Legs The Traditional series fireplace legs varies by heat barrier choice. Screen Fireplace Double Glass Fireplace The screen fireplace does not come with legs and can sit... -
Page 11: Installation
Installation Prior to Installation Locate the Fireplace Keep the following factors in mind when selecting a location for the fireplace: Fireplace clearance requirements (review “General Clearances” sections). Heat release and air intake requirements (review “Heat Release Requirements” and “Air Intake Requirements” sections). ... -
Page 12: Third Trip To Site: Startup
In addition, the installer must review and explain the following to the owner: Safety warnings Fireplace operation Warranty requirements Maintenance requirements Glass is hot during and after operation If any questions or concerns arise, owner must contact the local Ortal dealer/installer for support. ... -
Page 13: Building Around The Fireplace
Building Around the Fireplace Building Checklist The following building checklist is a quick reference for a typical Ortal Wilderness Traditional Series installation. This list is not exhaustive and does not supplement thorough review of the installation manual. Fireplace Location: Ensure the location allows for min. 40” clearance from viewing area to furniture and other combustibles. -
Page 14: Framing
The fireplace may be recessed into the wall. Refer to diagrams and values below and in the following pages for details. Framing dimensions are the same for combustible and non-combustible framing. Wilderness Traditional Series Framing Model... -
Page 15: Chase Floor/Platform
Chase Floor/Platform The fireplace must be installed on a flat, solid, continuous surface. Surface can be wood, concrete, metal, and other typical solid floor types. Surface material is not required to be non-combustible. The distance from the bottom of the fireplace opening to the floor varies depending on heat barrier (see figures below). Screen Fireplace Double Glass Fireplace Raised Platform Option: To raise the fireplace higher than 1... - Page 16 → Clearance to a Side Wall The fireplace viewing area is zero-clearance to a side wall. A side wall is defined as a wall that meets the viewing area at a 90° angle. = Building Material The temperature on the side wall can get as high as 150°F above ambient temperature. While the fireplace certification allows for this temperature variance, building and finish materials will have their own limitations.
-
Page 17: Heat Release
Heat Release A heat release is an opening in the fireplace chase that allows the heat inside the chase to passively circulate into an interior room. This heat is generated convectively as the fireplace heats up. It is separate from exhaust heat produced at the combustion chamber of the fireplace. - Page 18 Vertical Heat Release: Split Front Vertical Heat Release: Full Side The heat release is oriented vertically and split between the two The heat release is oriented vertically. Entire heat release is sides of the chase. on one side of the fireplace chase. Split Front Vertical Heat Release Full Vertical Heat Release on One Side →...
-
Page 19: Air Intake
Air Intake When installing a fireplace with a double glass heat barrier, it is essential to maintain cool air flow between the double glass panels. For this purpose, an opening must be provided toward the bottom of the wall to allow the double glass fans to circulate room air through the glass panels and up into the chase. - Page 20 Air Intake for a Platform NOTE: Please refer to the “Platform” section for details on platform construction.
-
Page 21: Mounting A Tv/Artwork
The decision to install a television above an Ortal fireplace is up to the discretion of the owner. TV and art manufacturers may specify that their product should not be installed on, near or above a heat source. Ortal will not be held liable for any adverse effects on a TV, artwork or other equipment located near the Ortal fireplace. -
Page 22: Chase Area Minimum
Recessed TV/Artwork Chase Area Minimum To ensure the convective heat within the chase passively moves to the heat release at an optimal rate, all parts of the interior of the chase must be minimum 124 sq. in. in size at any given point. To determine if your chase meets this requirement, use the following equation at the narrowest part of the chase. -
Page 23: Recessed Ledge Detail
Recessed Ledge Detail A ledge over the top of a fireplace that is less than 24 inches from the top of the fireplace viewing area must maintain a minimum of 12 inches from the top of the viewing area to the bottom of the building material. Entire structure must be non- combustible (framing and finish). -
Page 24: Structural Weight Support
The following drawing shows a recommended approach to this type of installation. Please note that these drawings are not to scale. All fireplace drawings with correct dimensions are available on the Ortal website. -
Page 25: Step-By-Step Chase Construction
Step-by-Step Chase Construction The following checklist is a simplified overview of typical chase construction for an Ortal Wilderness Traditional Series installation. This list is not exhaustive and does not supplement thorough review of the installation manual. Step 1 BUILD BACK AND SIDE WALLS Frame the back and side walls according to framing requirements. -
Page 26: Finishing
Finishing The following diagrams show various finish applications. Diagrams apply to both combustible and non-combustible finish material. IMPORTANT NOTES: Finish requirements do not vary between fireplaces with a screen or double glass heat barrier. Diagrams below alternate depicting each heat barrier. This is for illustrative purposes only and does not mean a specific heat barrier is required for that application. -
Page 27: Recessed Installation
Recessed Installation Diagram applies to both combustible and non-combustible finish material. The finish must maintain at least ” clearance to the fireplace to both the top and bottom recesses. No material is permitted to extend past the metal lip surrounding the fireplace viewing area. This area must be unobstructed to allow the heat barrier and inside glass panel to be removable. -
Page 28: Venting
Power Vent: a fan-assisted direct vent system that boosts airflow for vent configurations with too much constriction. Review “Vent Configuration Diagrams” section to determine if your fireplace needs a power vent. NOTE: See the Ortal Power Vent Manual for more details on power venting. →... -
Page 29: Vent Clearances
Offset Maximum Up to 180˚ of offset (elbows) can be used in the vent configuration. If the vent configuration exceeds this maximum, consider an Ortal Power Vent System, which can allow for up to 540˚ of offset. See the Ortal Power Vent Manual for details. -
Page 30: Vent Configuration Diagrams
The following sections provide information for calculating vent configuration distances. For vent configurations that exceed these maximums, consider Ortal’s Power Vent System. See the Ortal Power Vent Manual for details. NOTE: It is not required to maintain ¼” of rise per foot of venting. -
Page 31: Vent Restrictor Sizing Guidelines
Vent Restrictor Sizing Guidelines The information in this section will help you calculate the correct restrictor selection for your vent configuration. The table below show the restrictor required for a specific rise to run vent configuration. Any venting pathway that does not appear in the tables requires approval from the manufacturer. - Page 32 SCENARIO A The vent configuration has two vertical 45˚offsets. No additional length for the (H) calculation for the restrictor plate size is needed. For example: Total height of duct work = 6 feet (V) Length between the center of the two 45˚ elbows = (B) = 3 feet The (H) calculation is (H) = (B) so the restrictor plate size is 50mm, per the table.
-
Page 33: Vent Termination
Vent Termination Horizontal Termination Clearance Diagram Location Country Minimum Clearance Description Clearance above grade, veranda, porch, deck, or balcony. US & 12 inches NOTE: On private property where termination is less than 7 feet above a sidewalk, driveway, Canada deck, porch, veranda, or balcony, use of a listed cap shield is suggested. →... - Page 34 Covered Alcove: spaces open only on one side and with an overhang Horizontal Termination Clearances Continued: Covered Alcove Application Location Country Minimum Clearance Description Clearance under non-vinyl veranda, porch, deck, balcony, or overhang. NOTE: Termination in a covered alcove space is permitted with the dimensions specified. 1.
-
Page 35: Vertical Termination Clearance Diagram
Vertical Termination Clearance Diagram NOTE: This chart does not apply to a chimney shroud application. See the “Chimney Shroud” section on the next page for more information. → TERMINATION CAP NOTE: A Low Profile Termination Cap can negatively impact flame appearance and is not recommended for use with the fireplace. -
Page 36: Chimney Shroud
→ Chimney Shroud → Top Open Keep a minimum 6-inch clearance around the diameter of the cap’s side edge and extending above and below the cap. → Sides Open Keep a minimum 6-inch clearance around the diameter of the cap’s side edge, and a minimum 10-inch clearance above the top of the cap. -
Page 37: Co-Axial To Co-Linear Conversion
failure to conform to all installation requirements will void the applicable warranty. This appliance must be properly connected to a venting system in accordance with the Ortal’s installation instructions. Operation of this appliance when not connected to a properly installed and maintained venting system can result in carbon monoxide (CO) poisoning and possibly death. -
Page 38: Vent Configuration
Vent Configuration Minimum Vertical Rise: 10 feet (see diagram below) Maximum Vertical Rise: 40 feet (see diagram below) Offsets: Two 45˚ offsets may be used directly on the fireplace with up to a 6-foot section between them. The minimum ... -
Page 39: Gas
The fireplaces are approved for use with natural gas (NG) or propane (LP) only. No other fuel types are permitted. Gas Pressures Inlet Heat Input Orifice Fireplace Electrical Manifold Pressure (BTU/hr) Burner Size Series Requirements Type Pressure (by log) Natural 320-160-320 10.0 15,686... -
Page 40: Gas Conversion
Firelog installation and gas conversion must be performed only by technicians who have specific authorization by Ortal to change these components. The Driftwood Firelog Kit must be supplied by Ortal. Using parts from other manufacturers or having an unauthorized party performing the conversion will void your fireplace’s warranty. Conversion instructions are supplied with the kit. -
Page 41: Electrical
Electrical WARNINGS: Electrical work should be performed by a qualified licensed electrician, per local code. Disconnect the power supply before servicing any electrical components. Use of an AC Adapter other than the one provided with the fireplace (manufactured by Mertik Maxitrol) may render the ... -
Page 42: Pairing The Remote And Receiver
Pairing the Remote and Receiver To set up the remote-control device to operate the fireplace, follow the following guidelines to pair the remote and receiver unit on the same radio frequency. Press and hold the receiver’s reset button until you hear two beeps. The first beep is short, and the second beep is long. After the second beep, release the reset button. -
Page 43: Wiring Diagrams
Wiring Diagrams The following diagrams show the electrical wiring required for different feature combinations. → Wiring Diagram: Screen Fireplace with Interior Lighting... - Page 44 → Wiring Diagram: Screen Fireplace with Interior Lighting and Ortal Power Vent...
- Page 45 → Wiring Diagram: Double Glass Fireplace with Interior Lighting...
- Page 46 → Wiring Diagram: Double Glass Fireplace with Interior Lighting and Ortal Power Vent...
-
Page 47: Carbon Monoxide Detector Wiring Diagrams
Carbon Monoxide Detector Wiring Diagrams CO Kit Wiring Diagram: Screen Fireplace... - Page 48 CO Kit Wiring Diagram: Double Glass Fireplace...
-
Page 49: Home Automation Wiring Diagram
Driftwood Firelog Set Ortal Driftwood Firelogs are the only interior design media permitted in the Wilderness Traditional series fireplaces. No other interior design media options are permitted. The following Ortal firelog sets are permitted for use in the Wilderness Traditional series fireplaces. -
Page 50: Log Placement For Traditional 36
The following items are included with the Driftwood Firelog set for the Wilderness Traditional 36 & 42 fireplaces. Items Supplied with Driftwood Firelogs Log Placement for Traditional 36 Log placement of the Driftwood Firelog Set is crucial for optimal fireplace operation and safety purposes. Logs must be arranged as detailed in the following pages. - Page 51 STEP 1 Place nickel strands on top of the burner holes. WARNING: For safety and optimal fireplace function, keep 1 inch around the pilot (behind pilot hood) completely clear of any media or debris. Step 1 Top View Arrange logs as shown in the following pictures. STEP 2...
- Page 52 STEP 3 The base of log #3 can be adjusted to fit the position shown in the picture above. (See “Log Base position Adjustment” section for details). STEP 4 STEP 5 The base of log #5 can be adjusted to fit the position shown in the picture above. (See “Log Base position Adjustment” section for details).
- Page 53 STEP 6 STEP 7 The base of log #7 can be adjusted to fit the position shown in the picture below (see “Log Base Position Adjustment” section for details). STEP 8...
- Page 54 STEP 9 (Optional) Add charcoal pieces to remainder of the burner. Do not cover any burner holes. Maintain minimum 1-inch clearance around the pilot behind pilot hood. Step 9 Top View WARNING: For safety and optimal fireplace function, keep 1 inch around the pilot (behind pilot hood) completely clear of any media or debris.
-
Page 55: Log Placement For Traditional 42
Log Placement for Traditional 42 Log placement of the Driftwood Firelog Set is crucial for optimal fireplace operation and safety purposes. Logs must be arranged as detailed in the following pages. No other arrangement is permitted. Alternative log arrangement will affect fireplace safety, operation, and performance. - Page 56 Arrange logs as shown in the following pictures. STEP 2 STEP 3 STEP 4 The base of log #4 can be adjusted to fit the position shown in the picture above (see “Log Base Position Adjustment” section for details).
- Page 57 STEP 5 STEP 6 The base of log #6 can be adjusted to fit the position shown in the picture below (see “Log Base Position Adjustment” section for details). STEP 7 The base of log #7 can be adjusted to fit the position shown in the picture below (see “Log Base Position Adjustment” section for details).
- Page 58 STEP 8 STEP 9 (Optional) Add charcoal pieces to remainder of the burner. Do not cover any burner holes. Maintain minimum 1-inch clearance around the pilot behind pilot hood. Step 9 Top View WARNING: For safety and optimal fireplace function, keep 1 inch around the pilot (behind pilot hood) completely clear of any media or debris.
-
Page 59: Log Base Position Adjustment
Log Base Position Adjustment... -
Page 60: Adjustment Instructions
Adjustment Instructions NOTE: The following images are for illustrative purposes only. - Page 63 Log Base Aeration...
-
Page 64: Operation
Operation WARNING – Read these instructions carefully before lighting the fireplace. Four operation options are available for use with the fireplace: 10-Button Remote Control Handset (default option, always included with the fireplace) Puck Handset (optional accessory) Wall Switch (optional accessory) ... -
Page 65: Puck Handset
Turning the Fireplace On 1. Press the button until you hear continuous beeping, and a blinking series of lines confirms the start sequence has begun; release buttons. 2. Main gas flows once pilot ignition is confirmed. 3. The system automatically goes into Manual Mode after main burner ignition. NOTE: When pilot ignition is confirmed, motor turns automatically to maximum flame height. -
Page 66: Operating Instructions
Operating Instructions Instructions for operating the Puck Handset are shown below. Turning the Fireplace On/Off Firmly press and hold the button until two short beeps confirms the start sequence has begun; release button. OFF: Firmly press the button. Increase/Decrease Flame Height INCREASE: To increase flame height, press and hold... -
Page 67: Wall Switch
Wall Switch Control Option Radio Frequency Power Supply Wall Switch IMPORTANT: For safety/communication purposes, the 10-button handset must be located within 26 feet of the receiver. Operating Instructions Turning the Fireplace On/Off ON: Press and hold the ON-OFF button until two short beeps confirms the start sequence has begun;... -
Page 68: Myfire App
To download the MyFire app, search “MyFire” at the Apple App Store or Google Play. Operating Instructions For setup and operating instructions of the MyFire app, see the Homeowner’s Fireplace Operation Manual, or visit the Ortal website or www.myfireapp.com. →... -
Page 69: Fireplace Maintenance
Submerged Parts Do not use the fireplace if any part has been under water, or if you suspect that it may have been under water. The Ortal dealer service technician must inspect and, if necessary, replace any parts of the control system and any gas controls which have been under water. - Page 70 © Ortal 2021 Version 1.1, July 2021 SKU: KPMANWILDTRV1.1 Ortal USA 8421 Canoga Ave Canoga Park, CA 91304 T: (818) 238-7000 | F: (818) 678-0541 info@ortalheat.com | www.ortalheat.com...
