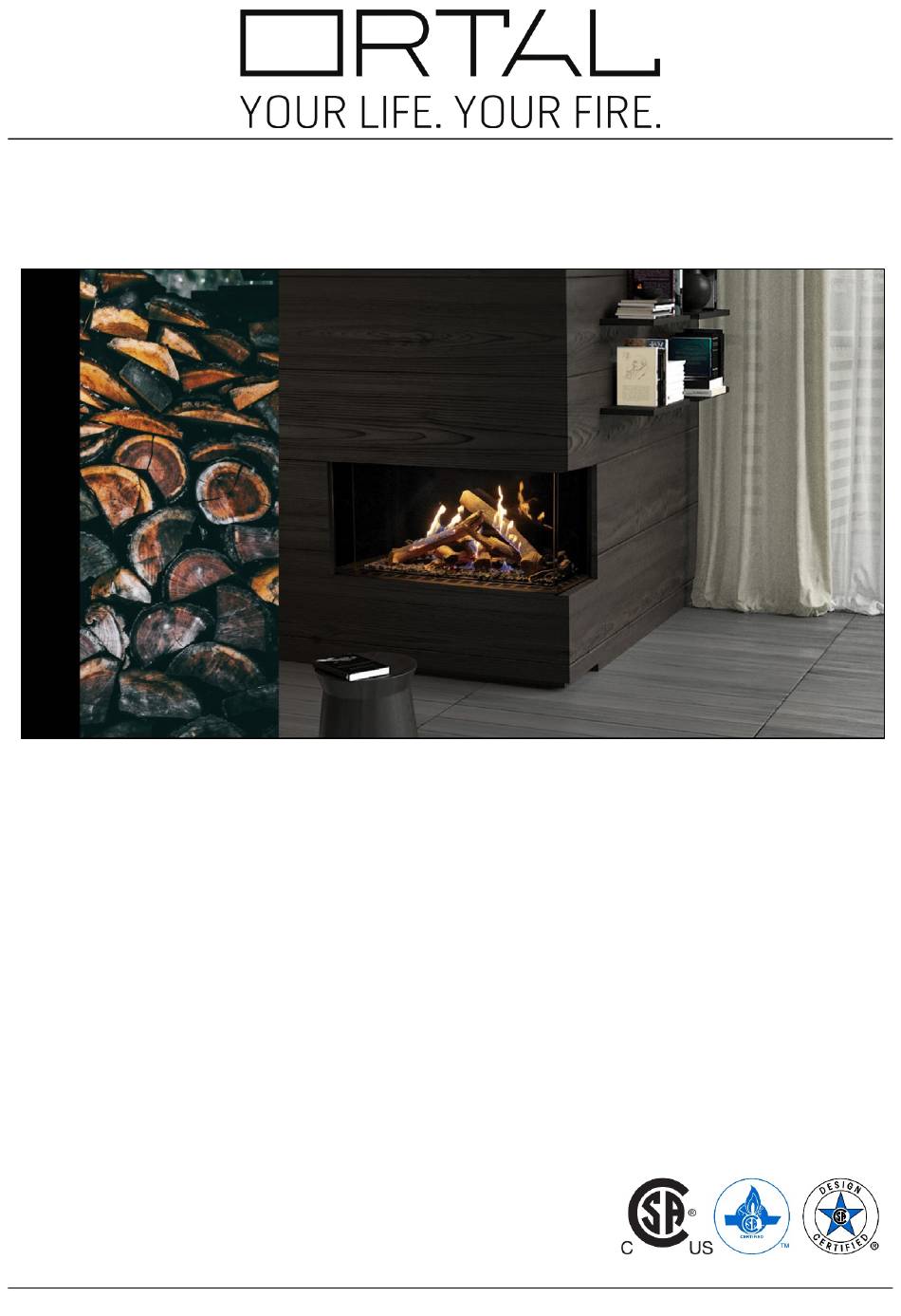

- Page 1 Wilderness 44 RS/LS/TS Firelog Placement Instructions Wilderness Firelog Set: Driftwood Wilderness 44 Corner (RS/LS) Firelog Placement Instructions (V1)
-
Page 2: Table Of Contents
General Safety Information and Warnings WARNING: No other interior design media options are permitted for the Wilderness 44 series fireplaces. WARNINGS: INSTALLING AND HANDLING MEDIA Keep 1 inch around the pilot completely clear of any material. Log media is fragile, handle with care. DO NOT install the interior design media until fireplace installation is complete, the gas line is connected and tested for leaks, and initial burner operation has been inspected and approved. -
Page 3: Driftwood Firelog Kit
Driftwood Firelog Kit The following items are included with the Driftwood Firelog set for Wilderness 44 RS/LS/TS fireplaces. NOTES: Log sets for NG and LP have different SKUs. Please consult the price list to ensure you have the correct SKU. NG logs are ... -
Page 4: Firelog Setup Instructions
Firelog Setup Instructions Log placement of the Driftwood Firelog Set is crucial for optimal fireplace operation and safety purposes. Logs must be arranged as depicted in this manual. No other arrangement is permitted. Log placement instructions are the same for natural gas and propane. Nickle Strand Placement Use your fingers to separate the nickel strands (supplied 2x20”... -
Page 5: Log Placement
Log Placement Arrange logs as shown in the following pictures. STEP 2 STEP 3 The base of log #3 can be adjusted to fit the position shown in pictures above (see “Log Base Position Adjustment” section for details). STEP 4... - Page 6 STEP 5 STEP 6 STEP 7 The base of log #7 can be adjusted to fit the position shown in the pictures above (see “Log Base Position Adjustment” section for details).
-
Page 7: Charcoal Placement
STEP 8 The base of log #6 can be adjusted to fit the position shown in the pictures above (see “Log Base Position Adjustment” section for details). Leave minimum gap of 1 ” between logs 6 and 7. Charcoal Placement STEP 9 (Optional) Place the charcoals and stones on the burner. -
Page 8: Log Base Position Adjustment
Log Base Position Adjustment... -
Page 9: Adjustment Instructions
Adjustment Instructions NOTE: Log base position instructions apply to Front, Corner (RS/LS), and Three Sided models. A Three Sided model is shown for illustrative purposes. -
Page 11: Log Base Aeration
Log Base Aeration... - Page 12 © Ortal 2021 Version 1, April 2021 SKU: KPLOGWIL44RSLSTS Ortal USA 8421 Canoga Ave Canoga Park, CA 91304 T: (818) 238-7000 | F: (818) 678-0541 info@ortalheat.com | www.ortalheat.com...
