Installation and Operation Manual

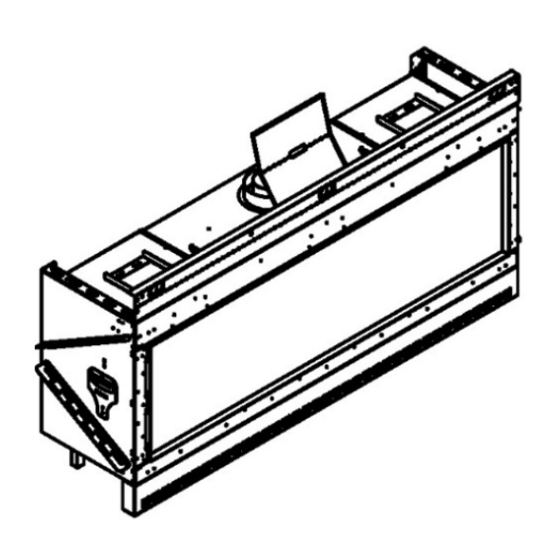

Wilderness 77H Series
Manufacture Update
Serial Number 34478 and Forward
Wilderness 77H Series Fireplaces:
Wilderness 77H Corner (RS/LS)
Wilderness 77H Three Sided
Wilderness 77H Three Sided
(Enervex Power Vent is required for Wilderness 77H series fireplaces)
Ortal Installation Manual: Wilderness 77H Series (V2.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wilderness 77H Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ORTAL Wilderness 77H Series

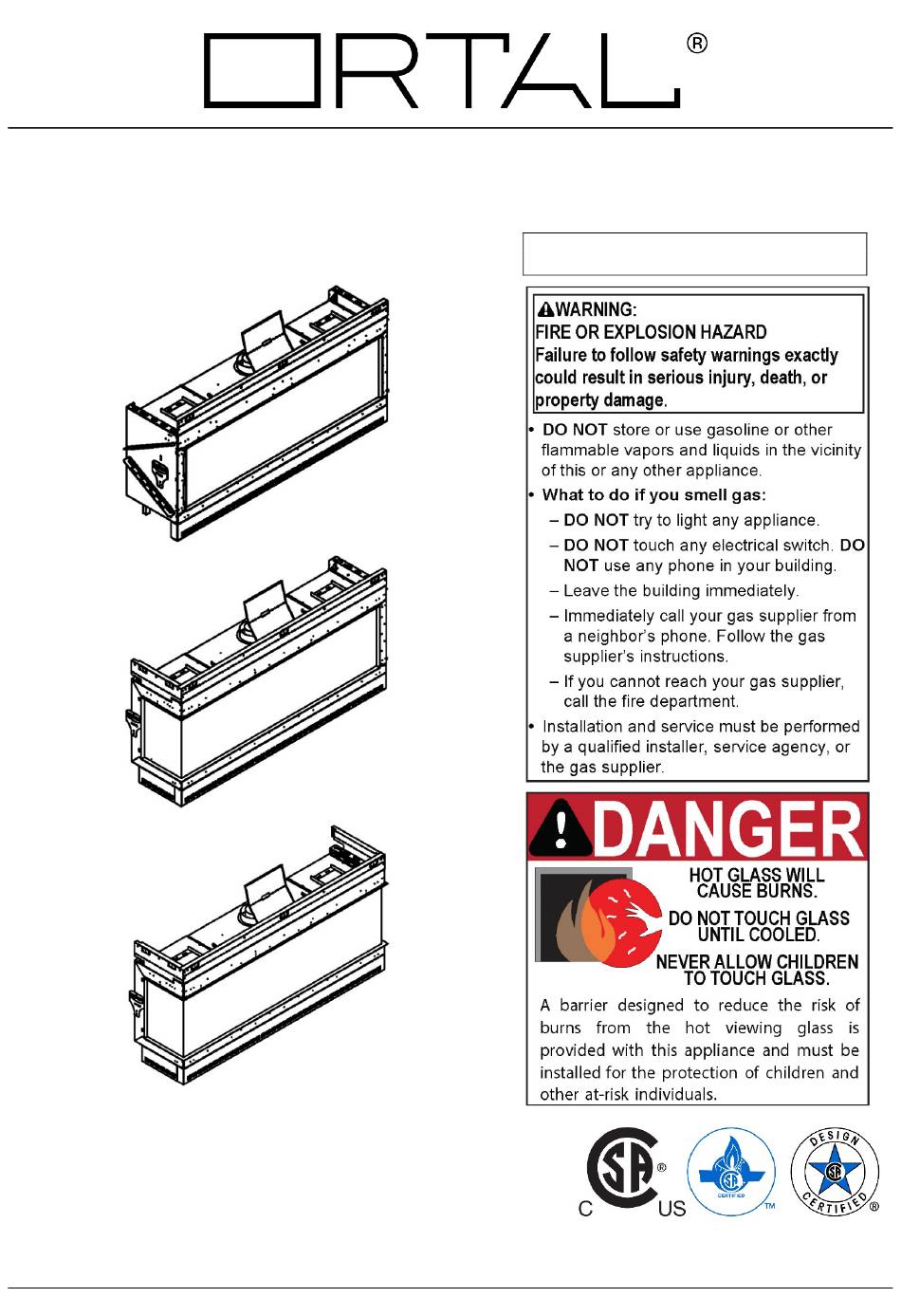

  • Page 1 Manufacture Update Serial Number 34478 and Forward Wilderness 77H Series Fireplaces: Wilderness 77H Corner (RS/LS) Wilderness 77H Three Sided Wilderness 77H Three Sided (Enervex Power Vent is required for Wilderness 77H series fireplaces) Ortal Installation Manual: Wilderness 77H Series (V2.0)
  • Page 2: General

    WARNING: MATERIAL USAGE All materials and objects used to carry out the installation must be certified/approved or specified by Ortal and are suitable for use. Do NOT install the system with different materials or objects than those approved for installation by Ortal.
  • Page 3: Table Of Contents

    Table of Contents “→” Denotes new or changed information from most recent version manual. General Safety Information and Warnings Product Information Models Certification Rating Label Zero-Clearance Stand-Offs Installation Prior to Installation Locate the Fireplace Fireplace Installation First Trip to Site: Planning Second Trip to Site: Installation Third Trip to Site: Startup Post-Installation...
  • Page 4 Electrical Electrical Requirements Power Outage Pairing the Remote and Receiver → Wiring Diagrams Home Automation Wiring Diagram Driftwood Firelog Set Firelog Installation Warnings 77H Series Firelog Setup Log Base Position Adjustment Adjustment Instructions Operation 10-Button Remote Control Handset Operating Instructions Puck Handset Operating Instructions Wall Switch...
  • Page 5: Product Information

    Wilderness 77H TS (co-axial) NOTE: Venting is not supplied by Ortal with the fireplace. The fireplace is certified to be used with, and can be obtained from, the vent manufacturers outlined in the Venting Requirements Section on page 29. Certification Wilderness 77H series fireplaces have been tested and approved by CSA Group for safety and efficiency for use with Natural Gas (NG) and Propane (LP) only, and NOT for use with solid fuels.
  • Page 6: Rating Label

    Rating Label DEALERS/INSTALLERS: You MUST leave the fireplace’s rating label with the fireplace in an area easily accessible by the owner (typically near the access area). You must instruct the owner before handing over the fireplace where this label can be found. OWNERS: Make sure the installer leaves your fireplace’s rating label in an area that is easily accessible for you.
  • Page 7: Zero-Clearance Stand-Offs

    Protective Cover: Attached under the bottom front part of the fireplace to protect the double glass fans during shipping and installation. This cover is present on double glass models only. Screen models do not come with a protective cover. Wilderness 77H Series Front Facing Zero-Clearance Stand-Offs (Isometric View)
  • Page 8: Installation

    Installation Prior to Installation Locate the Fireplace Keep the following factors in mind when selecting a location for the fireplace: Fireplace clearance requirements (review “General Clearances” section on page 16).  Heat release and air intake requirements (review “Heat Release” section on page 17 and “Air Intake Opening” section on ...
  • Page 9: Third Trip To Site: Startup

    Securing the Fireplace The fireplace has nailing flanges attached to the face of the fireplace (see figures below). The nailing flanges are to be attached into the framing upon installation. It is crucial to the finishing that the fireplace is stable, level, and plumb. For added stability (though not required), re-use the shipping brackets to secure the legs of the fireplace to floor/platform.
  • Page 10: Post-Installation

    In addition, the installer must review and explain the following to the owner: Safety warnings  Fireplace operation  Warranty requirements  Maintenance requirements  Glass is hot during and after operation.  If any questions or concerns arise, owner must contact the local Ortal dealer/installer for support. ...
  • Page 11: Building Around The Fireplace

    Building Around the Fireplace Building Checklist The following building checklist is a quick reference for a typical Wilderness 77H series fireplace installation. This list is not exhaustive and does not supplement thorough review of the installation manual.  Fireplace Location: Ensure the location allows for min. 16” clearance from viewing area to furniture and other combustibles.
  • Page 12: Framing

    Framing Framing Requirements Fireplace chase may be framed with either combustible (typically wood studs) or non-combustible framing (typically metal studs). Any framing within 10 ” from the top of the fireplace glass (viewing area) must be non-combustible. Any framing after that point may be combustible.
  • Page 13: Framing Dimensions

    Framing Dimensions The following diagrams are for illustrative purposes only. There are multiple approved framing scenarios. A flush application is not the only permitted application. The fireplace may be recessed into the wall. Refer to diagrams and values below and in the following pages for details.
  • Page 14 Wilderness 77H Corner (RS/LS) Series Fireplace Glass Glass Height Length Depth Stand-Off Legs Length Height 77H RS/LS ” ” ” ” ” 78 ¾” ” Screened 77H RS/LS ” ” ” ” ” " ” Double Glass Framing 77H RS/LS 77H RS/LS Fireplace Screened...
  • Page 15 Wilderness 77H Three Sided (TS) Series Fireplace Glass Glass Height Length Depth Stand-Off Legs Length Height 77H TS ” 82 ¾” ” ” ” ” ” Screened 77H TS ” " ” ” ” ” ” Double Glass Framing 77H TS 77H TS Fireplace Screened...
  • Page 16: General Clearances

    General Clearances Viewing Area Clearance Zone The viewing area clearance zone is an area that extends perpendicular from the fireplace viewing area. The depth of the viewing area clearance zone depends on the combustibility of the material in question. Distance is measured from the fireplace heat barrier. Non-Combustible Materials Must be minimum 12 inches from fireplace viewing area.
  • Page 17: Heat Release

    Heat Release A heat release is an opening in the fireplace chase that allows the heat inside the chase to passively circulate into an interior room. This heat is generated convectively as the fireplace heats up. It is separate from exhaust heat produced in the combustion chamber of the fireplace.
  • Page 18 Vertical Heat Release: Split Front Vertical Heat Release: Full Side The heat release is oriented vertically and split between the two The heat release is oriented vertically. Entire heat release sides of the chase. is on one side of the fireplace chase. Split Front Vertical Heat Release Full Vertical Heat Release on One Side Sprinkler Clearance to Heat Release...
  • Page 19: Air Intake Opening

    Air Intake Opening For fireplaces with a double glass heat barrier only, an air intake opening must be incorporated into the framing and finish around the fireplace. The air intake opening is essential to maintain cool air flow between the double glass panels by allowing the double glass fans to circulate room air through the glass panels and up into the chase.
  • Page 20: Air Intake For A Platform

    Air Intake for a Platform NOTE: Please refer to the “Chase Floor/Platform” section on page 12 for details on platform construction.
  • Page 21: Mounting A Tv/Artwork

    The decision to install a television above an Ortal fireplace is up to the discretion of the owner. TV and art manufacturers may specify that their product should not be installed on, near or above a heat source. Ortal will not be held liable for any adverse effects on a TV, artwork or other equipment located near the Ortal fireplace.
  • Page 22 Recessed TV/Artwork When the TV is mounted on a wall that recesses over fireplace, the TV must be at least 12 inches from the top of the fireplace glass viewing area. At 12 inches above the fireplace viewing area, maximum possible recess is 5 inches. A deeper recess will interfere with required clearances to venting.
  • Page 23: Access Area Requirements

    Access Area Requirements An access panel, or some other form of clear access, is required at each of the following two locations for servicing purposes: Power Vent Control Box  Power Vent Fan Box  Prior to installation, fireplace dealers/installers should work with the owner, builder, project architects and/or interior designers to determine the best size and location of their access panel depending on project design needs.
  • Page 24: Chase Area Minimum

    Chase Area Minimum To ensure the convective heat within the chase passively moves to the heat release at an optimal rate, all parts of the interior of the chase must at least the same size as the fireplace heat release (see “Heat Release” section on page 17 to determine your model’s required heat release size) at size at any given point.
  • Page 25: Structural Weight Support

    The following drawing shows a recommended approach to this type of installation. Please note that these drawings are not to scale. All fireplace drawings with correct dimensions are available on the Ortal website.
  • Page 26: Step-By-Step Chase Construction

    Material is not required to be non-combustible. Step 2 INSTALL FIREPLACE AND VENTING, RUN GAS AND ELECTRICAL Install the fireplace and venting. This must be completed by an authorized Ortal dealer (unless otherwise authorized by Ortal  with written approval).
  • Page 27: Finishing

    Finishing The following diagrams show various finish applications. Diagrams apply to both combustible and non-combustible finish material. IMPORTANT NOTES: All recessed installations must comply with applicable maximum overhang limit and side wall clearances. See “Maximum  Overhang/Mantel Depth” and “Clearance to a Side Wall” sections on page 16 for details. No material is permitted to extend past the metal lip surrounding the fireplace viewing area.
  • Page 28: Recessed Installation

    IMPORTANT: Wilderness 77H models require a power vent for operation. Enervex Power Vent is the only power vent series allowed for this series fireplace. Any Ortal Power Vent (as mentioned in the Ortal Power Vent Manual) cannot provide adequate air flow and must not be used with any Wilderness 77H series fireplaces.
  • Page 29: Vent Configurations

    Venting Allowances Below is the allowable vent run lengths and elbows for the Wilderness 77H series with an Enervex Power Vent. This table takes precedence over the Ortal Enervex Power Vent Installation Manual.
  • Page 30: Adjustable Vent Restrictor Sizing Guidelines

    Adjustable Vent Restrictor Sizing Guidelines The restrictor sizing tables in this section determine the recommended restrictor for your vent configuration. These tables show Ortal’s recommendations only. The Environment, gas type and other factors may affect the best restrictor choice. Adjustable Restrictor Wilderness 77H comes with an adjustable restrictor.
  • Page 31: Vent Clearances

    Vent Clearances The following clearances apply to the vent system regardless of vent manufacturer. Vent Clearances Applies to entire circumference when venting is oriented Sides: 1” vertically. Clearance is to any material. *Top: 3” Applies to venting oriented horizontally or at an angle. Clearance is to any material.
  • Page 32: Vent Termination

    Vent Termination Horizontal Termination Clearance Diagram Location Country Minimum Clearance Description Clearance above grade, veranda, porch, deck, or balcony. US & 12 inches NOTE: On private property where termination is less than 7 feet above a sidewalk, driveway, Canada deck, porch, veranda, or balcony, use of a listed cap shield is suggested. ≤...
  • Page 33 Covered Alcove: spaces open only on one side and with an overhang Horizontal Termination Clearances Continued: Covered Alcove Application Location Country Minimum Clearance Description Clearance under non-vinyl veranda, porch, deck, balcony, or overhang. NOTE: Termination in a covered alcove space is permitted with the dimensions specified. 1.
  • Page 34 Vertical Termination Clearance Diagram NOTE: This chart does not apply to a chimney shroud application. See the “Chimney Shroud” section on the next page for more information. TERMINATION CAP NOTE: A Low Profile Termination Cap can negatively impact flame appearance and is not recommended for use with the fireplace.
  • Page 35: Chimney Shroud

    Chimney Shroud Top Open Keep a minimum 6-inch clearance around the diameter of the cap’s side edge and extending above and below the cap. Sides Open Keep a minimum 6-inch clearance around the diameter of the cap’s side edge, and a minimum 10-inch clearance above the top of the cap.
  • Page 36: Vent Installation

    Vent Installation Venting must be installed to meet the requirements as detailed in the following sections in conjunction with the vent system manufacturer’s installation instructions. Venting must be supported by the structural surrounding and not by the fireplace. Each offset (elbow) must be strapped to reduce movement or possible disconnection.
  • Page 37 Screen Models 77H Series Fireplaces with Screen: Left, Right, Back, Front Double Glass Models Front with Double Glass: Left, Right, Back Three Sided with Double Glass: Back Left Side (LS) with Double Glass: Right, Back Right Side (RS) with Double Glass: Left, Back...
  • Page 38: Gas Conversion

    Firelog installation and gas conversion must be performed only by technicians who have specific authorization by Ortal to change these components. The Driftwood Firelog Kit must be supplied by Ortal. Using parts from other manufacturers or having an unauthorized party performing the conversion will void your fireplace’s warranty. Conversion instructions are supplied with the kit.
  • Page 39: Electrical

    Power Outage Wilderness 77H series fireplaces are required to be plugged into an outlet for the power vent to function. The fireplace cannot operate safely on battery power alone, and therefore cannot be operated in the event of a power outage.
  • Page 40: Wiring Diagrams

    Wiring Diagrams → The following diagrams show the electrical wiring required for different feature combinations. Wiring Diagram: Screen Fireplace with Interior Lighting and Enervex Power Vent Wiring Diagram: Double Glass Fireplace with Interior Lighting and Enervex Power Vent...
  • Page 41: Home Automation Wiring Diagram

    Wilderness Driftwood Firelogs are designed for use in the Wilderness series fireplaces only. No other interior design media options are permitted for Wilderness series fireplaces. The following Ortal firelog sets are permitted for use in the Wilderness 77H series fireplaces.
  • Page 42: Firelog Installation Warnings

    Firelog Installation Warnings Firelogs are fragile. Handle them gently to prevent damage to their paint or to the fireplace. Arrange firelogs as shown the section below. Do not arrange them in any other way. If firelogs are not installed per installation instructions, flame impingement and improper combustion may occur and result in soot and/or excessive production of carbon monoxide (CO).
  • Page 43: 77H Series Firelog Setup

    Setup can take up to 1 hour to complete. Handle logs gently to avoid paint damage. Log placement is the same for NG and LP. The following items are included with the Driftwood Firelog set for the Wilderness 77H series fireplaces. Items supplied with Driftwood Firelog set...
  • Page 44 STEP 1: Nickle Strands Use your fingers to separate the nickel strands (supplied 2x20” long) as shown in the image below. It is recommended to cut the nickel strips into 10 equal strips to make it easier to separate them. Left: Nickel strands as supplied | Right: Nickel strands ready to use Place nickel strands on top of the burner holes.
  • Page 45 STEP 3 STEP 4 STEP 5 The base of log #5 can be adjusted to fit the position shown in pictures above (see “Log Base Position Adjustment” section on page 50 for details).
  • Page 46 STEP 6 The base of log #6 can be adjusted to fit the position shown in pictures above (see “Log Base Position Adjustment” section on page 50 for details). STEP 7 The base of log #7 can be adjusted to fit the position shown in pictures above (see “Log Base Position Adjustment” section on page 50 for details).
  • Page 47 STEP 9 STEP 10 STEP 11 The base of log #11 can be adjusted to fit the position shown in pictures above (see “Log Base Position Adjustment” section on page 50 for details).
  • Page 48 STEP 12 STEP 13 The base of log #13 can be adjusted to fit the position shown in pictures above (see “Log Base Position Adjustment” section on page 50 for details). STEP 14...
  • Page 49 STEP 15 STEP 16: Charcoals (Optional) Cover the remainder of the burner with provided charcoals. Do not cover any burner holes. Maintain minimum 1-inch clearance around the pilot behind pilot hood. WARNING: For safety and optimal fireplace function, keep 1 inch around the pilot (behind pilot hood) completely clear of any media or debris.
  • Page 50: Log Base Position Adjustment

    Log Base Position Adjustment...
  • Page 51: Adjustment Instructions

    Adjustment Instructions NOTE: The following images are for illustrative purposes only. Instructions apply to Front, Corner, and Three Sided models.
  • Page 54 Log Base Aeration...
  • Page 55: Operation

    Operation WARNING – Read these instructions carefully before lighting the fireplace. Four operation options are available for use with the fireplace: 10-Button Remote Control Handset (default option, always included with the fireplace)  Puck Handset (optional accessory)  Wall Switch (optional accessory) ...
  • Page 56: Puck Handset

    Turning the Fireplace On 1. Press the button until you hear continuous beeping, and a blinking series of lines confirms the start sequence has begun; release buttons. 2. Main gas flows once pilot ignition is confirmed. 3. The system automatically goes into Manual Mode after main burner ignition. NOTE: When pilot ignition is confirmed, motor turns automatically to maximum flame height.
  • Page 57: Operating Instructions

    Operating Instructions Instructions for operating the Puck Handset are shown below. Turning the Fireplace On/Off Firmly press and hold the button until two short beeps confirms the start  sequence has begun; release button. OFF: Firmly press the button.  Increase/Decrease Flame Height INCREASE: To increase flame height, press and hold...
  • Page 58: Wall Switch

    Wall Switch Control Option Radio Frequency Power Supply Wall Switch IMPORTANT: For safety/communication purposes, the 10-button handset must be located within 26 feet of the receiver. Operating Instructions Turning the Fireplace On/Off ON: Press and hold the ON-OFF button until two short beeps confirms the start sequence has begun;...
  • Page 59: Myfire App

    To download the MyFire app, search “MyFire” at the Apple App Store or Google Play. Operating Instructions For setup and operating instructions of the MyFire app, see the Homeowner’s Fireplace Operation Manual, or visit the Ortal website or www.myfireapp.com. MyFire Wi-Fi Box The MyFire Wi-Fi router box provides the Wi-Fi connection that allows the MyFire App to operate the fireplace.
  • Page 60: Fireplace Maintenance

    Submerged Parts Do not use the fireplace if any part has been under water, or if you suspect that it may have been under water. The Ortal dealer service technician must inspect and, if necessary, replace any parts of the control system and any gas controls which have been under water.
  • Page 61 © Ortal 2023 Version 2.0, June 2023 SKU: KPMANWILD77HV2.0 Ortal USA 2152 Citygate Dr., Columbus, OH 43219 T: (818) 238-7000 | F: (818) 678-0541 info@ortalheat.com | www.ortalheat.com...
