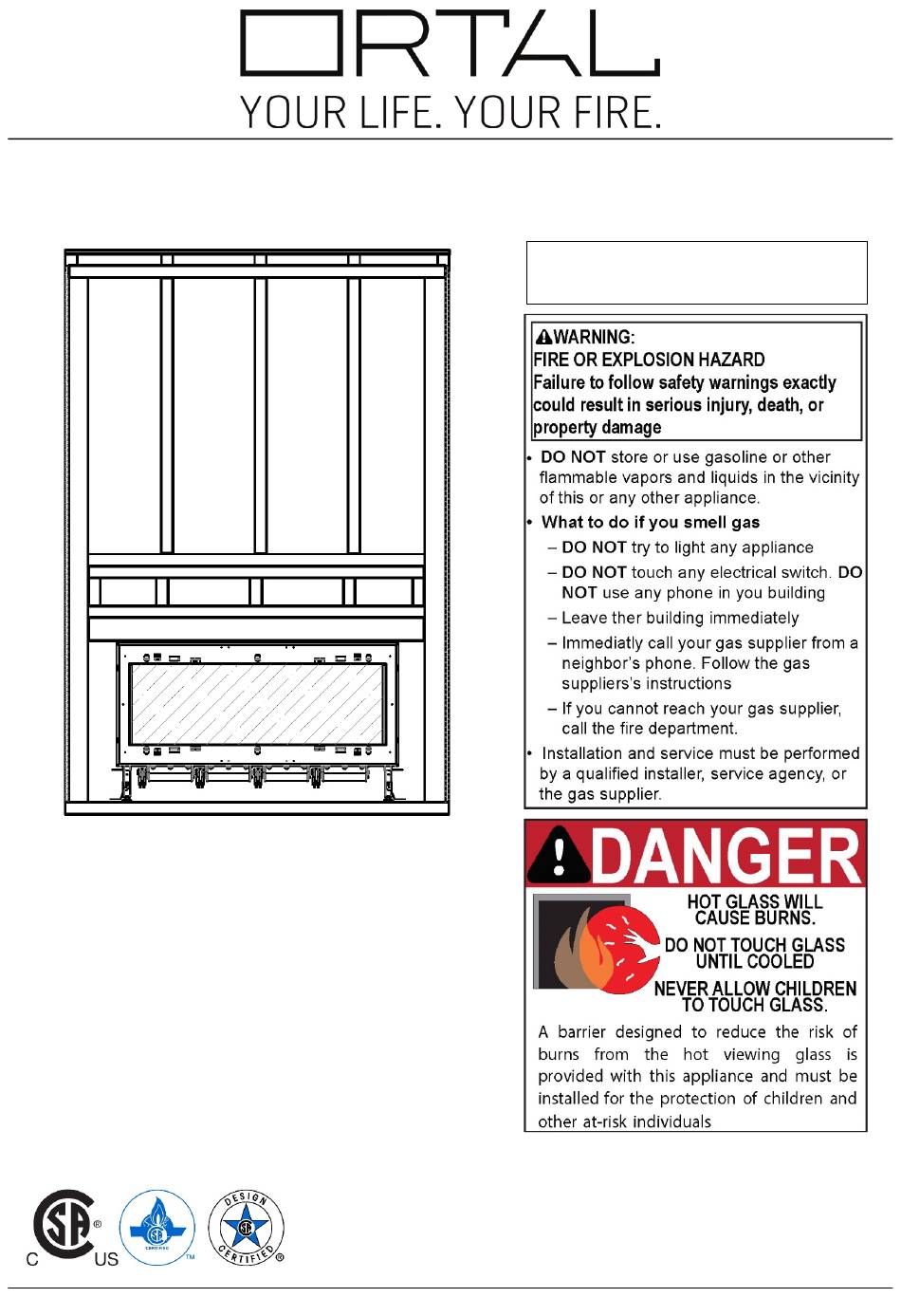

- Page 1 Installation and Operation Manual Built-In Models Manufacturer Update Serial Number 21818 and Forward Built-In Models: Front Facing Traditional Corner (RS/LS) Tunnel Three Side Space Creator Curve Island Wilderness Ortal Installation Manual: Built-In Models (V3)
-
Page 2: General
WARNING: MATERIAL USAGE All materials and objects used to carry out the installation must be certified/approved or specified by Ortal and are suitable for use. Do NOT install the system with different materials or objects than those approved for installation by Ortal. -
Page 3: Table Of Contents
Table of Contents General Safety Information and Warnings Product Information Certification Models Rating Label Installation Prior to Installation Locate the Fireplace Fireplace Installation First Trip to Site: Planning Second Trip to Site: Installation Third Trip to Site: Startup Post-Installation Initial Burning Period Final Inspection Procedure Final Checks and User Instruction Building Around the Fireplace... -
Page 4: Product Information
The fireplaces are not approved for closet installation. The fireplace must be installed according to Ortal requirements in addition to any local codes that may apply, such as USA: ANSI Z223.1/NFPA 54, Canada: CSA B149. -
Page 5: Models
Canada: CSA 2.33 - 2016 Direct Vent Propane NOTE: Venting is not supplied by Ortal with the fireplace. The fireplace is certified to be used with, and can be obtained from, the vent manufacturers outlined in “General Venting Requirements” section. -
Page 6: Rating Label
Rating Label The following figure shows a sample certification label for various product series. The fireplace rating label is found on a separate metal plate that is included with the fireplace. DEALERS/INSTALLERS: You MUST leave the fireplace’s rating label with the fireplace in an area easily accessible by the owner (typically near the access panel, if available). -
Page 7: Installation
Installation Prior to Installation Locate the Fireplace Keep the following factors in mind when selecting a location for the fireplace: Fireplace clearance requirements (review “General Clearances” sections). Heat release and air intake requirements (review “Heat Release” and “Air Intake” sections). ... -
Page 8: Third Trip To Site: Startup
Securing the Fireplace During shipping, two L-shaped seismic brackets are attached from the fireplace to the crating for stabilization. These brackets must be re-used during installation to secure the fireplace to the back (or side) framing. It is crucial to the finishing that the fireplace is stable, level, and plumb. -
Page 9: Post-Installation
In addition, the installer must review and explain the following to the owner: Safety warnings Fireplace operation Warranty requirements Maintenance requirements Glass and firebox components are hot during and after operation. If any questions or concerns arise, owner must contact the local Ortal dealer/installer for support. ... -
Page 10: Building Around The Fireplace
Building Around the Fireplace Building Checklist The following building checklist is a quick reference for a typical Ortal Built-In Series fireplace installation. This list is not exhaustive and does not supplement thorough review of the installation manual. Fireplace Location: Ensure the location allows for min. 36” clearance from viewing area to combustibles and 12”... -
Page 11: Framing
Framing Fireplace chase may be framed with either combustible (typically wood studs) or non-combustible framing (typically metal studs). Any framing within 18 inches from the top of the fireplace glass (viewing area) must be non-combustible. The framing of the fireplace chase must be designed to carry the entire weight of the wall and finish material. Surrounding material must not transfer weight to the fireplace or be connected in any way to the fireplace, with the exception of ”... - Page 12 Front Facing Series Framing Combustible Framing Non-Combustible Framing Dimension A: Rough Combustible Framing Opening Height Dimension A: Rough Framing Opening Height Dimension B: Rough Framing Opening Width Dimension B: Rough Framing Opening Width Dimension C: Framing Depth Dimension C Framing Depth Dimension D: Firestop Opening Dimension D: Firestop Opening Dimension E: Non-combustible Framing Zone...
- Page 13 Corner (RS/LS) Series Framing Combustible Framing Non-Combustible Framing Dimension A: Rough Combustible Framing Opening Height Dimension B: Rough Framing Opening Width Dimension A: Rough Framing Opening Height Dimension C: Framing Depth Dimension B: Rough Framing Opening Width Dimension D: Firestop Opening Dimension C Framing Depth Dimension E: Non-combustible Framing Zone Dimension D: Firestop Opening...
- Page 14 Tunnel Series Framing Combustible Framing Non-Combustible Framing Dimension A: Rough Combustible Framing Opening Height Dimension B: Rough Framing Opening Width Dimension A: Rough Framing Opening Height Dimension C: Framing Depth Dimension B: Rough Framing Opening Width Dimension D: Firestop Opening Dimension C Framing Depth Dimension E: Non-combustible Framing Zone Dimension D: Firestop Opening...
- Page 15 Three Side Series Framing Combustible Framing Non-Combustible Framing Dimension A: Rough Combustible Framing Opening Height Dimension B: Rough Framing Opening Width Dimension A: Rough Framing Opening Height Dimension C: Framing Depth Dimension B: Rough Framing Opening Width Dimension D: Firestop Opening Dimension C Framing Depth Dimension E: Non-combustible Framing Zone Dimension D: Firestop Opening...
- Page 16 Space Creator Series Framing Combustible Framing Non-Combustible Framing Dimension A: Rough Combustible Framing Opening Height Dimension B: Rough Framing Opening Width Dimension A: Rough Framing Opening Height Dimension C: Framing Depth Dimension B: Rough Framing Opening Width Dimension D: Firestop Opening Dimension C Framing Depth Dimension E: Non-combustible Framing Zone Dimension D: Firestop Opening...
-
Page 17: Platform
” Type X Drywall Requirements Exterior side (i.e., room-facing side) of the framing must be covered with ” Type X Drywall (or equivalent). This applies to combustible and non-combustible framing. ” Type X Drywall is not required on the exterior portion of an insulated outside-facing wall. NOTE: ”... -
Page 18: General Clearances
General Clearances Viewing Area Clearances The viewing area clearance zone is an area that extends perpendicular from the fireplace viewing area. The depth of the viewing area clearance zone depends on the combustibility of the material in question. Distance is measured from the fireplace heat barrier. Non-Combustible Materials Must be minimum 12 inches from fireplace viewing area. - Page 19 Firebox Clearance Maintain a 2-inch clearance from the back and/or side of the fireplace (depending on the model) to any material. Firebox Clearance Per Model Front & Traditional Tunnel Corner: Left Side Corner: Ride Side Space Creator Three Side Clearance to Ceiling Maintain a 12-inch clearance from the top of the fireplace viewing area to the lowest point of the ceiling or to any building materials.
- Page 20 Air Flow Clearance A 4-inch clearance from the vent openings on the top of the firebox is required. Framing and/or building material is NOT permitted in this area. Doing so will block the air vents on the fireplace and cause the entire surrounding to overheat. Framing Clearance Maintain a minimum inches of space between the framing and the face of the fireplace.
- Page 21 Clearance to a Side Wall The fireplace viewing area is zero-clearance to a side wall. A side wall is defined as a wall that meets the viewing area at a 90° angle. Corner Side Walls (Top View) Alcove Side Walls (Top View) = Building Material The temperature on the side wall can get as high as 150°F above ambient temperature.
-
Page 22: Heat Release
Heat Release A heat release is an opening in the fireplace chase that allows the heat inside the chase to passively circulate into an interior room. This heat is generated convectively as the fireplace heats up. It is separate from exhaust heat produced at the combustion chamber of the fireplace. - Page 23 Vertical Heat Release: Split Front Vertical Heat Release: Full Side The heat release is oriented vertically and split between the two sides The heat release is oriented vertically. Entire heat release of the chase. is on one side of the fireplace chase. Split Front Vertical Heat Release Full Vertical Heat Release on One Side Sprinkler Clearance to Heat Release...
-
Page 24: Air Intake
Air Intake When installing a fireplace with a double glass heat barrier, it is essential to maintain cool air flow between the double glass panels. For this purpose, an opening must be provided toward the bottom of the wall to allow the double glass fans to circulate room air through the glass panels and up into the chase. - Page 25 Air Intake for a Platform NOTE: Please refer to the “Platform” section for details on platform construction.
-
Page 26: Mounting A Tv/Artwork
The decision to install a television above the fireplace is up to the discretion of the owner. TV and art manufacturers may specify that their product should not be installed on, near or above a heat source. Ortal will not be held liable for any adverse effects on a TV, artwork or other equipment located near the fireplace. - Page 27 Recessed TV/Artwork At 12 inches above the fireplace viewing area, maximum possible recess is 3 inches. A deeper recess will interfere with required clearances to venting. Maximum possible recess increases at <12 inches above the viewing area when venting is offset (as shown in diagram below).
-
Page 28: Access Panel
Access Panel An access panel is not required (see notes below for exception), but it is highly recommended. It allows for access to the fireplace’s gas and electrical components for servicing. NOTE: An access panel at the fireplace is required for fireplaces with a power vent to allow access to the power vent control box for servicing. -
Page 29: Chase Area Minimum
Chase Area Minimum To ensure the convective heat within the chase passively moves to the heat release at an optimal rate, all parts of the interior of the chase must at least the same size as the fireplace heat release (see “Heat Release” section to determine your model’s required heat release size) at size at any given point. -
Page 30: Structural Weight Support
The following drawing shows a recommended approach to this type of installation. Please note that these drawings are not to scale. All fireplace drawings with correct dimensions are available on the Ortal website. -
Page 31: Step-By-Step Chase Construction
Material is not required to be non-combustible. Step 2 INSTALL FIREPLACE AND VENTING, RUN GAS AND ELECTRICAL Install the fireplace and venting. This must be completed by an authorized Ortal dealer (unless otherwise authorized by Ortal with written approval). -
Page 32: Finishing
Finishing The following diagrams show various finish applications. Diagrams apply to both combustible and non-combustible finish material. IMPORTANT NOTES: All recessed installations must comply with applicable maximum overhang limit and side wall clearances. See “Maximum Overhang Depth” and “Clearance to a Side Wall” sections for details. No material is permitted to extend past the metal lip surrounding the fireplace viewing area. -
Page 33: Recessed Installation
Recessed Installation Diagram applies to both combustible and non-combustible finish material. The finish must maintain at least a ” clearance to the fireplace. -
Page 34: Venting
Power Vent: a fan-assisted direct vent system that boosts airflow for vent configurations with too much constriction. Review “Vent Configuration Diagrams” section to determine if your fireplace needs a power vent. See the Ortal Power Vent Manual for more details on power venting. -
Page 35: Vent Clearances
Offset Maximum Up to 180˚ of offset (elbows) can be used in the vent configuration. If the vent configuration exceeds this maximum, consider an Ortal Power Vent System, which can allow for up to 540˚ of offset. See the Ortal Power Vent Manual for details. -
Page 36: Vent Configuration Diagrams
The following sections provide information for calculating vent configuration distances. For vent configurations that exceed these maximums, consider Ortal’s Power Vent System. See the Ortal Power Vent Manual for details. NOTE: It is not required to maintain ¼” of rise per foot of venting. - Page 37 Vertical Termination Venting Diagram Use this diagram & tables below to calculate distances for venting runs that jog and terminate vertically. V = V1 + V2 Series 150-170 Series 40-75 Series 110-130 Series 200-250 & Traditional V1 minimum = 3 feet V1 minimum = 3 feet V1 minimum = 3 feet V1 minimum = 6 feet...
-
Page 38: Vent Restrictor Sizing Guidelines
Vent Restrictor Sizing Guidelines SCENARIO A The vent configuration has two vertical 45˚offsets. No additional length for the (H) calculation for the restrictor plate size is needed. For example: Total height of duct work = 6 feet (V) Length between the center of the two 45˚ elbows = (B) = 3 feet The (H) calculation is (H) = (B) so the restrictor plate size is 1.97”, per the table. -
Page 39: Restrictors And Vent Configuration
Restrictors and Vent Configuration The information in this section will help you calculate the correct restrictor selection for your vent configuration. The table below show the restrictor required for a specific rise to run vent configuration. Any venting pathway that does not appear in the tables requires approval from the manufacturer. - Page 40 Recommended Restrictor: Series 110-130 27’ 1.97” 1.57” 1.57” 1.18” 1.18” 24’ 1.97” 1.57” 1.57” 1.18” 1.18” 21’ 1.97” 1.97” 1.57” 1.57” 1.18” 1.18” 18’ 1.97” 1.97” 1.97” 1.57” 1.57” 1.18” 1.18” 15’ 1.97” 1.97” 1.97” 1.57” 1.57” 1.18” 1.18” 1.18” 12’...
- Page 41 Recommended Restrictor: Series 200 27’ 1.97” 1.57” 1.57” 1.18” 1.18” 24’ 1.97” 1.57” 1.57” 1.18” 1.18” 21’ 1.97” 1.97” 1.57” 1.18” 1.18” 18’ 1.97” 1.97” 1.57” 1.18” 1.18” 15’ 1.97” 1.97” 1.57” 1.18” 1.18” 12’ 1.97” 1.97” 1.57” 1.18” 1.18” 1.97”...
-
Page 42: Vent Termination
Vent Termination Horizontal Termination Clearance Diagram Location Country Minimum Clearance Description Clearance above grade, veranda, porch, deck or balcony. US & 12 inches NOTE: On private property where termination is less than 7 feet above a sidewalk, driveway, Canada deck, porch, veranda or balcony, use of a listed cap shield is suggested. ≤... - Page 43 Covered Alcove: spaces open only on one side and with an overhang Horizontal Termination Clearances Continued: Covered Alcove Application Location Country Minimum Clearance Description Clearance under non-vinyl veranda, porch, deck, balcony or overhang. NOTE: Termination in a covered alcove space is permitted with the dimensions specified. 1.
-
Page 44: Vertical Termination Clearance Diagram
Vertical Termination Clearance Diagram NOTE: This chart does not apply to a chimney shroud application. See the “Chimney Shroud” section on the next page for more information. -
Page 45: Chimney Shroud
Chimney Shroud Top Open Keep a minimum 6-inch clearance around the diameter of the cap’s side edge and extending above and below the cap. Sides Open Keep a minimum 6-inch clearance around the diameter of the cap’s side edge, and a minimum 10-inch clearance above the top of the cap. -
Page 46: Vent Maintenance
failure to conform to all installation requirements will void the applicable warranty. This appliance must be properly connected to a venting system in accordance with the Ortal’s installation instructions. Operation of this appliance when not connected to a properly installed and maintained venting system can result in carbon monoxide (CO) poisoning and possibly death. -
Page 47: Vent Configuration
Example of Co-axial to Co-linear Appliance Adapters Example of Co-linear Terminal (BDM) (BDM) Vent Configuration Minimum Vertical Rise: 10 feet (see diagram below) Maximum Vertical Rise: 40 feet (see diagram below) Offsets: Two 45˚ offsets may be used directly on the fireplace with up to a 6-foot section between them. The minimum ... -
Page 48: Gas
The fireplaces are approved for use with natural gas (NG) or propane (LP) only. No other fuel types are permitted. Gas Pressures Inlet Heat Input Manifold Fireplace Burner Burner Pressures Gas Type Pressure (BTU/hr.) Orifice(s) (Inch W.C.) Series Size Type (Inch W.C.) Natural Gas 10.0... -
Page 49: Routing The Gas Line
Routing the Gas Line Correctly size and route the gas supply line from the supply regulator to the area where the access panel is located (or to the burner area if no access panel is available), as per the requirements outlined in the latest edition of the National Fuel Gas Code, NFPA 54 (USA) or CAN/CSA-B1491 (Canada). -
Page 50: Gas Conversion
Gas conversion (NG to LP or LP to NG) can be done in the field. Gas conversion must be performed only by technicians who have specific authorization by Ortal to change these components. The conversion kit must be supplied by Ortal. Using parts from other manufacturers or having an unauthorized party performing the conversion will void your fireplace’s warranty. -
Page 51: Electrical
Electrical WARNING: Disconnect the power supply before servicing any electrical components. Electrical Requirements A duplex receptacle with two outlets (not included) must be installed in the location where the gas and electrical components will be placed, which must be to the side or back of the fireplace within 36 inches of the pilot (see diagram in “Routing the Gas Line” section). Electrical work should be performed by a qualified licensed electrician, per local code. -
Page 52: Wiring Diagrams
Wiring Diagrams The following diagrams show the electrical wiring required for different feature combinations. Wiring Diagram: Screen Fireplace... - Page 53 Wiring Diagram: Screen Fireplace with Interior Lighting...
- Page 54 Wiring Diagram: Screen Fireplace with Interior Lighting and Ortal Power Vent...
- Page 55 Wiring Diagram: Double Glass Fireplace...
- Page 56 Wiring Diagram: Double Glass Fireplace with Interior Lighting...
- Page 57 Wiring Diagram: Double Glass Fireplace with Interior Lighting and Ortal Power Vent...
-
Page 58: Carbon Monoxide Detector Wiring Diagrams
Carbon Monoxide Detector Wiring Diagrams CO Kit Wiring Diagram: Screen Fireplace... - Page 59 CO Kit Wiring Diagram: Double Glass Fireplace...
-
Page 60: Home Automation Wiring Diagram
Interior Design Media Ortal offers interior media options such as stones, glass, logs and embers that can provided with the fireplace. This section provides guidelines for safe placement of media. It is crucial that the placement guidelines outlined below are followed as a large portion of flame quality issues are caused by improper media setup. -
Page 61: Media Placement Guidelines
Media Placement Guidelines When installing media, adhere to the following general guidelines: Keep the media back from the pilot hood so at least one burner port is open. Crowding around the pilot hood may hinder lighting and could result in potential damage to the fireplace and surrounding area or personal injury. Do not use the hood to support media. -
Page 62: Log Media Placement
Log Media Placement NOTE: This section does not apply to Wilderness series fireplaces. Please see separate model-specific Log Placement Guide for details. This will be included with the Wilderness fireplace log set. Place the logs carefully to block as few ports as possible. If a log is placed over a port, block the port with a “coin” to keep ... -
Page 63: Operation
Operation WARNING – Read these instructions carefully before lighting the fireplace. IMPORTANT NOTES: Wiring of valve and receiver must be completed before starting ignition. Failure to do so could damage the electronics. If operating the fireplace without an AC adapter, battery replacement is recommended at the beginning of each heating ... -
Page 64: Wall Switch
Turning the Fireplace Off 1. Press the button to turn the fireplace off. NOTE: The fireplace may be turned on again after the OFF icon stops flashing. Flame Height Adjustment 1. To increase flame height, press and hold the button to desired flame height. 2. -
Page 65: Myfire App
Flame Height Adjustment INCREASE: To increase flame height, press and hold (up flame) button. DECREASE: To decrease flame height, press and hold (down flame) button. Holding the (down flame) button long enough sets the fireplace to pilot flame (Standby Mode). myFire App IMPORTANT: For safety/communication purposes, the 10-button handset must be located within 26 feet of the receiver. -
Page 66: Fireplace Maintenance
Submerged Parts Do not use the fireplace if any part has been under water, or if you suspect that it may have been under water. The Ortal dealer service technician must inspect and, if necessary, replace any parts of the control system and any gas controls which have been under water. - Page 67 © Ortal 2021 Version 3, March 2021 SKU: KPMANUALUS3.0 Ortal USA 8421 Canoga Ave Canoga Park, CA 91304 T: (818) 238-7000 | F: (818) 678-0541 info@ortalheat.com | www.ortalheat.com...
