norix TNT1X1X Assembly Instructions

www.norix.com ● TEL 800 234-4900
Assembly Notes:
Norix is not responsible for any damage due to improper installation. If your shipment does not match the parts list, please contact Norix Customer Service at 800-234-4900.
Norix reserves the right to modify design specifications at any time without an obligation to owners of previously sold products.
___________________________________________________________________________________________________________________________________________________________________________________________________
ITEM QTY. PART NUMBER
A 1
TNT1X4X
B 2 036-T001-XX
C 8 021-101/021-102
C 8 021-116/021-007
D 8 025-011/025-030 Washer, Lock, 5/16
E 8 026-006/025-031 Washer, Flat, 11/32 ID X 3/4 OD X 0.050
Recommended tools:
For non-security hardware: A 3/16" ball-end hex driver.
A T-handle ball-end hex driver makes this installation easy
(available from McMaster-Carr, part no. 37095A52).
--OR--
A 1/4" drive ratchet wrench and socket extension that is 6" or
longer. A longer extension (10" or 12") makes the job easier.
A flexible bit driver (McMaster-Carr part no. 85255A13) can
be used with a drill, but is not necessary.
1. If bed has drawers, remove the drawer closest to the end
of the bed. A T45 Pin-in-Torx Driver must be used to extract
drawer stop hardware.
2. Tip the bed on its side. Place a corner protector from the
packaging underneath at each end to elevate the ends of the bed.
The protectors should be folded so that they are double thickness. If
the protectors have been discarded, use any spacer that is about 3/8"
thick, ensuring that the bed does not get scratched.
Flattened corner
Rev. D - 4/26/16
protector underneath
091-717

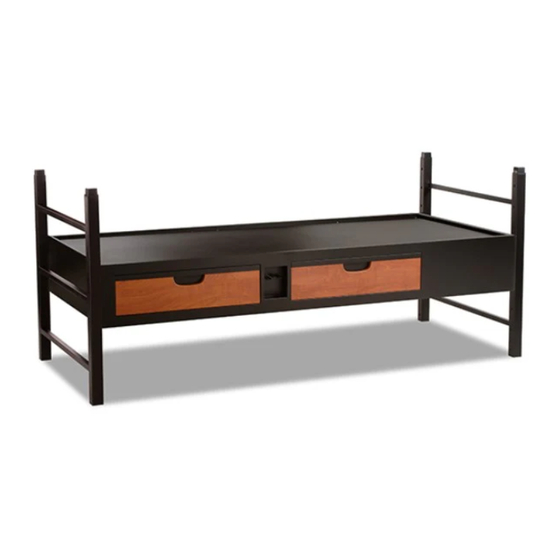

Titan Bunkable Panel Bed
Assembly Instructions
Parts List
DESCRIPTION
Panel Bed
Bunkable Steel End Frame
Standard: Screw 5/16-18 X 1.5 L, Hex Skt, Btn Head
(Zinc/Blk)
Security: Screw 5/16-18 X 1.5 L, Btn Hd, T40 Pin-in-Torx
(Zinc/Blk)
Model Number
TNT1X1X
3/16" Ball-End Hex Driver - shown full size
Ratchet & Extension
Tools Needed
Non-secure hdw.: 3/16 Ball-End Hex
Driver
Secure hdw.: T-40 Pin-in-Torx Driver
T-45 Pin-in-Torx Driver (unit with
drawers)
Optional: Variable speed drill
See below for additional
recommended tools
T-Handle Ball-End Hex Driver
McMaster-Carr 37095A52
Socket Extension
Flexible Bit Driver
McMaster-Carr 85255A13
Corner Protector
from packaging
Page 1 of 2
