norix TNT1853-0000XXT Assembly Instructions

www.norix.com ● TEL 800 234-4900
Assembly Notes:
Norix is not responsible for any damage due to improper installation. If your shipment does not match the parts list, please contact Norix Customer Service at 800-234-4900.
Norix reserves the right to modify design specifications at any time without an obligation to owners of previously sold products.
___________________________________________________________________________________________________________________________________________________________________________________________________
ITEM NO. QTY PART NUMBER
A 2 036-T101-XX
B 1 036-T201-XX
C 1 036-T105-XX
D 1 050-T101-XX
E 1 037-T005-XX
F 12 025-030
G 16 025-031
H 12 021-102
I 10 021-125
J 2 021-104
K 2 036-269
L 2 036-268
M 1 071-014
N 4 021-115
O 4 025-018
This product requires two people for assembly
Step 1: Line the support frame (B) to the
tall end frames (A) to the desired height flush
to the end frame rails. Secure 1 end of the
support frame to the tall end frame using
(2) 5/16 Screws (H), (2) Lock Washers (F)
and (2) Flat Washers (G). Repeat for other
tall end frame.
Step 2: Insert the support channel front (C) to tall
end frames as shown. The support channel should
line up to the same height to the support frame.
Secure the channel using (2) #10 Self drilling screws (J)
to the end frame.
Rev. B - 3/7/14
091-804

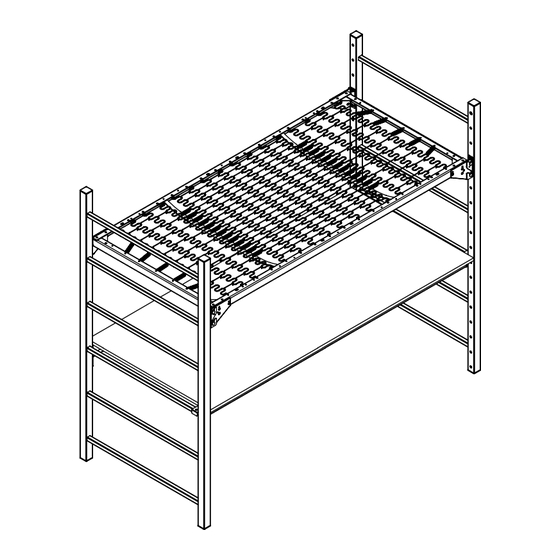

Titan Loft Bed, Spring Deck, Tall
End Frames & Spanner Desk
Assembly Instructions
PARTS LIST
Tall Steel End Frame
Support Frame, Loft Bed
Support, Channel Front, Loft Desk
Panel, Loft Desk
Deck Spring Bunk Titan 81 x 37.50 Wedge Lock
Lock Washer, 1/2" Split, Black Oxide
Washer, Flat, 11/32" ID X 5/8" OD x 0.083" THK Black Oxide
Screw, 5/16-18 X 1-1/2 Button Head, Hex, Black Oxide
Screw, Wood, #8 X 5/8" L,Pan Head, Phillips Head, Black Oxide
Screw, Self-Drilling, #10-16 X .625" PH, SQ, Blk. Ox.
Wedge Lock Hook, Right, Spring Deck
Wedge Lock Hook, Left, Spring Deck
Hex Bit, 3/16"
Screw, Machine 1/4-20 x 3/4 L, BH, Hex Socket Cap, Black
Nut, Hex, 1/4-20 Centerlock, Zinc
FLUSH WITH EACH OTHER
H
G
F
J
Model Number
TNT1853-0000XXT
DESCRIPTION
Tools Needed
Variable Speed Drill
Philips Head Driver
A
B
C
Page 1 of 3
