norix Titan TNT1620-0L T Series Assembly Instructions

www.norix.com TEL 800 234-4900
Assembly Notes: Norix is not responsible for any damage due to improper installation. If your shipment does not match the parts list, please contact Norix Customer Service at 800-234-4900.
Norix reserves the right to modify design specifications at any time without an obligation to owners of previously sold products.
ITEM PART NUMBER
QTY
A 2 037-T001-XX
B
2 030-T006-XX
C 2 030-T007-XX
D 2 030-T011-XX
E 4 036-T103-XX
F 4 036-261-XX
4
G 029-T005-XX
H 2 029-T007-XX
I 44 021-101 / 021-102
I 44 021-116 / 021-007
J 10 021-108
J
10 021-119
K 10 021-107 / 021-115
K 10 021-077 / 021-062
L 36 025-011 / 025-030
M 56 026-006 / 025-031
N
1 071-014
N 1 071-002
N 1 071-001
Step 1. Assemble the End Frames (E) and
Bed Pan (A) and secure it using (2) 5/16-18 x
1.5 Screw (I), (2) 5/16 Lock Washers (L), and
(2) Flat Washers (M) on each corner of the
Pan. Leave (4) holes open at top of End
Frame for attaching Head/Foot boards and
Bunk Clamps in a later step.
Fasten hardware securely.
Repeat assembly for the other bed pan and
end frames.
Rev. B - 4/24/14
091-821

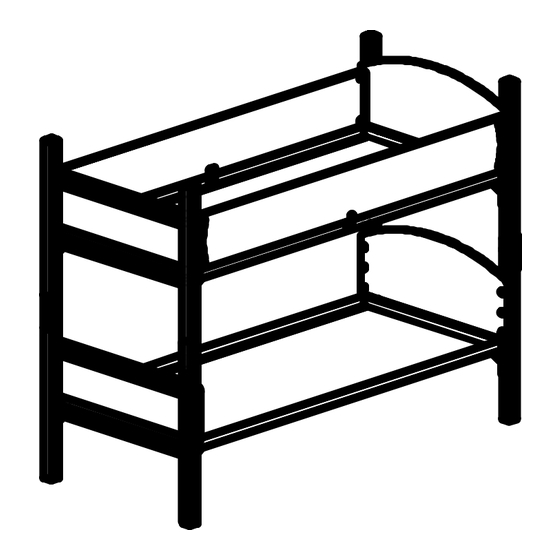

Titan Bunkable Bed W/Head and Foot Board
Parts List
DESCRIPTION
Bunk Pan, KD, Titan 80 X 36
Headboard, Short
Footboard, Short
Side Rail, Tall, HPL
Steel End Frame, Titan, Bunkable, CPSC
Bunk Clamp, Titan
Bracket, Side Rail, Tall
Bracket, Titan, Center, HPL Bed Rails
Standard: Screw, 5/16-18 X 1.5 L, Btn Hd, Hex Skt (Zinc / Black)
Security: Screw 5/16-18 X 1.5 L, Btn Hd, Torx Pin (Zinc / Black)
Standard: Screw 1/4-20 X 3/4" L, BH, Cross Slot, Female
Security: Screw 1/4-20 X 3/4" L, BH, S-Torx, Female
Standard: Screw, 1/4-20 X .75, Recessed Hex Socket Cap, (Zinc / Black)
Security: Screw, 1/4-20 X .75, Torx Pin (Zinc / Black)
Washer 5/16 Lock (Zinc / Black)
Washer, Flat, 11/32 ID (Zinc / Black)
Hex Bit, 3/16
Pin in Torx Bit, T-40
Pin in Torx Bit, T-27
Assembly Instructions
Model Number
TNT1620-0LXXXXT
E
Tools Needed
Low RPM Variable Speed Drill
3/16" Hex Driver OR T-40
5/32" Hex Driver OR T-27
Driver Extension
Philips Head Screwdriver
7/16" Wrench
I
L
M
A
Page 1 of 3
