www.norix.com ● TEL 800 234-4900
Assembly Notes:
Norix is not responsible for any damage due to improper installation. If your shipment does not match the parts list, please contact Norix Customer Service at 800-234-4900.
Norix reserves the right to modify design specifications at any time without an obligation to owners of previously sold products.
___________________________________________________________________________________________________________________________________________________________________________________________________
Important Note: For a successful installation, careful and accurate
layout of the anchor brackets is a must. Read through the
instructions first and familiarize yourself with all of the steps. If you
have any questions, please call Norix Customer Care before
proceeding. Norix is not responsible for damage to components
due to improper installation.
Security Caulk is highly recommended to help seal gaps and
secure the furniture in place. Apply caulk to clean surfaces.
Anchor hardware: Please familiarize yourself with the anchoring components as shown below.
If any components are missing, contact Norix Customer Care before proceeding.
Floor Anchor Bracket (2)
011-058
Drill Guide, Pin (1)
011-063
Concrete Anchor,
5/16" X 2" L (4)
024-024
Rev. B - 10/30/20
091-993

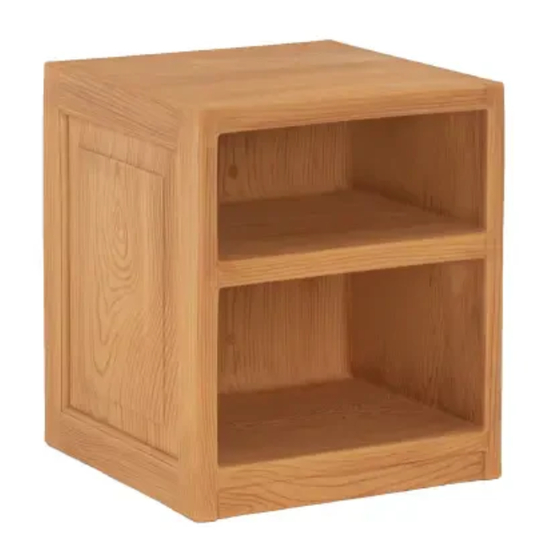

Prodigy Nightstand
Assembly Instructions
Model Number
PRD240
Anchor Tab, Straight (2)
011-059
5/8" Drill Bit (1)
029-944
Guide Tube (2)
029-941
Patents Pending
Low RPM Variable Speed Drill
Pin-in-Torx® Driver Bit T-40 (provided)
Anchor Hook, Left (1)
011-067
Screw, 5/16-18 X 5/8" L, BH (2)
Shim (4)
060-197
Pin Extractor Tool (1)
011-066
Tools Needed
Hammer Drill
5/16" masonry drill bit
5/8" Drill Bit (provided)
Anchor Hook, Right (1)
011-068
021-118
Ball Lock Pin (2)
002-027
Page 1 of 9
Advertisement
Related Manuals for norix PRD240
Summary of Contents for norix PRD240
- Page 1 Assembly Notes: Norix is not responsible for any damage due to improper installation. If your shipment does not match the parts list, please contact Norix Customer Service at 800-234-4900. Norix reserves the right to modify design specifications at any time without an obligation to owners of previously sold products.
- Page 2 The procedure for a corner installation is different from a mid-wall installation. These will be shown separately. See page 6 for corner Installation. Nightstand Mid-wall installation: Note: In a mid-wall installation, the Left and Right open areas Anchor Hooks will not be used. Both Ball Lock Pins and Guide Tubes will be used.
- Page 3 6. Carefully measure 3" inward from the first line Make new lines and mark a second line. Repeat on the other side. 3'' inward 3" 7. Place Floor Anchor Bracket with holes centered on centerline as shown, and vertical face aligned with the line as shown.
- Page 4 10. Install Anchor Tabs on the Nightstand Install (2) Straight Anchor Tabs where shown, using (2) 5/16" Screws. 5/16" X 5/8" L Screw Straight Anchor Tab 11. Install Guide Tube Insert the Guide Tubes into the drilled hole on each side. Guide Tube Rev.
- Page 5 12. Set Nightstand in Place WALL Turn the Nightstand upright and position in place over the Floor Brackets. Slide the Nightstand to Floor Bracket engage the Anchor Tabs with the Floor Brackets. Anchor Tab WALL Tab engaged under Floor Bracket 13.
- Page 6 Corner Installation: 1. Marking the Location Place the Nightstand on the floor in an upright position in the corner location where it is to be installed. 2. Mark a line on the floor along the exposed side of the Nightstand, toward the center. Molded line on Nightstand 3.
- Page 7 7. On the side that will be exposed, carefully measure 3" inward from the first line and mark a second line. 3" Exposed end: 3" 8. Place the Floor Anchor Bracket so that the holes are centered on the centerline as shown, and the vertical face is aligned with the inward line as shown.
- Page 8 10. Install Floor Anchors and Brackets If floor anchors other than the provided Concrete Wedge Anchors are to be used, consult the manufacturer for proper installation. If the provided Concrete Wedge Anchors are to be used, drill (4) 5/16" dia. holes a minimum of 1" deep into the floor at the locations where previously marked.
- Page 9 13. Install Guide Tube Insert the Guide Tube into the drilled hole in the side. 14. Set Nightstand in Place Guide Tube Place the upright Nightstand over the brackets and slide the Nightstand in place at an angle, ensuring that the Hook Tab engages the Floor Anchor Bracket first.
