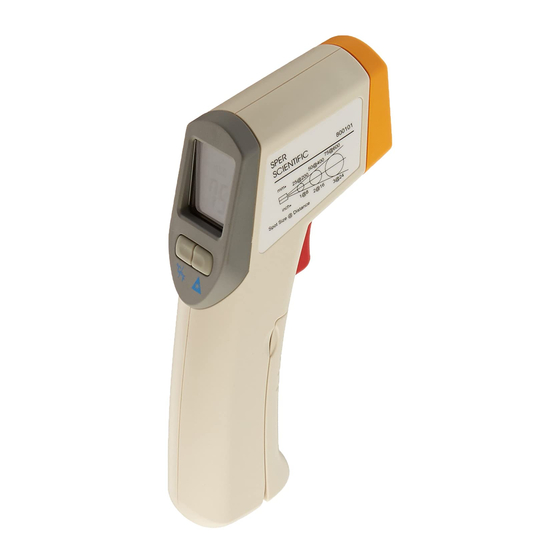

- Page 1 I/R Thermometer Gun 8:1 800101, 800102 INSTRUCTION MANUAL SPER SCIENTIFIC...
- Page 2 Contents Page 1. INTRODUCTION ........2 2. SAFETY SPECIFICATIONS .......3 3. DISPLAY AND BUTTON LOCATIONS ..4 4. BATTERY REPLACEMENT .......5 5. MEASURING PROCEDURE ......5 6. CLEANING ..........5 7. NOTES ............6 8. SPECIFICATIONS ........7 9. WARRANTY ..........8 1. INTRODUCTION Simply hold the IR gun, press the trigger and aim the laser guide at the target.
- Page 3 SAFTEY SPECIFICATIONS Conforms to the following standards. • EN61326: Electrical equip. for measurement/control/labs. • IEC61000-4-2: Electrostatic discharge immunity test. • IEC61000-4-3: Radiated, radio freq. electromagnetic field immunity test. • IEC61000-4-8: Power freq. magnetic-field immunity test. • CFR 1040.10 subchapter J Class II Laser Product Tests were conducted using a freq.
- Page 4 3. DISPLAY AND BUTTON LOCATIONS 1. Trigger 2. Laser Guide 3. IR Sensor Distance to Spot: 8:1 4. Battery 5. Low Battery Indicator 75@600 6. Laser Guide On/Off Indicator 25@20 50@40 7. Temperature Display 8. C/F Button 9. Scan/Hold Indicators inch 10.
- Page 5 4. BATTERY REPLACEMENT • Replace the battery when the Low Battery Indicator (5) is displayed. • Open the battery cover, install a fresh 9V battery and close the cover. Battery life expectancy is 16 hours. 5. MEASURING PROCEDURE • Point the IR Gun at the object to be measured. •...
- Page 6 7. NOTES • Emissivity is the ability of an object to emit or absorb en- ergy. Your IR Gun measures emitted energy using a fixed emissivity value of 0.95 (which covers about 90% of typical applications). When measuring highly reflective surfaces, apply masking tape to the surface or a paint that has a 0.95 emissivity.
- Page 7 8. SPECIFICATIONS Model 800101 800102 -4~605°F -4~930°F Range -20~320°C -20~500°C ±2°C (±3°F) ±2% of reading or from –20~100°C Accuracy ±2°C (±3°F) at 25°C (-4~212°F) whichever is greater ±2% from 100~500°C (212~930°F) Resolution 0.5°C/F 0.2° C/F D:S Ratio Thermopile 5~14µm Repeatability ±2°F (±1°C)
- Page 8 9. WARRANTY Sper Scientific warrants this product against defects in materials and workmanship for a period of 5 years from the date of purchase, and agrees to repair or replace any defective unit without charge. If your model has since been discontinued, an equivalent Sper Scientific product will be substituted if available.
